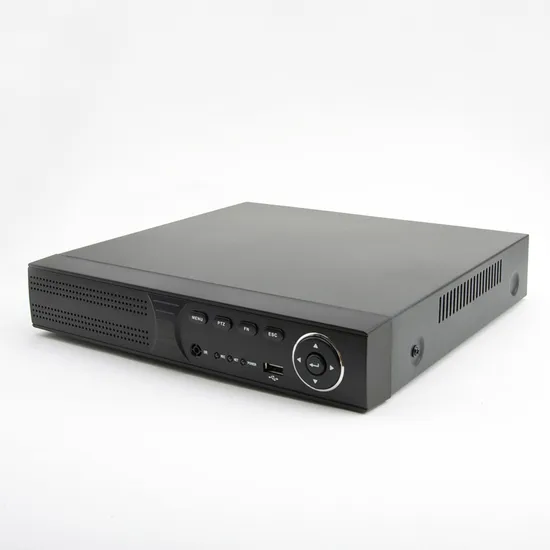

16CH Competitive Price H. 264 Hybrid HD CCTV Digital Video Recorder Mobile Car DVR Surveillance Ahd Camera System
| US$38.00-40.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
HG-XVR2MN1H16
Compressed Format
H.264
Operating System
Linux
Application
Commercial DVR
Interface Type
BNC/VGA/HDMI
Video Input/Output
16 Channel
Audio Input/Output
1 Channel
Remote Control
With Remote Control
SATA
8tb X 1
Hybrid Mode
Ahd+Tvi+Cvi+CVBS+IP
Utc
Coaxial Control
PTZ
Yes
Alarm
1 Channel
Resolution
2MP 1080n
WiFi/3G4g
N/a
Transport Package
Neutral Packing
Specification
335*255*50 mm
Trademark
HICOTEK/OEM/ODM
Origin
China
HS Code
8525909090
Production Capacity
5000PCS/Month
Product Description
Features:16CH 1080N 5-IN-1(TVI/AHD/CVI/CVBS/IP) Hybrid DVR
Video Preview: 16CH Mixed 2MP~5MP Cameras Input
Video Output: 1x HDMI,1x VGA,1x CVBS
HDD: 1 SATA, MAX 6TB
| Model NO. | HG-XVR2MN1H16 |
| XVR System | |
| Type | 16CH 1080N 5-IN-1 DVR |
| Compression Method | H.264 |
| Main Processor | 3521A_4*6134C_4G |
| Operating System | Embedded LINUX |
| HDD | 1 SATA, MAX 6TB |
| Display & Recording | |
| Video Input | 16CH |
| Encode Capacity | 1.AHD / TVI / CVI:16CH 1080N@25fps recording, 2.HVR:12CH 1080N@25fps Analog + 4CH 1080P@25fps IP recording 3.HVR:8CH 1080N@25fps Analog + 8CH 1080P@25fps IP recording 4.HVR:4CH 1080N@25fps Analog + 12CH 1080P@25fps IP recording 5.NVR:16CH 960P@25fps IP recording 6.NVR:4CH 5MP@25fps or 4CH 3MP@25fps IP recording |
| Search Mode | Time, Date, Alarm, Motion Detection, Exact Search |
| Playback Mode | Normal Play, Fast Forward, Fast Rewind, Frame by Frame, Zoom In /Out |
| Playback & Backup | |
| Decode Capability | MAX 16CH |
| Sync Playback | 1.AHD / TVI / CVI:4CH 1080N@15fps playback or 16CH 1080N@12fps 2.HVR: 2CH 1080P@25fps playback 3.HVR: 2CH 1080P@25fps playback 4.HVR: 2CH 1080P@25fps playback 5.NVR:4CH 960P@25fps playback 6.NVR:4CH 5MP@25fps or 4CH 3MP playback |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection |
| Playback Functions | Play, Pause, Stop, Fast play, Rewind |
| Backup Mode | USB Device/DVD/CD/Network |
| Video | Alarm | Audio | |
| Video Output | 1x HDMI,1x VGA,1x CVBS |
| Audio IN/OUT | 1CH |
| Alarm IN/OUT | 1CH |
| Network | |
| Interface | RJ45 Port / 10M / 100M Adaptive IP Address ; TCP/IP, DHCP, UDP, SMTP, NTP |
| CMS Software | Support |
| Cloud Support | iCloud Software one‐click online; Support IE Firefox Google Chrome Mac OS Safari |
| Language | 28 kinds of Languages |
| Smart Phone | Iphone, Ipad, Android, Android Pad |
| General | |
| Voltage | DC 12V |
| USB Port | 2 USB2.0 |
| PTZ | Pelco-D, Pelco-P |
| RS485 | YES |
| Size | 255*235*50 mm |
| Weight | 5.0 Kgs (Without HDD) |
