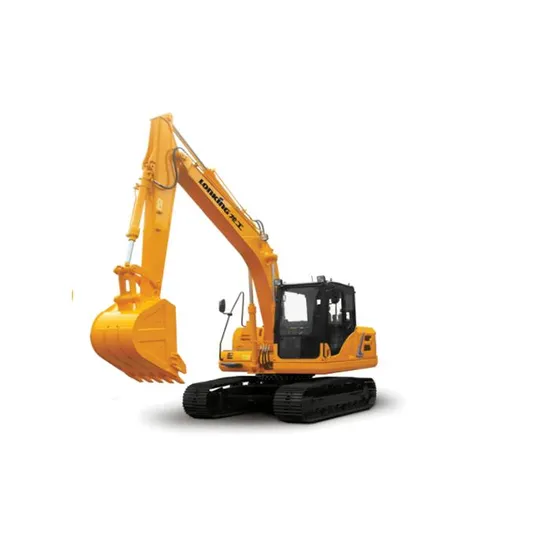

New Trend 8.6ton Cdm6085e Lonking Excavator

Product Description

Detailed Photos
Product Parameters

Model		CDM6085E
General	Operating weight( kg)	8600
	Standard bucket(m³)	0.36
	Bucket range(m³)	0.1-0.42
	Ground pressure(kPa)	37
	Travel speed(km/h)	2.8/4.5
	Swing speed (rpm)	11.69
	Gradeability	35° (70%)
Engine	Model	Yanmar 4TNV98T(Euro IIIA)
	Rated power(Kw(hp)/rpm)	54.1(73.8)/2200
	Displacement (L)	3.319
	Fuel tank(L)	136
Hydraulic System	Max.pressure of Implements(MPa)	27.4
	Max. flow of system( L/min)	74.8x2
	Hydraulic oil tank(L)	94
Working Device	Boom length(mm)	3720
	Arm length(mm)	1665
	Bucket radius(mm)	1040
Digging Force	Max. arm digging force (SAE/ISO)(kN)	38/44
	Max. bucket digging force (SAE/ISO)(kN)	56/64

Packaging & Shipping
We supervise the process from the factory to the port designated by the customer to ensure that the customer's products arrive at the destination accurately and safely. Our Advantages
Every year, we regularly attend the Canton Fair, the Philippines, Indonesia, Russia and other construction machinery and building machinery exhibitions.We have received more than 1000 clients and training engineers from more than 100 countries around the world.
We have already exported our products to more than 80 countries and regions, including: Africa, the Middle East, South America, Central Asia, Russia, Mexico, Australia, New Zealand, Holland, British, Mongolia and so on.


After Sales Service

we are famous building machinery manufacturer, professional construction machinery exporter and one stop solution supplier in China, our team have more than 15 years experience in this field already.
(1)Warranty:Every product issued shall enjoy a one-year/2000 working hour warranty period, during which we will repair or replace the defective parts free of charge if material or process defects occur and spare parts are in normal working condition.
(2)Spare parts:CANMAX is dedicated to provide our clients with genuine spare parts with the highest quality,exact fitness and appropriate function.with our global distributor network,you are guaranteed with fast deliveries and services, wherever you are,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately.
(3)Installation & Maintenance:CANMAX is able to provide with the overall installation of complicated machinery,allowing you to start the normal operation of construction machinery solutions.After installation,we will make inspection of the whole machine,operate equipment,and provide you with testing data reports of installation and operation.
(4)Training:CANMAX offer perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other training, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.
(5)Technical Advice: CANMAX can also help customers to coordinate with trained service personnel and provide you with detailed and extensive knowledge. Through our technical advice, your machine life can be significantly extended and sustained high capacity.

FAQ
Q1:Which country do you export to?
Asia:India,Philippines,Thailand,Burma,Vietnam,Bangladesh,Kazakhstan,Turkmenistan,etc.
Middle east:Saudi Arabia,UAE,Jordan,Oman,Syria,Pakistan,etc.
Europe:Russia,Ukraine,Belarus,Bulgaria,etc.
Africa:South Africa,Kenya,Congo,Ethiopia,Nigeria,Ghana,Algeria,Senegal,Tunisia,etc.
South America:Brazil,Peru,Chile,Cuba,Mexico,etc.
Oceania:Papua New Guinea,Australia,etc.
Q2:What is the proportion of your products export?
75% of our products are exported to all over the world.
Q3:What is the payment term?
Payment term is negotiable and there will be favorable payment terms for long-term customers.TT,L/C,D/P,depending on the cooperation time,country and contract value.
Q4:What kind of logistic service do you supply?
FOB,CIF,DAP,ETC.
Q5:What spare parts can you supply?
All kinds of spare parts of xcm g,shantu i,zoomlion,sinotruck,shacman,liugong,san y,sdl g,lonking,xgm a,etc.
