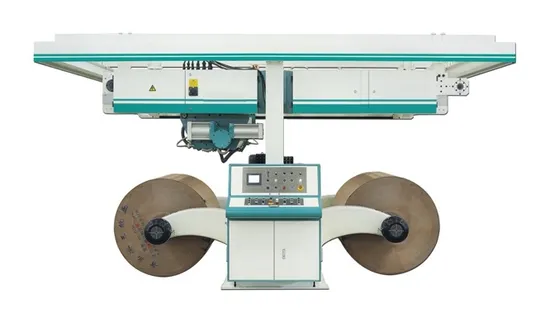

Automatic Paper Splicer, Hydraulic Shaftless Mill Roll Stand, for Corrugated Cardboard Production Line

Product Description

Auto Splicer Features:
Improving the efficiency of mill roll and mill roll can be fully used up
Zero tail splicing, the sticking area is quite small which can reduce the consumption
Non-stop slicing which can increase the working efficicency dramatically
Automatic tension control which indicates the advantages of easy operation and humanization
Simple and quick through structure which indicates the advantages of easy operation and humanization
Special design flatenning technology which can eliminate the wrinkle phenomenon dramatically
PLC control with high automation integrated level
Technical parameters:
The maximum width: 1400, 1600,1800,,2200,2500mm
The maximum splicing speed: 150-250m/min (based on the paper quality)
The maximum diameter of mill roll: 1500mm
Suitable paper: 70~350g/m2
The minimum strength of extension: 3 N/mm (based on the paper quality and its tension level)
Tension control range: 5~100kg
3/5/7-layer Corrugated Cardboard Production Line 1) WJ-I/II/III 3/5/7-layer Corrugated Cardboard Production Line consists of the following machines, Electrical Shaftless Mill Roll Stand, Single Preheater, Fingerless type Single Facer, Overhead Conveyor Bridge, Duplex Preheater, Duplex Gluer, Double Facer, Lift-down Thin Blade Slitter Scorer, NC Cut-off, Right-angle Conveyor & Stacker, etc.
2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 3/5-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for corrugated carton box factories.

Max Effective Width	1100~2200mm
Max Paper Roll Diameter	1500mm
Max Paper Roll Weight	3000kg
Corrugating Roller	Φ280~405mm, 48CrMo alloy steel, hardness HRC58°-60°
Min Slitting Width	150mm
Cutting Length	500~9999mm
Design Speed	100~200m/min
Heating Method	Steam Heating
Economic Working Speed	80~160m/min
