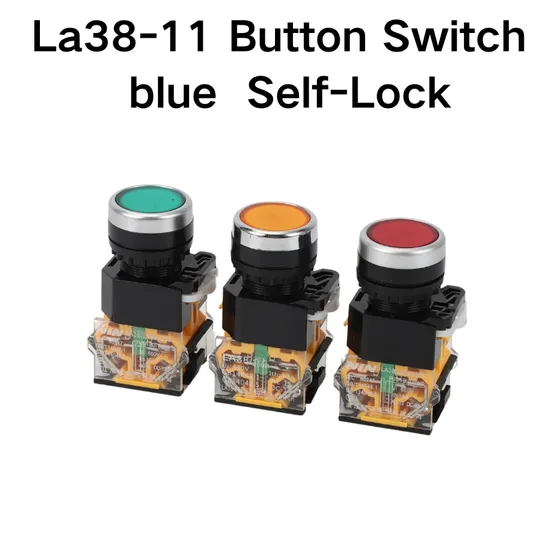

La38-11 Blue Push Button Switch Power Start Stop Self-Lock Key Reset Without Light Button Switch

Product Description

Basic Info.

Lamp Color:	red/ green /yellow /blue /white/orange/others
Usage	Start Button, Change-over Switch, Control Switch
Product name	Pushbutton Switch
Terminal Types:	Pin terminals or wired lead
Housing Material:	Plastic or metal

Product Description
Product Description
Model : LA38-22D-11
Mechanical Life: Equal to or Greater Than 3*106
Rated Thermal Current: Lth 10A
Mounting Dimension: 22.3mm(Diameter)
Colors Available: Red, Green, Yellow, Blue, White, Black
Ambient Temperature: Minus 25~55centigrades
Feature: Flat
Type: Composite
Power Frequency Withstand Voltage: 2.5kv 1min
Electrical Life: Equal to or Greater Than 60*104
Rated Insulation Voltage: Ui AC660V
Contact Material: Silver Alloy Contact
Protection Degree: IP65
Self Locking/Self reset:
Self Locking:After press,button will down,and press again,button will bounce to original position
Self Reste:After press,it will bounce right now when it left button.
With light/without light button:
Self-locking button with light:The modle with ligh have four voltage: DC12/DC24V;AC220V/380V
Button without light:No voltagee requirement
