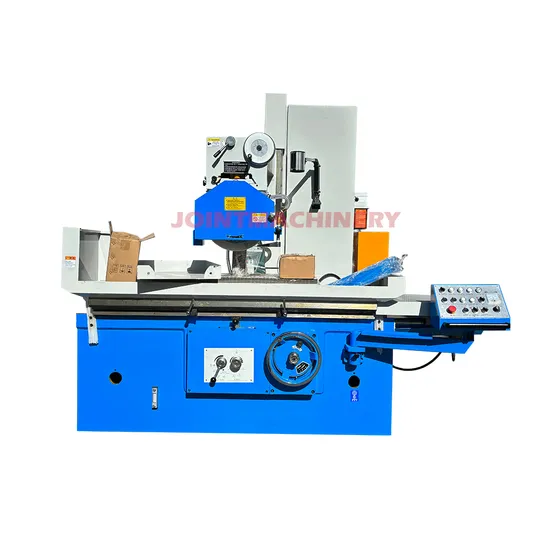

Hydraulic Grinding Equipment Automatic Horizontal Surface Grinding Machine with Metal

Product Description

1. Revolutionize your grinding potential with the Advanced Surface Grinder, engineered to broaden your work surface capabilities. Seamlessly accommodate larger workpieces and enjoy unmatched versatility and efficiency across all your grinding operations. Elevate your production to new heights.
2. Be amazed by the ingenious design of the movable grinding head structure, skillfully uniting the front and rear sections into a seamless, cohesive unit. This integration offers exceptional rigidity and stability, ensuring your operations are executed with unparalleled precision and reliability.
3. Harness the power of hydraulically driven movements, where the worktable's longitudinal and the grinding head's lateral movements feature stepless speed regulation. Customize the lateral feeding to your exact specifications, selecting between manual or fully automated options for ultimate precision and adaptability.
4. Delight in the simplicity of the grinder's vertical feed, manually operated yet equipped with an innovative quick lifting mechanism. This advancement significantly reduces labor intensity, elevating user comfort and maximizing operational efficiency to new levels.
5. Marvel at the engineering masterpiece of the grinding head, featuring a tapered sliding bearing and a spindle that offers remarkable rigidity and precision. Powered by a robust 7.5kw motor, this machine ensures efficient and powerful grinding operations to meet even your most demanding requirements.
6. Appreciate the user-centric design of this machine tool, boasting silky smooth operation and low noise levels. Achieve high grinding efficiency with superior performance, establishing this machine as the top choice for precision tasks.
1. Precision Grinding Head
Elevate your operations with this meticulously designed manual grinding head, featuring a rapid lifting mechanism and a powerful built-in motor. Engineered for exceptional rigidity and precision, it guarantees that your grinding results reach new heights of excellence.
2. Efficient Electromagnetic Chuck
Increase your productivity with the intuitive electromagnetic chuck, crafted for seamless operation. Capable of continuous use for over 20 hours, it is the ideal choice for high-demand tasks, optimizing both time management and productivity with ease.
3. Premium Metal Hand Wheel
Achieve precision with the high-accuracy metal feed handwheel, offering effortless control and precision with an astounding accuracy level of 0.002MM. Its superior grinding model redefines precision engineering, delivering top-tier performance every time.
4. Advanced Double V Guide Rail
Enjoy unparalleled precision with the innovative double V guide rail, expertly paired with a single V flat guide rail laterally and hydraulic drive. This combination guarantees extraordinary precision and reliability, enhancing the machine's consistent performance.
5. Durable Resin Sand Cast Iron Body
Experience the ultimate in stability and strength with our expertly crafted resin sand cast iron body. Enhanced by artificial aging treatment, these castings ensure dimensional accuracy, delivering perfect finishing and precision even for the most rigorous applications.
Hydraulic Grinding Equipment Automatic Horizontal Surface Grinding Machine with Metal

Model		Unit	M7163x12	M7163x16	M7163x20
Worktable size		mm	630*1250	630*1600	630*2000
Maximum grinding size		mm	630*1250*600	630*1600*600	630*2000*600
Longitudinal movement of worktable (hydraulic)		mm	200-1350	200-1700	200-2100
Worktable speed (stepless speed)		m/min	5-25	5-25	5-25
No. of T-slots on worktable		pcs	3	3	3
Width		mm	18	18	18
Worktable load (including electronic chuck)		kg	980	1200	2000
Electronic chuck size		mm	630*1250	630*800 (2pcs)	630*1000 (2pcs)
Grinding head transverse feed (stepless speed)
Continuous		mm/min	0.8-3	0.8-3	0.8-3
Intermittent		mm/pcs	5-25	5-25	5-25
Vertical handwheel minimum scale		mm	0.01	0.01	0.01
Vertical feed of grinding head per hand wheel rotation		mm	0.5	0.5	0.5
Grinding wheel size		mm	400*50*203	400*40*203	400*50*203
Total capacity of electrical equipment		kva	15	16	20
Grinding head motor
Power		kw	9	9	9
Speed		r/min	1440	1440	1440
Parallelism of machined surface to base surface		mm	300:0.008	300:0.008	300:0.008
Workpiece surface roughness		μm	Ra0.63	Ra0.63	Ra0.63
Machine tool dimensions		mm	3800*2100*2500	4700*2100*2500	5600*2100*2500
Packing size		mm	4010*2300*3000	4600*2300*3000	5200*2300*3000
Net weight		kg	5500	6500	7500
