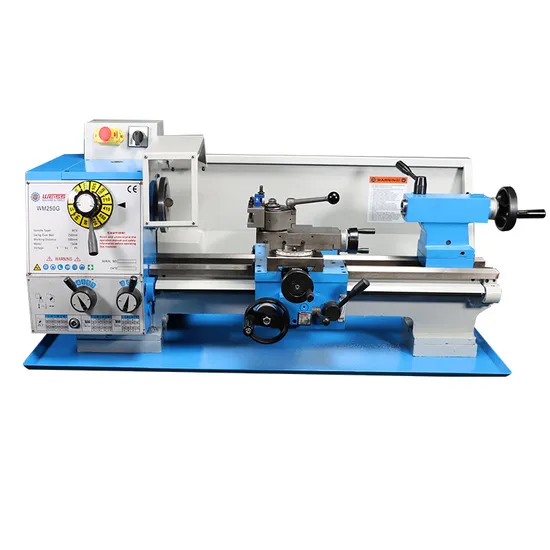

Weiss Wm250g High Quality Bench Lathe with Gear Drive

Product Description

Recommended Products
WBL210 WBL290F WBP250F

1. WEISS WMG250F bench lathe is the perfect size for garage or workshop to take on light duty jobs requiring a 250mm swing, 26mm spindle bore and 550mm between centers.

2. This lathe comes equipped with a full featured carriage and apron assemblies that provide super accurate custs and finishes.

3. POWER CROSS FEED as well as feed on the carriage. Both in, out, left&right

4. Gear drive makes it more powful and larger torque.


Want TOP quality? Come to WEISS, you can get the excellent value!

SPECIFICATIONS		Standard Accessories	Optional Accessories
WEISS MODEL	WBL250F
ITEM NO	10105250	125MM 3-JAW Chuck	Steady Rest
Distance between centers	550/750mm	Chip Tray	Follow Rest
Swing over bed	Ø250mm	Splash Guard	Face Plate 240mm
Swing over cross slide	Ø150mm	Toolbox and Tools	4-Jaw chuck 125mm
Width of bed	140mm	4-way tool post	Threading Diail
Taper of spindle bore	MT4		2-Axis DRO (Magnetic Scales)
Spindle bore	26mm		3-Ais DRO(Magnetic Scales)
Number of spindle speeds	12		Stand
Range of spindle speeds	80-1600mm		Luxury Stand
Range of inch threads (imperial version)	4-96 T.P.I		Quick chage Tool Post (TOOA1)
Range of cross feeds	0.015-0.137mm/r		Turning Tools
Range of longitudinal feeds	0.03-0.275mm		Backplate for 4-jaw chuck(125mm)
Range of metric threads (metric version)	0.25-5mm
Top slide travel	65mm
Cross slide travel	130mm
Tailstock quill travel	60mm
Taper of tailstock quill	MT3
Motor (brushless)	750W

Detalis Headstock

· Gear drive, large torque, more powful.

· Spindle is supported by high precision, Class 5, adjustable tapered roller bearings

· Speed from 80-1600rpm
Change Gear:
All metal gears
Providing 40 kinds of inch threads and 29
kinds of metric threads cutting
Gearbox:right and left hand threads cutting, 3 kinds of feeding speeds Tailstock:with quick lock handle,drive hub,draw-down alignment

3-Jaw Self-centering Chuck Power longitudinal & cross feed Guideway induction hardened, precision ground

4-Way Tool Post Cross Slide with T-slot Table Metric/ Imperial Threading Dial
Tool& Toolbox
Factory and Delivery
Certificate
Exhibition
FAQ
1. What is your Warranty? 1 year, including accessories. We always offer professional technical support and good after sale service.
2. Can we pay by L/C or others?
Yes ,you can make the payment by T/T, Paypal etc.
3. What is your payment terms?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
4. What is your lead time?
It depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
5. Do you have CE certificate?
Yes, we have CE certification, machine quality is guaranteed.
6. Can we purchase the accessories only?
Yes, we sell accessories of our machine as well.
