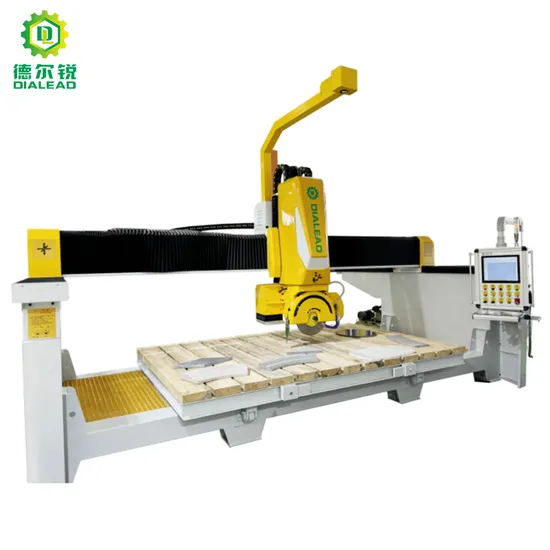

Dialead 5 Axis CNC Cutting Machine for Countertop with Cutcam System

Product Description

Product Description
The 5-axis CNC machine is a multi-functional machine that is ideal for countertop machining. Dialead 5 axis CNC is among the top quality in China. Both 450mm model and 600mm model are available.
Features:
1. CUTCAM industrial controller and industrial touch screen computer support online remote connection (system lifetime free remote upgrade)
2. Type 450: The X and Y axes adopt high-precision helical rack and gear transmission, and the Z-axis adopts high-precision ball screw transmission.
Type 600: X-axis linear guide, rack drive, Y-axis, Z-axis linear guide, ball screw drive
3. The adjustable speed range of 0-6000 rpm is suitable for cutting and processing of granite, marble, microcrystalline stone, rock slab, glass and other materials.
4. The whole structure adopts gantry steel structure welding, heat treatment and tempering process, sandblasting and anti-rust treatment. The structure is solid and stable, and it is finished by gantry machining center with high precision and strong stability.
5. The Z-axis lifting adopts a cast iron integrated sliding plate structure, which has higher precision and stronger stability. And with brake function.
6. Equipped with a tool setter to automatically measure the blade diameter and diamond tip. After the tool is used for a period of time, the tool wear can be measured and accurate compensation can be made. One-click measurement, accurate and simple to operate)
7. 7 OCEAN solenoid valve, Taiwan AHK linear guide, TBI ball screw, Zhonglide high-precision planetary reducer, VEICHI servo motor and drive, VEICHI 30KW variable frequency driver, world famous brand circuit breaker, world famous brand contactor, Omron relay , Siemens button, Taiwan Yangming sensor switch
Automatic oil injection pump, regular oil injection, linear guide rail and slider adopt oil-immersed structure, longer life and more durable accuracy A Hikvision high-definition industrial camera is installed above the machine head to collect the slab/tile size and position it. Compared with traditional industrial cameras, it is clearer and more accurate in positioning. There is no need to add additional light to the camera when working at night, and the clear slab texture can be seen at a glance. With the powerful internal typesetting software, typesetting can be completed more accurately and efficiently, greatly improving the efficiency of cutting processing.
Technical Data
All technical data can be customized to meet your specific needs.
Model number: DLCNC-450

MOdel number	#	DLCNC-450
Number of interpolated axes	#	5
Disc diameter	mm	350-500
Desktop size	mm	3200*2000
Maximum cutting thickness	mm	135
Table tilt	°	0-85
Head rotation	°	0-360
Head tilt	°	0-90
No-load travel speed	m/min	15
Positioning accuracy	mm	<0.1
Vertical travel (Z axis) mm 450	mm	450
Load capacity of vacuum suction cups	kg	500
Spindle power	kW	18.5
Total power kW 26	kW	26
Machine dimensions	mm	5600*3600*3500
Weight	kg	5200

Model number: DLCNC-600

MOdel number	#	DLCNC-600
Number of interpolated axes	#	5
Disc diameter	mm	350-600
Desktop size	mm	3400*2000
Maximum cutting thickness	mm	185
Table tilt	°	0-85
Head rotation	°	0-360
Head tilt	°	0-90
No-load travel speed	m/min	15
Positioning accuracy	mm	<0.1
Vertical travel (Z axis) mm 450	mm	650
Load capacity of vacuum suction cups	kg	500
Spindle power	kW	22,permanent magnet motor (SNT brand), 0~6000 rpm
Total power kW 26	kW	30
Machine dimensions	mm	5800*3600*3800
Weight	kg	6000

Machine Details

Packaging & Shipping
Company Profile
Quanzhou Dialead Stone Machinery Co., Ltd. is a high-tech enterprise founded by Dialead Stone Tools, together with several domestic well-known engineering colleges, stone machinery technicians and software system companies. Dialead Stone Machinery main products include five-axis bridge cutting machine, four-axis bridge cutting machine, stone copying machine, baluster machine, engraving machine, block cutting machine, polishing machine and etc. With constant technology innovation, stone processing industry has now developed to intelligent automatic processing from initial rough processing. Dialead is always devoted to the improvement of its technology and making contribution to the development of the industry.
Engaged in the production of stone tools (diamond segment, saw blade, engraving knives, stone polishing abrasives) for more than 20 years, Dialead has a good knowledge of stone tools and specific needs of different markets. When it comes to stone machinery, Dialead can well match its stone machines with its stone tools to achieve the best processing effect. This is what tells Dialead apart from other stone machinery suppliers in China.
With complete R & D and production system, Dialead is seeing its sales map bigger and bigger. For domestic market, Dialead Stone Machinery has set up offices in many cities. For international market, Dialead products are exported to more than 60 countries and regions, such as Russia, the United States, Ukraine, Kazakhstan, India, Poland, Jordan, Oman and etc.
Dialead attaches great importance to intellectual property and certification in its development. Dialead has obtained more than 30 patent and more is in the way. All Dialead machines are CE certified to make sure all details meet international standards.
