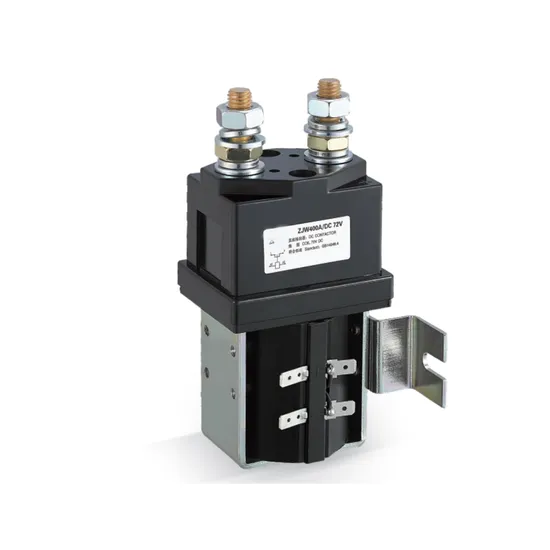

Albright DC Contactor Relay for Power Supply with 100A 24V
Basic Info.
Model NO.
SW80
Phase
1
Main Circuit Rating Voltage
80V
Main Circuit Rating Current
200A
Type
Dc Contactors
Contact Form
1no
Transport Package
40PCS/CTN
Specification
ZJW100A
Trademark
CNJUHO
Origin
Zhejiang
HS Code
8536300000
Production Capacity
1000000/Year
Product Description
Application:The products are mainly used to control switching on/off of power supply of storage battery car,electric forklift, electric winch, electric car,excavator, air conditioner in vehicle, power source
Ordering Notice
For example: ZJW100A/12V The DC contactor of main contact is 1N.O(normal open), rated voltage not more than 80V/DC, current 100A, coil voltage 12V/DC
Installation way:
1).horizontal
2).vertical
| Basic Technical Parameters (at normal conditions) | |||
| Electric Parameters | |||
| Contact type | One pair of bridge type moving open (NO) contacts | Instantaneous max (closing) current | 7Ie,≤1s |
| Rated voltage of contacts (DC) | ≤80V | Insulation resistance(MΩ) | ≥100 |
| Rated current of contacts (A) | 100 | Dielectric withstand voltage | 1500V,p.f. 1min, no breakdown |
| Voltage drop on contacts(mV) | ≤80 | Electric cycles (104) | ≥2 |
| Coil voltage specification(DC) | 12V, 24V, 48V, 72V etc | Mechanical cycles (104) | ≥30 |
| DC power consumption of coil (W) | ≤11 | Temperature rise on outgoing terminal | ≤65 |
| Pickup voltage(DC) | ≤75%Us | Temperature rise of coil(K) | ≤85 |
| Release voltage(DC) | ≥5%Us;≤40%Us | Insulation grade of enameled wire | Class B (130°C) |
| Pickup time(ms) | ≤30 | Material of contact | AgCuO(10)/Cu |
| Release time(ms) | ≤50 | Working duty | Continuous operating duty |
| Mechanical/Ambient Conditions | |||
| Torque of outgoing terminal on contact M8(N.m) | ≯9.0N appropriate | Protection grade | IP50 |
| Coil lead end thickness(mm) | 0.8 | Mounting methods | Freely |
| Working temperature | (-25~+55)°C | Vibration | Sine shock: 2.5g, (5~50) Hz |
| Mounting altitude | ≤2Km | Impact | 50g,11ms(Half sine) |
| Conversion Table for Coil Specification(20°C) | |||
| Voltage(V) | Coil resistance(1±10%)Ω | Voltage(V) | Coil resistance(1±10%)Ω |
| 12 | 17.1 | 48 | 210.4 |
| 24 | 67.7 | 60 | 442 |
| 36 | 161.1 | 72 | 568.6 |
