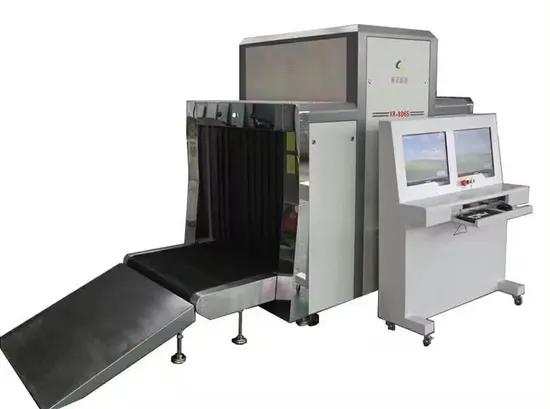

X Ray Security Scanner 800mm Large Tunnel Luggage X-ray Baggage Scanner

Product Description

X-ray use penetrate inspection, can detect the object metal structure, display where is invisible to the naked eye. Used in the factory testing of security products and business units such as: airport, electronic factories, shoe factories, toy factories, courts, railway stations, and event bag, line security management package.

General Specification
Tunnel Size	1000(W)*800(H)mm	Conveyor Speed	0.22m/s
Conveyor Max Load	200kg	Dose per Inspection	< 1.7μGy/h
Resolution	< 0.0787mm Copper Wire	Spatial resolution	Level: dia1.0mm, Vertical: dia1.0mm
Penetrate resolution	Dia 0.254mm	Penetration	≥ 38-40mm Steel
Film Safety	Guarantee 1900Film	X-ray Leakage	<0.05μGy/h (at a distance of 5cm From external housing)
Multi-energetic distinguish objects	organic objects in orange, inorganic objects in blue, mixture in green	High-energy/low energe	switch from high energy to low energy

Detailed Photos
Advantages:
1. Famous brand spare parts
a. Hamamatsu brand detector from Japan
2. Protective cover on lead curtain to avoid lead pollution
3. Sound and light alarm
4. Local network supported

General Specification Tunnel Size: 1000(W)*800(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 200kg
Dose per Inspection < 1.7μ Gy/h
Resolution < 0.101mm Copper Wire
Spatial resolution: Level: Dia1.3mm, Vertical: Dia1.0mm
Penetrate resolution: Dia 0.511mm
Penetration: 34mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <0.1 μ Gy/h (at a distance of 5cm From external housing)

X-ray Generator Generate direct: Downward
Generate anger: 80 degree
Anode Voltage: 100~160Kv
Anode power: 0.4 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%

Image System X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Image Processing: Edge enhancement, image strengthening, image lightening , reducing darkening, image returning, image retrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zoom: 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects: Organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy: Switch from high energy to low energy
Assist to detect drug and explosive powder

Installation Data Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
Operation Power: 220VAC(± 10%)50± 3Hz
Power Consumption: 1.0 KW (max), 1.0KW(working)
Noise: <58dB.
Application:
Airports and Seaports
Government Buildings
Hotels and Casinos
Public Transportation
