68inch High-Speed Automatic Flat Collar Cuffs Knitting Machine with 14gauge

Product Description

Product Description

NINGBO HAOYUE PROFESSIONAL PLAIN DESIGN COLLAR KNITTING MACHINE Specially designed for knitting collar and rib; through the extreme requirements in straightness, flatness and precision of machine parts such as bed- base, guide rail, needle-bed, cam-board and cams. We solved these problems that fabric lines grain is not clear, two edges of collar are different and flatness is not enough.This series with milling type needle bed. This series adopts digital technology, which can realize the functions of transfer, tuck, hole picking, jacquard, needle narrowing, and other regular pattern knitting functions of the flat knitting machine. This series can weave basic knitting patterns (full needle, single side, Etc.), multi-color irregular jacquard, and twisted weft knitting. This series is suitable for knitting collar and clothing accessories. Machine control system is developed by ourselves . we can make designs on machine screen directly.

DOUBLE CARRIAGES PLAIN DESIGN COLLAR KNITTING MACHINE
NINGBO HAOYUE Plain design collar knitting machine: 1. It has the advantages of low power consumption, high-efficiency, reasonable price, stable quality and the short-term
recouping of capital outlay.
2. The machine adopts full computer control, and the machine head is small.
3. The machine can make pattern directly on the machine, easy to operate ,Beginners are easy to learn.
4. With double head machine, the productivity is double of that of single head machine, also can be used for wide fabric.
5. Plain design machine knitting collars photo:
Detailed Photos

DAHAO CONTROL SYSTEM

DAHAO CONTROL SYSTEM

HAOYUE CONTROL SYSTEM

SINGLE CARRIAGE

NEEDLE BED

DOUBLE CARRIAGE

3/4 PCS YARN GUIDE RAIL

SERVO MOTOR

6/8 PCS YARN FEEDER

AUTOMATIC RESET PROBE

YARN STOP

SPANDEX YARN DEVICE

Machine Paramenters

Gauge	12G,14G,16G,18G
Knitting width	36,42,52,60,68, 80,100inch
Knitting system	Single carriage Double carriage
Knitting speed	Maximum 1.6m/s. (depending on knitting wide and knitting material)
Knitting function	Knitting, line jacquard and plain design.
Needle-bed	Narrow needles bed, with high and low hell needles at front and rear needle bed.
Racking	Controlled by servo-motor racking within 2 inches and with fine adjusting function.
Stitch density	Controlled by stepping motor,0-99, the stitch of the collar can be accurately controlled.
Take-down system	Sub-segment combination rollers, Programmed instruction controlled by stepping motor, two speed options.
Color-changing system	6 colors, two side interchangeable feeders.
Protection system	The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device.
Control system	HAOYUE control system developed by HAOYUE, LCD industrial display, Display various parameters, Express in Chinese or English.
Power supply	Single-phase 220V,adopt advanced CMOS technology, having memorizing function at power shock stop.
Volume and weight	2200*900*1700mm,550kgs(42inch) 2400*900*1700mm,600kgs(52inch) 3500*900*1700mm,850kgs(80inch double carriages)
Optional functions	Automatic hook yarn head function; Spandex function; Yarn storage device; Yarn feeder device

Product packaging

Model	Knitting Width	Package Machine Size(MM)		Gross Weight(KGS)

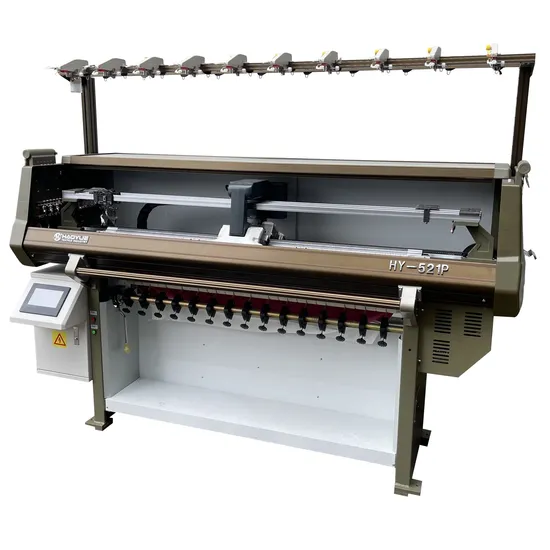

HY-421P	42 inch	2200*900*1800mm		Around 550kgs
HY-521P	52 inch	2400*900*1800mm		Around 600kgs
HY-802P	80 inch	3500*900*1800mm		Around 850kgs

Knitting Samples

Company Introduction
NINGBO HAOYUE is a professional high-tech manufacturer, production & sales of computerized flat knitting machine and professional collar knitting machine(such as sweater, shoe upper, polo collar,rib, scarf, hat,blanket etc.) By 25 years concentration and persistence,accumulated experience and technical progress, We have won the trust from many domestic and overseas suppliers. We own abundant technical advantages. Excellent facility,perfect quality management system. We will offer better quality, better service, better prices to our customers. People foremost, success through quality. Mutual benefit and double-win outcomes are our conception.
