30L/S High Air Flow 35kpa High Pressure 24V 110V 220V 1200W Electric BLDC Blower Brushless DC AC Electricial Vacuum Cleaner Motor

Product Description

Product Description Product Features

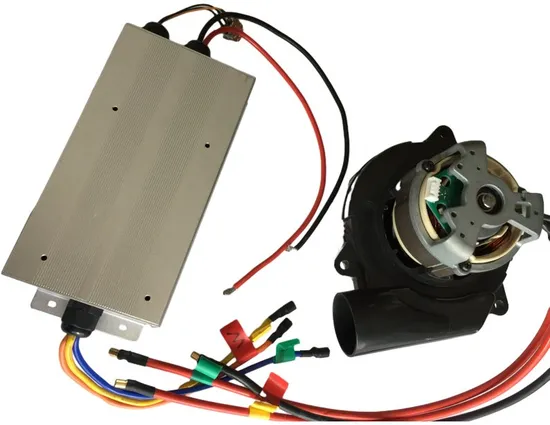

BRUSHLESS VACUUM CLEANER MOTOR BLDC BLOWER WITH CONTROLLER( DRIVE) PASS CE & ROHS PLEASE SEND US THE DETAILS SPECIFICATION TO CUSTOMIZE.Manufactured by Shenzhen Xinhe Motor Co., Ltd.

Plat	Volt	Current	Pin	Vacum	flow	Pout	Eff	Speed
[mm]	[V]	[A]	[W]	[KPa]	[L/s]	[W]	[%]	[rpm]
Open	221.0	8.05	1208.0	0.66	51.24	33.94	2.81	0
50.0	220.9	8.00	1205.0	0.89	46.07	41.06	3.41	0
48.0	220.8	8.04	1206.0	1.13	47.82	54.14	4.49	0
40.0	221.1	8.11	1216.0	2.77	51.74	143.30	11.79	0
30.0	221.2	8.16	1220.0	7.26	46.52	337.70	27.68	0
23.0	220.9	8.00	1211.0	12.42	35.25	438.60	36.22	0
19.0	220.8	8.05	1207.0	16.06	27.06	435.40	36.06	0
16.0	221.1	7.76	1163.0	18.47	20.44	377.90	32.50	0
13.0	221.2	7.08	1052.0	19.93	13.96	278.30	26.46	0
10.0	221.0	6.40	939.3	21.62	8.56	185.30	19.73	0
6.5	221.5	5.73	834.3	23.52	3.75	88.23	10.57	0
0.0	221.3	5.03	725.8	26.49	0.00	0.00	0.00	0

Specifications:
Dimensions: ∅130.0mm X 114.0mm
Type: Through-flow
Input Voltage: 220V AC
Input Power open: 803.90W
Air Power open: 67.02W
Air Power 19mm orifice: 362.19W
Air Flow open(l/sec): 53.5L/sec
Speed open: 29762rpm
Speed 19mm orifice: 30032rpm
Speed seal: 33166rpm
Maximum Efficiency: 48.29%
Other Feature: Driven by -1000W-SL-230V
Control Life(typical): 5000hr
Life Test Condition: 52.5mm Orifice, 20s ON / 8s OFF
Operation Temperature: -10ºC to 55ºC
Storage Temperature: -20ºC to 80ºC
Electrical Connection: Lead wire
Vacuum Seal: 19.53kPa
Detailed PhotosProduct ParametersCertificationsPackaging & ShippingInstallation InstructionsCompany Profile
Our business has a situation here - all of our customers are brand. They are famous and well accepted by local customer. They commit to their consumer value. They are loved by people and never fail their expectation. Although they could be all different, they have one thing in common - they work with us.
Over 16 years of experience working with brand, we know exactly what is important to you and consumer in the all kinds of industry.
SHENZHEN XINHE MOTOR Co., Ltd located in the shenzhen city. It is a specialized factory that produces AC DC motor applying to various kinds of devices as kitchen appliance, air flow products, air condition, water heater, water & induction pumps, power tools, robots, 3D printer,Medical products, smart wear, electrical toys as well as household appliance.
In line with the management idea "humanist, the good faith is supreme" and the quality consciousness "strives for perfection", we have gathered a team of specialists in engineering, manufacturing, quality control, production management and technology development.
From our powerful DC brushed and brushless motor, our fully experienced engineer and extensive application expertise make us as a valued partner for the project development and production with customer-specific motion solutions.
Our company manufactures, develops, designs and markets trendy electronic products which are sold successfully in more than 20 countries worldwide. We offer customers a complete and professional solution, including: Superior customer serviceReliable and high-quality productInnovative design, up-to-date with the latest trendA wide product rangeSuper-competitive prices, due to our efficient business structure and partners support. Convenient ordering quantityWe are in full compliance with EU & America restrictions and regulations: CE standards, RoHS, child safety, environment safety and social responsibility.
Our company comprehensively promotes ISO9001: 2001 management systems, we are supplying our motors to many famous worldwide companies of top brand with different applications in Europe, America, Middle East, East Asia, South America market.
FAQ
