Semi Automatic Liquid Filling Crimping Gas Filling Aerosol Spray Can Filling Machine with CE

Product Description

Tel	008613626120188
Http://jsmeida.en.made-in-china.com

Product description

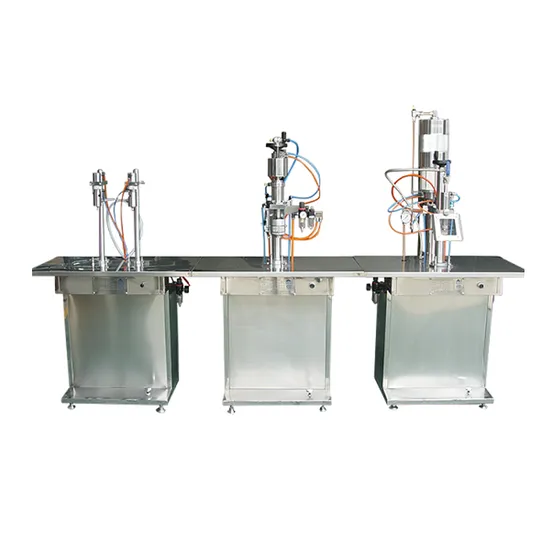

1 Composed of three machines, including dobule headed liquid filling machine, crimping machine and propellant filling machine. We could design them in one working table or three separate working tables, double aeration system is optional to improve efficiency.
2 Suitablel for all typical aerosol products, suc as air freshener, deodorant, perfume, furniture spray, insecticide, mosquito killer spray, pesticide, leather spray, toliet spray, disinfection spray, hair spray, cosmetic spray, self defence spray, pepper spray, pharmaceutical spray, food spray, wound spray, tyre repair spray, mould release spray, anti rust spray, color paint spray, PU foam, fire extinguisher and LPG cartridge.
3 Stainless steel 316 manufactured by CNC machine both liquid dosing and gas metering system. Reliable crimping quality, accurate filling dosage, addtional boost pump for propellant liquefaction. Fully pneumatic controlled, easy operating and simple machine serviing, low investment for customer.

PART 1: Liquid filling machine
It is applicable to all kinds of medium filling, such as thin liquid(kerosene) and viscous liquid (face cream, PU-foam) .

Technical parameters
Filling capacity		30-500ml
Filling Precision		≤± 1.5%
Filling speed		800-1800cans/h
Applicable can	height	50-350mm, customization available
	diameter	16-100mm
Compressed air Working pressure		0.45-0.7MPa
Max. air consumption		0.8M3/min
Weight		50-85kg
Dimension		900*550*1300mm

PART 2: Sealing machine
The machine is suitable for sealing all types of aerosol cans. And the aerosol cans will be sealed with a reliable quality and can be reserved in poor condition without any leakage for a long time.

Technical parameters
Applicable cap		25.4mm
Filling speed		1000-1500cans/h
Crimping diameter		(26.5-28.5)±0.15
Crimping Depth		(0-7.0)±0.15mm
Applicable can	height	60-350mm, customization available
	diameter	20-100mm
Compressed air Working pressure		0.45-0.7MPa
Max. air consumption		12L/min
Dimension		500*400*700mm
Weight		74kg

PART 3: propellant filling machine
The machine automatically boosts and liquefies the propellant, keeps it in a appropriate pressure as desired and controls the dosage of the propellant. The propellants cover F12,F22,LPG,DME,CO2,N2,O2,134a, compressed air and so on.

Technical parameters
Filling precision		≤1%
Filling speed		800-1500cans/h
Filling Capacity		30-500ml(can be customized)
Applicable can	height	60-350mm, customization available
	diameter	20-100mm
Compressed air Working pressure		0.45-0.7MPa
Max. air consumption		180L/min
Dimension		900*550*1800mm/990*550*1300mm
Weight		80-110kg

If you need more informations, you can contact me!
Packing & Delivery
About us
FAQ: Q1:Are you a factory or trading company?
A1:We are a factory specialized in aerosol filling machine . Such as spray print insectcide ect.
Q2:Where is your factory location? How can I visit there?
A2:Our factory is located in Yangzhou,China.You could visit us by air to Yangzhou Airport then we will pick you up to our factory.
Q3:How does your factory do regarding quality control?
A3:Quality is priority People from Meida always attach great importance to quality controlling from the beginning to the end.
We support to inspect machine before shipment . Our factory has gained TUV and ISO authentication.
Q4:What`s the guarantee if we purchase from you?
A4:All the equipment ordered from us will provide one year quarantee from the delivery date. If there is any wearing part be broken within the warranth and isn`t caused by improperly operation then we would offer then new parts for free.
Q5:How about the after service?
A5:There`s no problem we could send our engineer to install or fix the machine locally in due course but customer need to pay the round air tickets cost and arrange the hotel accommodation for our engineer.

Layout design and consultancy is available, contact us!
