Hydraulic Metal Tube Pipe Profile Bending Machine Rolling Bender
| US$2,600.00-6,800.00 | 1 Piece (MOQ) |
Basic Info.
Warranty
2-year
Condition
New
Certification
CE
Automation
Automatic
Suitable for
Plastic, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Beading Machine
Rolled Plate Speed
6
The Yield Strength
S=450
Maximum Modulus of Flexural Section
6
Round Bar Maximum Bending Size(mm)
38
Transport Package
Cover with Plastic Film
Trademark
Hycules
Origin
China
HS Code
8462299000
Production Capacity
15 Set/Month
Product Description

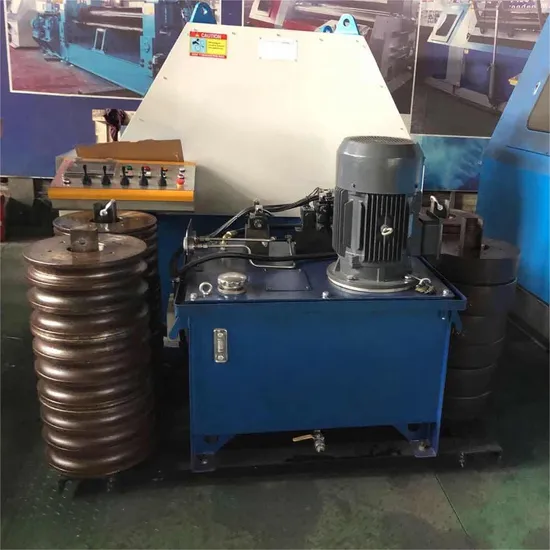

Detail Images
Product Parameters
| Technical Parameters | 6 | 16 | 30 | 45 | 75 | 100 | 140 | 180 | 260 | 320 | 400 | 500 |
| Maximum Modulus of Flexural Section | 6 | 16 | 30 | 45 | 75 | 100 | 140 | 180 | 260 | 320 | 400 | 500 |
| Rolled Plate Speed | 6 | 6 | 5 | 5 | 5 | 5 | 4 | 4 | 4 | 4 | 4 | 4 |
| The Yield Strength | S=450 | S=450 | S=450 | S=450 | S=450 | S=450 | S=450 | S=450 | S=450 | S=450 | S=450 | S=450 |
| Inside of Angle Steel Maximum Bending Size(mm) | 40*5 | 70*8 | 80*8 | 90*10 | 100*10 | 120*12 | 140*16 | 150*16 | 160*16 | 180*14 | 200*18 | 200*20 |
| Outside The Angle Steel Bend Maximum Bending Size(mm) | 50*5 | 80*8 | 90*10 | 100*10 | 120*12 | 140*16 | 150*16 | 160*16 | 180*14 | 200*18 | 200*24 | 250*25 |
| Channel Steel Outside Bend Maximum Bending Size(mm) | 8 | 12 | 16 | 20 | 25 | 28 | 30 | 32 | 36 | 40 | 45 | 50 |
| Inside of Channel Steel Maximum Bending Size(mm) | 8 | 12 | 16 | 20 | 25 | 28 | 30 | 32 | 36 | 40 | 45 | 50 |
| Flat Steel Flat Bend Maximum Bending Size(mm) | 100*18 | 150*25 | 180*25 | 200*30 | 220*40 | 250*40 | 280*50 | 300*50 | 330*50 | 360*60 | 400*75 | 500*76 |
| Flat Steel Bending Maximum Bending Size(mm) | 50*12 | 75*16 | 90*20 | 100*25 | 110*40 | 120*40 | 150*40 | 180*30 | 190*40 | 190*50 | 200*50 | 200*60 |
| Circular Tube Maximum Bending Size (mm) | 42*4 | 76*4.5 | 89*5 | 89*8 | 114*5 | 159*5 | 186*6 | 168*8 | 219*8 | 245*8 | 273*8 | 323*8 |
| Round Bar Maximum Bending Size(mm) | 38 | 52 | 62 | 75 | 85 | 90 | 100 | 110 | 120 | 135 | 150 | 160 |
| Square Tube Maximum Bending Size(mm) | 45*3 | 60*4 | 70*4 | 80*6 | 90*8 | 100*10 | 125*10 | 140*10 | 150*10 | 165*10 | 180*12 | 200*12 |
