Heavy Duty RAM Type Universal Milling Machine X5750 X5746 X5750A

Product Description

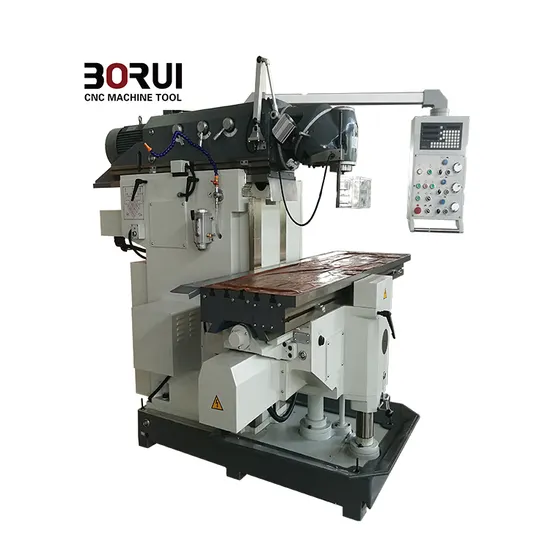

X5750 Universal Milling Machine Tengzhou BoRui Manufacturer
a,Table 3 axes with ball screws, high precisiona
b,Table feeding with 3 separate servo motors, variable speeds, not interfere each other,high reliability,easy to operate
C,Mechanical change speeds in head stock, powerful milling
D,Table with an extra supporting column, big load, high accuracy
E,It can mill any angle surface through front half-sphere by swiveling milling head
X5750 Universal Milling Machine Tengzhou BORui Manufacturer
X5750 Universal Milling Machine Tengzhou BORui Manufacturer

Specifications	Unit	X5750	X5750A
Table size	mm	500*1600	500*2000
T-slots(NO./width/pitch)	mm	5/18/80
Table travel (X/Y/Z)	mm	1200*700*500	1400*700*500
Swivel angle of milling head		360°
Spindle taper		ISO50
Spindle speed range	r.p.m	(27) 30-2050
Table feed(X/Y/Z)	mm/min	10-1000/10-1000/5-500
Table rapid speed		2200/2200/1100
Distance between spindle nose and table surface	mm	50-550
Distance from spindle center line to column	mm	45-745
Main motor power	KW	7.5
Feed motor	NM	AC servo motor X/Y:15NM; Z: 18NM
Max load	KG	1800
Overall size	mm	2625*2460*2080	2625*2860*2080
weight	KG	5000	5500

Standard accessories:
Drill chuck,
Mill chuck,
Reduction sleeve,
Wrench,
Inner-hexagonal spanner,
Camlock,
Wedge shifter,
Spindle arbor,
Horizontal milling bilt,
Operatin manual.

Optional accessories:
3-Axis SINO DRO
Universal dividing head
Rotary table TSL250
Machine vice
Security of the table
Security of the spindle(simple type)
Security of the spindle(advance type)

Company Information
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
