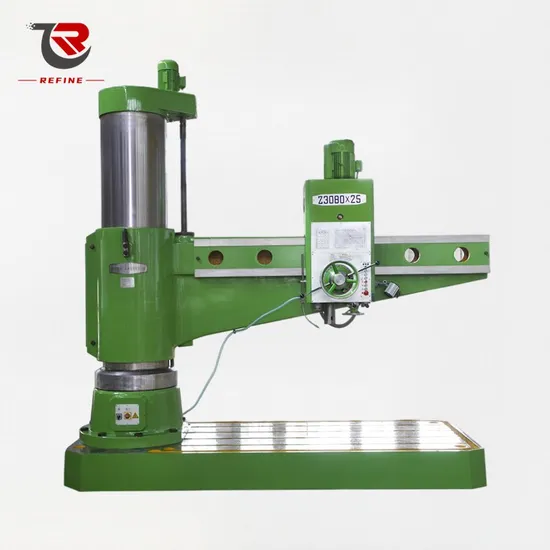

Z3080 Mechnical/ Hydraulic Radial Drilling Machine

Product Description

PRODUCTION DESCRIPTION
Radial Drilling Machine Model ZQ3080/Z3080 is improved on the base of the new series products,it is the universal machine for general purposes, suitable for drilling, counter boring, reaming, spot facing and tapping on medium or large sized parts. Boring is also possible where such technological equipment is available.
Radial drilling machine is provided with hydraulic presetting speed shift mechanism to save auxiliary time. Perfect safety protector and outer column protection are available. Its electrical equipment completely contributes to personal safety, reliability, long service life and convenient maintenance. With wide range of speed and feed, with manual, power & fine feeds. The feed of machines are very easily engaged & disengaged at any time. With safe and reliable feed safety machine, all parts easy operation and change. Spindle parts are made by special high quality steel heat treatment to be made by first class equipment, ensuring high strength and durability. MACHINE PICTURES

PARAMETERS

Item		Unit	Z3032x10	Z3040	Z3050×16	Z3063	Z3080	Z30100	Z30125
Max. drilling diameter		mm	32	40	50	63	80	100	125
column surface	Max.	mm	1000	1600	1600	2050	2500	3150	4000
	Min.	mm	200	350	350	450	500	560	600
Distance from spindle nose to base surface	Max.	mm	1064	1215	1270	1600	2000	2500	2500
	Min.	mm	264	315	370	400	550	700	700
Spindle travel		mm	250	315	315	400	450	500	560
Taper of spindle bore (Morse)		No	No.4 Morse	No.4 Morse	No.5 Morse	No.5 Morse	No.6 Morse	No.6 Morse	Metric 80
Spindle speed		r/min	71-1800	25-2000	25-2000	20-1600	16-1250	8-1000	6.3-800
Spindle speed series			8	16	16	16	16	16	22
Spindle feed rate series		mm/r	0.13-0.54	0.04-3.2	0.04-3.2	0.04-3.2	0.04-3.2	0.06-3.2	6.3-800
Main power		kw	2.2	3	4	5.5	7.5	15	18.5

MACHINE FEATURES

In design and production of structure, it further adopts a series of effective measures to prolong precision durability and lifespan of whole machine.
All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power.
Spindle box, rocker arm, inner and outer columns are reliably clamped by hydraulic diamond clamping mechanism.
It only needs one handle to operate clockwise rotation, stop (brake), variable speed and neutral gear conveniently.
Company adopt the SMTCL in the production of carburized gear, carburized gear material hard enough, bit basic dozen don't move, general gear to move with a drill. Carburizing gear ,wear-resisting, low noise.
Main parts are made by MAZAK machine center which import from Japan with high precision and efficiency, ensuring reliability and high quality. Harbin Bearing
Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts. Casting temper aging treatment. High hardness
ACCESSORIES

No.	Description	Specification & Type No.		Qty		Remarks
Main Proper Frame
1	Radial Drilling Machine	Model Z3080×25		1set
Attachments &Tools
1	Working table		1000×800×560		1pcs		Fixed on machine
2	Finishing hexagon nut		M24; GB/T 6170-2000		4pcs
3	Finishing hexagon nut		M36; GB/T 6170-2000		6pcs
4	T-slot bolt		M24×130;GB37-88		4pcs		Fixed on machine
5	Foundation bolt		M36×680;GB799-88		6pcs
6	Finishing washer		36;GB/T 97.2-2002		6pcs
7	Drift		1-2;SZS S81-1		1pcs
8	Drift		3;SZS S81-1		1pcs
9	Drift		4;SZS S81-1		1pcs
10	Drift		5-6;SZS S81-1		1pcs
11	Morse taper short reducing sleeve		3×1;SZS S82-1		1pcs
12	Morse taper short reducing sleeve		3×2;SZS S82-1		1pcs
13	Morse taper short reducing sleeve		4×3;SZS S82-1		1pcs
14	Morse taper short reducing sleeve		5×4;SZS S82-1		1pcs
15	Morse taper short reducing sleeve		6×5;SZS Z82-1		1pcs
16	Suspension ring		40;SZSJ29-9		2pcs		Fixed on machine
17	Oil gun		90;SZS R99-1		1PCS
Spare Part
1	O seating ring	9×1.9;G51-2		5pcs
2	O seating ring	11×1.9;G51-2		5pcs
3	O seating ring	13×1.9;G51-2		2pcs
4	Washer	6;SZSG91-2		4pcs
5	Washer	8;SZSG91-2		4pcs
6	Washer	10;SZSG91-2		2pcs
Technical Documents
1	Operation manual			1copy
2	Test Certificate			1copy
3	Packing List			1copy
