Hot Sale Metal Steel Structure 1000 Floor B-Decking Roll Forming Machine Factory Price

Product Description

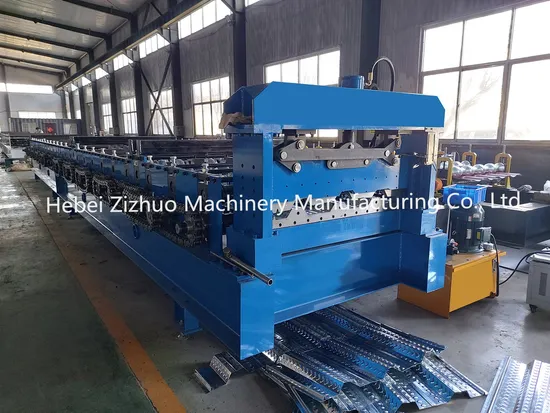

Hot Sale Mexico Customization Metal Steel Structure Floor B Decking Roll Forming Machine Factory Price Detailed Photos

5Ton passive decoiler , there is 8 ton, 10 ton, 12 ton, 15 ton hydraulic and electric de-coilers for option.

Feeding table with hand pre-cut, when a customer wants to change the production line, the pre-cut can cut the material easily, saving cost.
The roller and shafts are high-precision, solid shafts, and the finished product keeps an error of less than 2mm.
The guide column type hydraulic shear is more stable, and the blade material is Cr12
Delta PLC control system, touch screen, easy operate
For the hydraulic pump station, when a customer wants to run the machine, please fill in 2/3 hydraulic oil.
Receiving table is normally 2.5 meters long.
Profile drawing

Product Parameters

No.	Item		Parameter	Remark
1	Suitable material	Type	Color steel, galvanized steel
		Thickness(mm)	0.8-1.2mm	Test material standard 0.45mm
		Yield strength (Mpa)	≤300mm
		Width (mm)	About 1220mm
2	Forming speed		About 15-20 m/m	Not include cutting time
3	The motor of forming system (kw)		11.5kw	Depends on the final design
4	Hydraulic station power(kw)		5.5kw	Depends on the final design
5	Voltage requirements		AC380V, 50Hz, 3phase	According to the customer's request
6	Roller material		#45 steel with heat treatment 58-62 degrees
7	Shaft diameter		90mm solid
8	Control system		PLC with touchscreen	Delta brand
