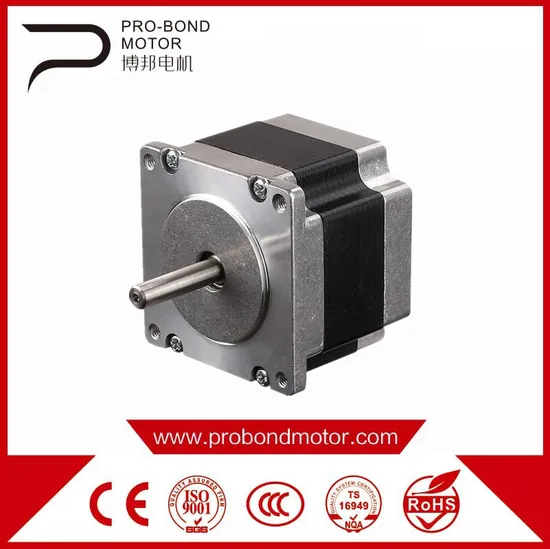

1.8 Degree 4.2A 2.8nm 4 Wires NEMA23 Stepper Motor
| US$7.20-15.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
57BYG
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Driving
Number of Poles
2
Operate Mode
Driver
Type
Magnetic-Electric
Certification
CCC, Ce
Brand
Probond
Model No
57bygh018
Step Angle
0.9 Degree
Current
0.6A
Voltage
6.9 V DC
Motor Body Length
20mm
Inductance
23mh
Resistance
11.5
Holding Torque
580mn.M
Lead Wires
4
Weight
430g
Transport Package
Carton
Specification
45*45mm
Trademark
Probond
Origin
Jiangsu
HS Code
8501101000
Production Capacity
10000PCS/Month
Product Description
1.8 degree 4.2A 2.8Nm 4 wires Nema23 stepper motor| 57BYG Hybrid Step Motor | ||||||
| Basic Info | ||||||
| Item | Data | |||||
| Step Angle | 1.8° | |||||
| Tem Rise | 60K max | |||||
| Working Tem | (-20ºC~+70ºC) | |||||
| Insulation Resistance | 100MΩ min 500VDC | |||||
| Surge Test | 500VAC for 1min | |||||
| Radial Clearance | 0.O2max(450g load) | |||||
| Axial Clearance | 0.O8max(450g load) | |||||
| Max Radial Pressure | 15N(20mm from the flange) | |||||
| Max Axial Pressure | 75N | |||||
| Insulation Class | E | |||||
The specification of 1.8 degree 4.2A 2.8Nm 4 wires Nema23 stepper motor
| PN | Rated Voltage | Step Angle | Length | Current | Resistance | Inductance | Torque | Lead wire QTY | Positive inertia | Weight |
| V DC | (°) | (L)mm | A | Ω | mH | mN.m | No. | g.cm² | g | |
| 57BYGH018 | 6.9 | 1.8 | 20 | 0.6 | 11.5 | 23 | 580 | 4 | 135 | 430 |
| 57BYGH117 | 5.1 | 1.8 | 20 | 0.6 | 8.5 | 125 | 480 | 4 | 185 | 490 |
| 57BYGH127N | 6.1 | 1.8 | 20 | 0.6 | 10.2 | 18.5 | 480 | 4 | 185 | 490 |
| 57BYGH216 | 5.1 | 1.8 | 20 | 0.6 | 8.5 | 10 | 500 | 4 | 209 | 515 |
| 57BYGH312E | 5.3 | 1.8 | 20 | 0.6 | 8.8 | 27 | 900 | 4 | 253 | 615 |
| 57BYGH413 | 4.5 | 1.8 | 20 | 0.6 | 7.5 | 15 | 760 | 4 | 281 | 680 |
| 57BYGH601 | 4.8 | 1.8 | 20 | 0.4 | 12 | 28 | 840 | 4 | 371 | 970 |
| 57BYGH501 | 4.8 | 1.8 | 20 | 0.4 | 12 | 38 | 1000 | 4 | 506 | 1050 |
| 57BYGH702 | 4.4 | 1.8 | 20 | 0.3 | 14.5 | 52 | 920 | 4 | 573 | 1100 |
Term of trade
| Terms of price | FOB,CIF,CFR,EXW,DDP,etc. |
| Terms of payment | 100% T/T in advance for samples |
| Bulk quantity payment way can be negotited | |
| Warranty | 12 months limited warranty once the items are delivered to the buyer. |
| Lead time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Carton o plywood pallet. |
| Place of loading | Shanghai, Ningbo, etc. |
| Shipment carrier | Items are usually shipped via Fedex,DHL, TNT,UPS,EMS for trial orders and via vessel for bulk orders. |
| Delivery time | Usually within 5 working days by Express 15-30 working days by vessel |
About Probond company
Probond motors designs brush, brushless, stepper, hysteresis and linear motors to meet customers requirements.
Our motors use standard and special components with customer selected torque/speed requirements that can be modified to your applications.
Probond motor owns professional sales team and engineer team with more than 10 years experience in motor industry, based on China mainland handling overseas business for years, we know your needs better than others.
Probond Sonicare Toothbrush Motor and Thermostatic Valve Hysteresis Motor are our hot products on sell in 2017 with highly quality level and competitive price.
Our promise to our Customers:
1. Answer customer's inquiry within 2 working days.
2. Reply to our customer questions & Concerns within 3 working days.
3. Acknowledge Customer purchase orders within 24 hours.
If you have any inquiry, pls feel free to contact with us. Thank you.
