Manufacture Angel Steel Hot Rolled Mild Carbon Steel 50*50*5 S235jr Grade Angle Iron ASTM A36 Equal and Unequal Angle Steel Factory Price

Product Description

Product DescriptionZhengde Brief introduction of angle steel: Angle steel can be composed of various stress components according to different needs of the structure, and can also be used as a connector between components. Widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks, cable trench supports, power piping, busbar support installation, and warehouses shelves etc.
Types of angle steel: mainly divided into two types: equilateral angle steel and unequal side angle steel, among which unequal side angle steel can be divided into two types: unequal sides and equal thickness and unequal sides and unequal thickness.

Sectional properties and theoretical weight of hot-rolled equilateral angle steel
Size(mm)			CSA	Theoretical Weight	center	consistency	resistance…Wx		Radius of gyration			Double angle steel turning radius…iy…(cm)
Wing width	wing	radius	A		y0	Ix	MAX	MIN	ix	iu	iv	a(mm):
b	t	R	(cm2)	kg/m	(cm)	cm4	cm3		cm	cm	cm	0	6	8	10	12
20	3	3.5	1.13	0.89	0.60	0.40	0.66	0.29	0.59	0.75	0.39	0.85	1.08	1.17	1.25	1.34
	4		1.46	1.15	0.64	0.50	0.78	0.36	0.58	0.73	0.38	0.87	1.11	1.19	1.28	1.37
25	3	3.5	1.43	1.12	0.73	0.82	1.12	0.46	0.76	0.95	0.49	1.05	1.27	1.36	1.44	1.53
	4		1.86	1.46	0.76	1.03	1.34	0.59	0.74	0.93	0.48	1.07	1.30	1.38	1.43	1.55
30	3	4.5	1.75	1.37	2.85	1.46	1.72	0.68	0.91	1.15	0.59	1.27	1.47	1.55	1.63	1.71
	4		2.28	1.79	0.89	1.84	2.08	0.87	0.90	1.13	0.58	1.26	1.49	1.57	1.65	1.74
36	3	4.5	2.11	1.66	1.00	2.58	2.59	0.99	1.11	1.39	0.71	1.49	1.70	1.78	1.86	1.94
	4		2.76	2.16	1.04	3.29	3.18	1.28	1.09	1.38	0.70	1.51	1.73	1.80	1.89	1.97
	5		3.38	2.65	1.07	3.95	3.68	1.56	1.08	1.36	0.70	1.52	1.75	1.83	1.91	1.99
40	3	5	2.36	1.85	1.09	3.59	3.28	1.23	1.23	1.55	0.79	1.65	1.86	1.94	2.01	2.09
	4		3.09	2.42	1.13	4.60	4.05	1.60	1.22	1.54	0.79	1.66	1.88	1.96	2.04	2.12
	5		3.79	2.98	1.17	5.53	4.72	1.96	1.21	1.52	0.78	1.68	1.90	1.98	2.06	2.14
45	3	5	2.66	2.09	1.22	5.17	4.25	1.58	1.39	1.76	0.90	1.85	2.06	2.14	2.21	2.29
	4		3.49	2.74	1.26	6.65	5.29	2.05	1.38	1.74	0.89	1.87	2.08	2.16	2.24	2.32
	5		4.29	3.37	1.30	8.04	6.20	2.51	1.37	1.72	0.88	1.89	2.10	2.18	2.26	2.34
	6		5.08	3.99	1.33	9.33	6.99	2.95	1.36	1.71	0.88	1.90	2.12	2.20	2.28	2.36
Contact Zhengde Metal for more detailed angle steel parameter information

Our AdvantagesAngle steel production
Angle steel belongs to carbon structural steel for construction. It is a simple section steel, mainly used for metal components and frames of factory buildings. In use, it is required to have good weldability, plastic deformation performance and certain mechanical strength. The raw material billet for the production of angle steel is low-carbon billet, and the finished angle steel is delivered in the state of hot rolling, normalizing or hot rolling.High Strength

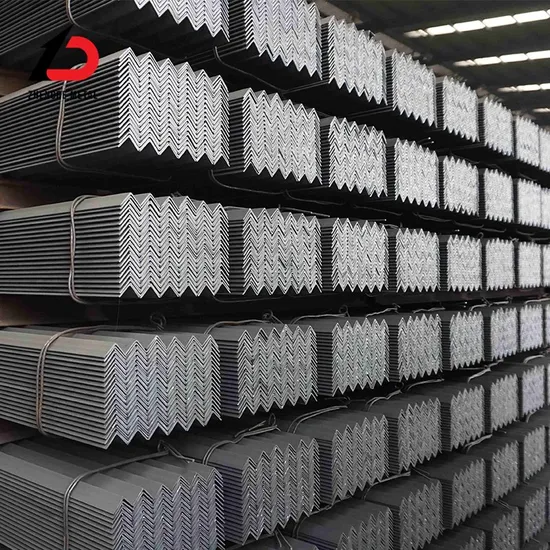

Adequate inventory
The specifications and inventory of angle steel are complete, expressed in dimensions of edge length and edge thickness. The specification of angle steel is 2-20, with the number of centimeters of the side length as the number. The same size angle steel often has 2-7 different side thicknesses. Imported angle steel shall be marked with the actual dimensions and edge thickness on both sides, and relevant standards shall be indicated. Generally, those with a side length of 12.5cm or more are large angle steels, those between 12.5cm and 5cm are medium angle steels, and those with a side length of 5cm or less are small angle steels.Attention to detail
The surface quality of angle steel is stipulated in the standard, and it is generally required that there should be no harmful defects in use, such as delamination, scarring, cracks, etc.
The allowable range of geometric shape deviation of angle steel is also stipulated in the standard, generally including bending degree, side width, side thickness, top angle, theoretical weight, etc., and it is stipulated that the angle steel must not have significant torsion.Applicable scene
Angle steel can be composed of various stress components according to different needs of the structure, and can also be used as a connector between components. Widely used in various building structures and engineering structures, such as beams, bridges, transmission towers, lifting and transportation machinery, ships, industrial furnaces, reaction towers, container racks and warehouse shelves, etc.
Quality first: production and inspection in strict accordance with production standards;
Price advantage: discounts based on real market prices;
Transaction security: There will be no loss of customer funds;
After-sales guarantee: the customer's problem is our problem;
Long-term cooperation: quality assurance, price advantage, sincere service can last for a long time.Detailed Photos
