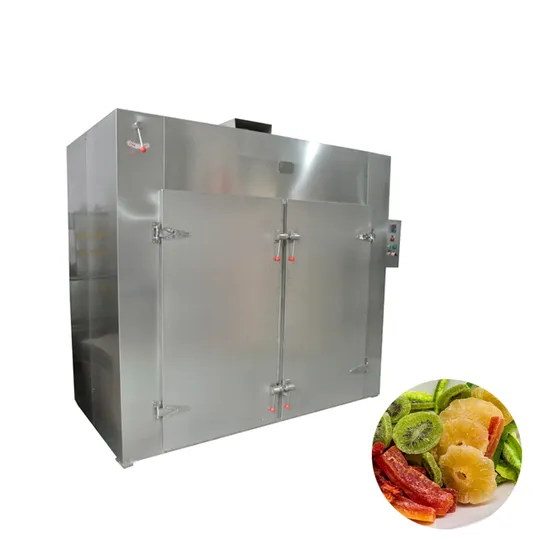

Industrial Grass Vegetable Fruits Hot Air Circulation Drying Oven

Product Description

industrial grass vegetable fruits hot air circulation drying oven
Product Description
The air circulating oven is a versatile drying equipment,it is suitable for heating,soliding and drying material and product in the field of pharmaceutics,chemical,foodstuff,light industry such as:raw material medicine,Chinese traditional medicine,power granule,packing bottle,pigment,dyestuff,dehydration vegetable,foodstuff,plastic resin,electric component,coat,wool,salt,catalyzer etc
Feature
Most hot air is circulated in the oven.The heat efficiency is high and the energy is saved.
It use the forced ventilating function,there are adjustable air distribution plates inside the oven,the materials can be dried uniformly.
The heating source might be steam,hot water,electricity and far infrared,with a wide selection.
The machine is low in the noise.The operation is in balance.The temperature is controlled automatically.
The installation and maintenance are easy.
The application is wide.The machine can be used for drying various materials and is a versatile drying equipment.
Product Parameters

Model No.L	RXH-12C	RXH-24C	RXH-96C
Drying capacity for each time(kg)	50	100	250
Power (kw)	0.45	0.45	27
Steam to be consumed(kg/h)	9	15
Air capacity (m³/h)	3000	3400	3800
Temperature between the top and the bottom(ºC)	±2	±2	±2
Plate for each machine	24	48	96
Plate Size	64*46*5CM	64*46*5CM	64*46*5CM
Machine Size(mm)	140*1200*2000	2300*1200*2300	2550*2250*2100
Detail	Single door	Double door	4 door
