Wholesale Price Pharmaceutical Equipment Automatic Hard Gelatin Capsule Filling Production Line Electric Rotary Capsule Filling Manufacturing Machine

Product Description

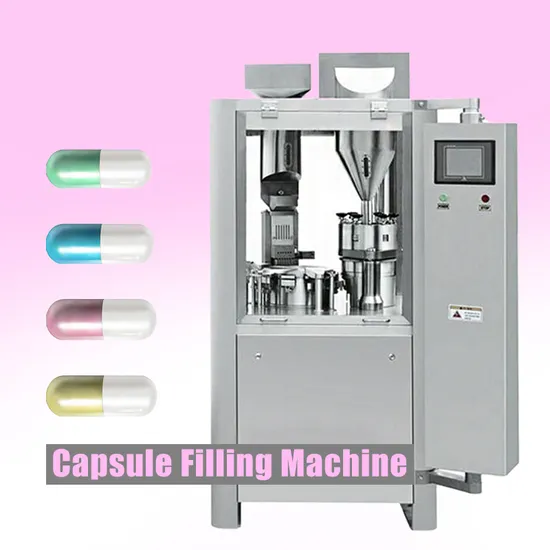

NJP 400 / NJP 800 / NJP 1200 Automatic Hard Capsule Filling Machine
For 0 Size, 00 Size, 000Size, 1 Size, 2 Size, 3 Size, 4 SizeProduct Application:
NJP 400 NJP 800 NJP 1200 Automatic Hard Capsule Filling Machine is used for hard capsule powder/granule filling
in size 000, 00, 0, 1, 2, 3, 4 capsule,( or called 000 capsule filling machine, 00 capsule filling machine, 0 capsule filling
machine). 0, 00 means the size of capsule. is widely used in Pharmaceutical, medicine, and chemicals (powder, Pellet,
granule, pill), also can be used to fill vitamin, foodstuff and animal drug, etc.
Product Details:
On the basis of current capsule filling machine in China and foreign advanced technology, NJP-400/800/1200 etc. model
automatic capsule filling machine is innovated and developed by our own company, the whole machine is beautiful and
tidy, it's convenient to operate, the properties are excellent, the machine passed the CE qualification, and it's widely used
both in China and abroad.
1.This SINOPED NJP400 fully automatic cpaule fillg machine has Small in size, light in weight, energy savings, easy to operate and clean. The mew replaceable capsule filling station connection more easy .It only takes 15 minutes for replacing.
2.The NJP series full auto capsule filling system, which realize Opening and locking of capsule can be controlled automatically which is safe and convenient.3.Fast and safe:This capsule machinery Equipped with gate control security system and mechanical failure security system, which provides functions of automatic alarm and shutdown.Automatic alarm and shutdown will be activated when lacks empty capsule or powder.4.Rich functions designed on the HMI, including counting and displaying functions during the production, and it is able to link with printer, if needed, for printing information including date of production, lot number, quantity, etc.
5. The capsule filler machines plane cams are running in the mode of double rails, where the two axes run out separately. It can improve the operation accuracy and meanwhile eliminate the possibility of collision between the lower die and the dosage disc.
6.The capsule filling mahcine high precision cam splitter uses optical dividing head of German Zeiss. The dividing spindle is machined in the CNC all at once, which has ensured accuracy dividing of the turntable and dosage disc while the machine runs fast, thus ensuring the precision of filling. Higher precision of cam splitter also provides the machine longer service life.7.The Capsule filler high precision cam splitter uses optical dividing head of German Zeiss. The dividing spindle is machined in the CNC all at once, which has ensured accuracy dividing of the turntable and dosage disc while the machine runs fast, thus ensuring the precision of filling. Higher precision of cam splitter also provides the machine longer service life.
8.The cpasule filling machines operating cams are all processed with 20crmoti carburizing and quenching treatment, and then machined in CNC grinding machine all at once, which has ensured the accuracy and unity of the cams and provided a longer service life.
NJP series automatic capsule filling machine show:

Model	NJP200	NJP400	NJP600	NJP800	NJP1200	NJP2300	NJP3800
Capsule size #00-#5 and safety capsule A-E/poeder/granule/pellet/tablet
200	400	600	800	1200	2300	38000
>99%
3	3	3	4	5	8	11

FILLING DOSAGE FORMOUTPUT (capsule / min)CAPSULE QUAIFIED RATEPOWDER
Small-Medium Capacity capacity : SNJP400 SNJP800 SNJP1200

Model	SNJP-400	SNJP-800	NJP-1200D
Filling capacity	24000pcs per hour	48000pcs per hour	72000pcs per hour
Weight	600Kg	900Kg	1000Kg
Dimension	980×710×1880MM	1060×860×2030mm	1180×1000×2140mm
Power supply	380/220V 50Hz	380/220V 50Hz	380/220V 50Hz
Total power	3KW	5.7KW	5.5KW
Segment bores	3 holes	6 holes	9 holes
Vacuum	20m3/h-0.04-0.08Mpa	40m3/h-0.04-0.08Mpa	40m3/h-0.04-0.08Mpa
Dust collector	17.6Kpa 180m3/h	24.5Kpa 210m3/h	24.5Kpa 210m3/h
Air compression	Air consumption 5m3/h Pressure 5-7Kg	Air consumption 5m3/h Pressure 5-7Kg	Air consumption 5m3/h Pressure 5-7Kg
Water source	500L/h 0.1-0.2Mpa	500L/h 0.1-0.2Mpa	500L/h 0.1-0.2Mpa
Operating noise	<75DB(A)	<75DB(A)	<75DB(A)
Filling percentage	Empty capsule 99.9% filled capsule 99.8%	Empty capsule 99.9% filled capsule 99.8%	Empty capsule 99.9% filled capsule 99.8%
Capsule size	00,0,1,2,3,4,5# safety capsule A-E	00,0,1,2,3,4,5#	00,0,1,2,3,4,5#
Filling accuracy	Western medicine ±3% Chinese medicine ±4%	Western medicine ±3% Chinese medicine ±4%	Western medicine ±3% Chinese medicine ±4%
Suitable for	Powder, Granule, Pellet, Tablet.	Powder, Granule, Pellet, Tablet.	Powder, Granule, Pellet, Tablet.

Part of SINOPED Related Pharmaceutical Machinery:
Factory Processing Workshop Display:
Factory Office Building:
Exhibition and Cooperation:
SINOPEDTeam Photo:
SINOPED is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We belong to SINOPED International Group.
We have a well-experienced team to manufacture pharmaceutical machinery and equipments and a professional design institute.With rich experiences in pharmaceutical machinery and equipment field and numbers of professional engineers, we have designe and developed many types of machinery and equipments including clean room project, soft-gel production line, glass-lined reactor,fermentor, centrifuge, granulator, mixer, dryers, pulverizer, tablet press, soft and hard blister packing machine, capsule filling machines, cartoner and rollers, etc.
Due to our good credit and service, , we have made great achievements in the past years. We have established long-term business relations with many customers and some of our overseas customers have appointed us to be their purchase agency in China. Our products are exported to many countries & areas, such as Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan,Denmark, Romania, Bulgaria, Russia, South Africa, Nigeria, the USA, Australia, Canada, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In SINOPED you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.One-year warranty period for whole machine except of tubes and human factors etc, and 12-month of after-sale service from the date when you receive machine or 12 months when installation finished; Consultant services for whole machine life, and 24 hours technical support by email; UPS, English software, user manual and the installation & debugging by our experienced technicians.
