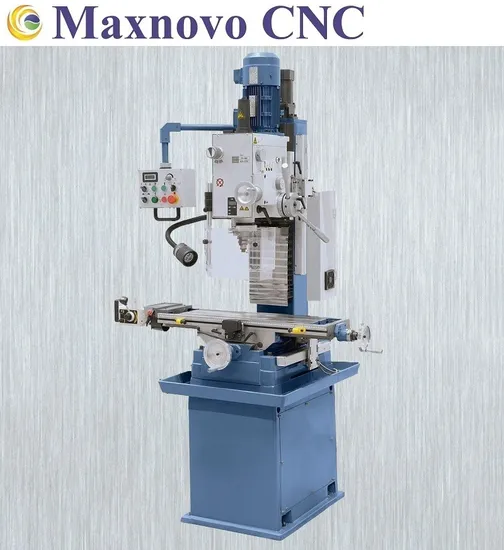

Variable Speed Gear Drive Bf45vs Universal Drilling Milling Machine with Frequency Inverter

Product Description

MM-BF45VS - Variable Speed Gear Drive Universal Drilling Milling Machine with Frequency Inverter - MAXNOVO MACHINE
This kind of MM-BF45VS is High Precision Gear-drive Variable Speed Universal Drilling Milling Machine with Advanced Frequency Inverter which is been made in ISO9001 factory from MAXNOVO MACHINE with CE Certification. It features Electronically Controlled Continuously Variable Speed, Automatic Spindle Feed, Motorized Height Adjustment of Milling Head, Working Table Power Feed on X-axis, Lifting Motor, Coolant System, LED working light, solid machine stand with coolant groove and Safety Precautions in accordance with CE-standards.
Product Description

Infinitely Variable Speed Gear Drive Universal Drilling Milling Machine with Advanced Frequency Inverter and Automatic Spindle Feed
Main Feature :
Facts that impress in terms of quality, performance and price Use Advanced Frequency Inverter (Delta Brand) ensures Variable Speed with Powerful Torque Electronically Controlled Continuously Variable Speeds Range from 75 - 2750 RPM Max. Drilling Capacity 45 mm with Drilling and Thread Tapping Function Gear Drive Headstock Automatic Spindle Feed with manual fine feed Motorized Table Feed on X-axis Motorized Positioning of Milling Head on Z-axis Solid Dovetail Guiding in X-axis, Y-axis and Z-axis , Adjustable by Gibs Gear head inclined through ± 60 degree Heavy, Solid Cast Design and Adjustable Cleats Automatic Table Feed with Rapid Feed allows quick table adjustment in X-axis Automatic Spindle Feed and Thread Cutting Function come standard Smooth action due to polished gear-wheels running in an oil sump Right-handed / Left-handed rotation Solid machine stand base eliminates vibrations Motorized cutter head movement and hand-wheel for exact positioning of head Single-Speed Premium industrial quality 1500W powerful electrical main motor Rigid base with storage room is included Hand-wheel for quill micro-feed Premium cast-iron machine frame with adjustable dovetail guides on all axes Hardened gear racks and shafts for quiet operation and long life Solid and Generously dimensioned Cross Table with Precision Surface finish Coolant System and Machine Lamp Milling head tilts to both sides for Angular boring, groove milling and more Connecting Voltage is Single Phase 230V or Three Phase 400V 3-axis Digital Position Indicator is optional Certificate of Original (CO, FORM A, FORM E, FORM F) Certificate of Original (CO, FORM A, FORM E, FORM F)
Product Parameters

Technical Data :

Product Name :	Variable Speed Drilling Milling Machine with Frequency Inverter
Product Item :	MM-BF45VS
Drive Type :	Gear-head Drive with Advanced Frequency Inverter
Drilling Milling Capacity
Max. Drilling Capacity :	Ø 45 mm
Max. Face Milling Capacity :	Ø 80 mm
Max. End Milling Capacity :	Ø 32 mm
Cross Table
Table Size :	800 X 240 mm
Distance from Spindle to Cross Table :	460 mm
T-slot Size :	3 piece X 14 mm (width) X 80 mm (spacing)
Drilling Milling Head
Spindle Speed :	75 - 2750 rpm (Electronically Controlled Variable Speed)
Head Swivel Range :	± 45 degree
Spindle Seat
Spindle Sleeve Stroke :	120 mm
Spindle Taper :	MT4
Spindle Sleeve Diameter :	Ø 75 mm
Throat :	258 mm
Travels
X-axis Travel (Longitudinal Travel) :	560 mm
Y-axis Travel (Cross Table Travel) :	195 mm
Z-axis Travel (Vertical Head Travel) :	350 mm
Drive Capacity
Main Motor :	1500W
Lifting Motor :	90W
Connecting Voltage :	Single Phase 230V or Three Phase 400V
Gross Weight :	548 KGS
Packing Size :	1680 X 950 X 2160 mm
Packing Type :	Export Type Wooden Case
Standard Accessory :	Frequency Inverter, Automatic Spindle Feed, Machine Base, Cross Table Power Feed (X-axis), Lifting Motor for Mill head, Coolant System, Machine Light, Morse Taper Drill Sleeve, Drill Chuck, Drawbar M16, Tools and Toolbox
Optional Accessory :	3-axis Digital Position Indicator is optional spare part

Our Advantages
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance. Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE. The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines . Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts. The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards. In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy. Intensively Production Since 2003 the MAXNOVO MACHINE produces a large part of its metal working machines in its own factory in Yangzhou in China.
There, the quality is controlled by the Germany Quality Management Representatives on-site. The final assembly and commissioning
of our MAXNOVO MACHINE products provide added value and allows perfect long-term working with the machine.
We never compromise on any materials validation and accurate quality control (IQC, IPQC, OQC) from start to finish.
From all the production material even a single resistor or a single cable, to hardware functions and sample test,we check
all the components and each possible performance of them. With every product we supply, we will make sure there is no mistake.
But due to some unavoidable reasons, if your purchase products from us are proven to be defective,we always
would take responsibility and take effective actions immediately for you.
High Precision Milling Machine for Demanding Users !
