1/4 Fold 1/8 Fold Serviette Napkin Tissue Paper Making Folding Machine 240*240 300*300 330*330 400*400

Product Description

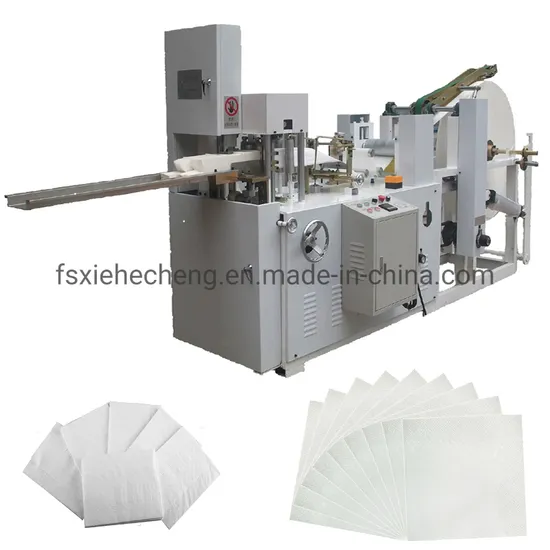

1/4 Fold 1/6 Fold 1/8 Fold Automatic Serviette Napkin Tissue Paper Folding Machine

Capacity	400-600pcs/min
Finished Products unfolded Size(mm)	(230x230)-(460x460)
Folded Size(mm)	(115x115)-(230x230)±2
Raw Material Diametere(mm)	1200 (Other sizes are available)
Raw material Core Diameter(mm)	76.2(Other sizes are available)
Counter	Electronic counting
Driving Unit	Frequency conversion speed regulator
Color printing	Flexographic printing
Printing unit driving type	Gear-box driving(printing)
Tension regulation	Imported automatic constant paper tension controller
Printing system A	Machine stop and automatic using ink
Anilox roll	Ceramic anilox roll 200-500line
Embossing Unit	Steel to Felt. Steel to Rubber. Steel to Paper, Steel to Steel
Calendering	Steel to Rubber, Steel to Steel
Printing system B	Automatic Ink Circulator System (Option)
Color Matching	Automatic Microcomputer color printing matching System (Option)
Monitor System	Image detecting System,automatic stop when paper break(Option)
Web Guiding System	Option
Power	2~7.5kw
Dryer	hot wind drying system 10-15kw
Dimension(L×W×H)	5900x1600x2290
Weight	5000-6500kg
Color printing	1-4colors
Printing system B	Automatic Ink Circulation System
Color Matching	Automatic Microcomputer color printing matching System
Monitor system	Image detecting System
Anilox roll	Ceramic anilox roll 200-500line
Calendering	Steel to Rubber, Steel to Steel
Web Guiding System	Option

Automatic Serviette Tissue Napkin Tissue Production Line

XHC-CJ-A	Napkin tissue folding machine
Machine size				2380*750*1570mm	Folding way	1/4, 1/6 ,1/8 so on
Width of tissue				200-400	Dia. of tissue	<=1200mm
Speed				600Pcs/min	Counting	Electronic
Total power				2-5kw	Embossing	Steel to rubber/steel to steel/steel to paper (optional)
XHC-FD-C		Automatic napkin tissue transfer
PCS/bag				10-100pcs	Air pressure	0.5-0.6Mpa(User supplied)
Total power				0.5-2kw	Voltage	380V 50-60Hz(Three phase)
Speed				10-40bags/min	machine weight	500-1000kg
XHC-FJ50A/B/C			Automatic napkin tissue packing machine
Machine size				2840*2650*1720mm	Air pressure	0.5-0.6Mpa(User supplied)
Production size				A(70-110)*(65-105)*(20-55)mm B(105-130)*(80-125)*(20-55)mm C(125-140)*(90-135)*(20-55)mm	Voltage	380V 50-60Hz(Three phase)
Speed				25-70bags/min	machine weight	about1500kg
Total power				4.68-5kw	packing material	CPP PE CPP PE and so on

Main features
1 Adopts advance control of SIEMENS' PLC programming and touch screen to set up.
2 Adopts trouble tracing and alarm system, the trouble can be found and solved more easily.
3 The driving system adopts advance variable frequency speed regulating control and drive with stepping motor, has the features of accurate control and locating compact matched movement.
4 With the automatic oil-filling circular lubricating system, the use life of the machine parts have been extended greatly.
5 With adopting static electricity removing device, the packing effect is more perfectible.
6 With the intelligent tem-controllor, the temperature adjustment is flexible.
7 It can be equipped with auto-perforating device, which is for various tear-off outside.
8 Automatically print production date and the location can be adjusted from up to down, from left to right.
Oure Certificate
Loading & Shipping
Why Choose Us 1. We are specialized in manufacturing Automatic tissue machine for 10 years. 2. We have a whole complete service, include researching, designing, manufacturing, selling and after-sale service. To keep the best product what you want. 3. Our company located in Nanhai, Foshan city which near Guangzhou and HongKong. It's expedient to export for us. 4. 100% QC inspection and debugging before shippment. 5. 100% rest assured after-sales service. Our service
Pre-sale service
Our professional sales team provide the professional consultation and best solution for actual situation and budget. Our professional researching-designing department can design the specific specification machine what you need
After-sale service
1.We provide door to door installation, equipment debugging technical training service and so on.
2. Warranty: 1 year quality assurance.
3. Our after-sale team have a rest assured global presence service even over the warranty period for you.
