Wireless Presentaion Gateway Educational Equipment
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Transfer Rate
10/100/1000Mbps
Ports
≤4
Port Structure
Not Modular
Application
Enterprise, SOHO, Educaiton or Metting or Home
Video Input Resolution
Can Do 4K/3840X2160
Video Output Resolution
Can Do 1080P/1920X1200
Fps
30
Display Proportion
Equal Ratio 4:3 16:9 16:10
Displays The Number of Sources
Max 1 or More
Transport Package
Cartons
Trademark
SUNSON
HS Code
88888888
Production Capacity
100000PCS /Year
Product Description
A-200A-200 belongs to A series, which aim to provide solutions to have more efficient presentation and better decision-making.

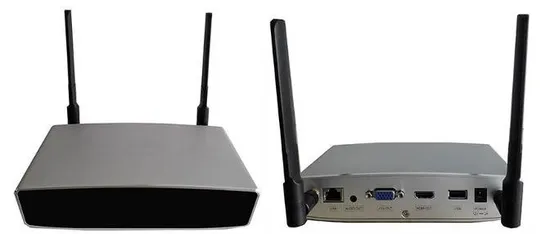

Appearance
Base Unit
Key Features One-click to wirelessly share content from PC or laptop Using 2.4GHz or 5GHz band to guarantee a great wireless connection Provides a runtime executable software that does not require installation iOS/Android portable devices compatibility Dual display with HDMI and VGA outputs Supports auto scaling Application
Specifications*
| Technical | |
| Input | USB, Type A male |
| Output | 1 x HDMI, Type A 19-pin female 1 x VGA, D-SUB female 1 x Stereo out, 3.5mm ear jack |
| Recommended operating system | Windows 7/8.1/10, 32/64 bit, Mac OS X 10.10/10.11/10.12, Android 5.0/6.0, iOS 9/10 |
| Input resolutions support | Up to 3840x2160 |
| Output resolutions support | HDMI: Up to 1080P VGA: Up to WUXGA(1920x1200) |
| Frame rate | Up to 30 fps |
| Audio | PCM stereo |
| Audio Bit | 16bit |
| Audio Sample Rate | 44.1KHz |
| Wireless transmission technology | Wi-Fi |
| Band | 2.4GHz, 5GHz |
| Reach | Max. 30m (100 ft.) between Button and Base Unit |
| Wireless transmission protocol | IEEE 802.11n/ac |
| Data rate wireless | Up to 867Mbps |
| Authentication protocol | WPA2-PSK |
| Encryption | AES CCMP |
| Number of simultaneous on screen | 1 |
| Number of simultaneous connections | 16 |
| iOS/Android portable devices compatibility | iOS/Android mirroring |
| System requirements | PC minimum requirements: CPU: Intel Pentium Dual Core, 1.83GHz Memory: 2048 MB RAM PC recommended requirement: CPU: Intel Pentium Dual Core, 2.6GHz Memory: 4096 MB RAM MAC: CPU: Intel Core 2 Duo Memory: 2048 MB RAM |
| General | |
| Operating Temperature | 41~104°F (5~40°C), 10% to 90%, noncondensing |
| Storage Temperature | 14~140°F (-10~60°C), 10% to 90%, noncondensing |
| Humidity | 10% to 90%, noncondensing |
| ESD Protection | Human body model: +/- 8KV (air-gap discharge) +/- 4KV (contact discharge) |
| Power Supply | 12V DC |
| Power Consumption (Max.) | Base Unit: 6 Watts Button: 2 Watts |
| Device Dimension (W x H x D) | Base Unit: 7.4"x1.6"x4.3" (188mmx40mmx110mm) Button: 3.2"x0.6"x2.0" (80mmx15mmx50mm) |
| Package Dimension (W x H x D) | 11.7"x2.4"x8.7" (298mmx61mmx221mm) |
| Weight | 4.19 lbs. (1.9kg) |
