Motion Sensor for Industrial Doors, Gates & Warning Indication

Product Description

Product Description

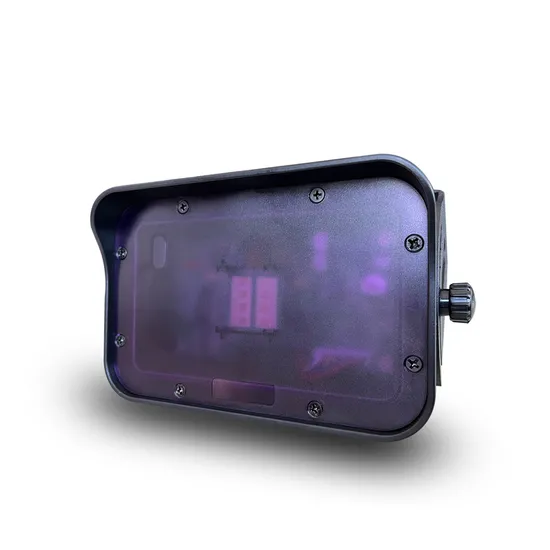

24GHz Microwave Radar Sensor The RVP42-9M microwave sensors have been specially designed to increase the comfort of opening all types of automatic doors. The RVP42-9M microwaves provide fast detection for all automatic door installations and particularly for applications with high-speed entries. Due to the industrial design and easy installation, these sensors will fit on every header or ceiling in any application you can imagine.
What is the advantage of JUTAI industrial radar?
Check the following details
opening sensor and safety sensor for high-speed door Feature:
1. Two independent outputs, separate detection of people/vehicles;
2. Can block lateral movement
3. Slow detection function
4. Installation height 2m-9m
5. Detection area up to 6.5m×8.5m Simple and practical and powerful
A. Can be installed outdoors, IP65 protection grade.
B. The bracket can be adjusted 180°, easy to use.
C. The slow detection function can effectively detect the front fork and pedestrians of the forklift.
D. Dual independent outputs for people and vehicles, and the sensor can also be used in applications where only people are detected.
E. Widely used in various industrial doors, garages and other occasions. Safety sensor: The SS28 device is composed of a transmitter unit and a receiver unit, both contained within sturdy aluminum profiles. Beams of infrared rays are generated capable of detecting the presence of people and / or objects when interrupted. The communication between the transmitter unit and the receiver unit is carried out optically and, therefore, no electrical connection between the two units is necessary.
To avoid reflsections and / or reception errors, a unique identification code is set for each infrared beam. When an object, limb or body of a person interrupts the beam of rays emitted by the transmission unit, the output is immediately opened by the receiver unit, with consequent blocking of the automation. The system is only safe when the TEST system is used, this allows you to check the correct functioning of the barrier (see par. Safety test)
It is a 24G millimeter-wave radar that can distinguish between pedestrians and vehicles by analyzing the characteristics of the human body and vehicle movement and electromagnetic reflection characteristics. It can accurately determine the vehicle's driving direction and filter pedestrians. Users can choose one-way (toward) detection or two-way detection according to actual needs.
Product Parameters Specification

Application technology	Doppler radar
Transmission frequency	24.125 GHz
Transmission power	<20dBm
Detection height	2.0m to 9.0m
Angle adjustment	0°-180° longitudinal
Detection speed	5cm/s~25km/s
Detection area(30°Angle)	3.0m*3.5m @ height: 2m 6.5m*8.5m @ height: 9m
Operation voltage	12~28 VAC, 12~36 VDC
Operation current	Max. 75 mA
Power frequency	50 hz
Temperature range	-30ºC to+60ºC
Relative humidity	0% to 95%, no condensation
Waterproof grade	IP65
Relay output	Max.48 VAC/DC, Max. current 1A
External dimensions	162mm × 110mm × 65mm
Cable length	7 m
Sensor weight	400 g

Our Advantages
Detection Area The microwave range offers a narrow or wide detection area that makes it suitable for all types of installations. The narrow setting is easy to set by simply clicking the narrow lens onto the radar module. By turning the module left or right and tilting it up and down the microwave can be adjusted quickly and easily for many different applications. No external set-up device is needed. Adjust the detection area with a Sensitivity potentiometer.
Dual Relays Outputs It is a fully customizable, hands-free radar motion sensor equipped with dual relays:
Vehicle-detection relay active
Person-detection relay active
Vehicle-detection relay and person-detection relay both active
The below setting shows only active the vehicle-detection mode, not for person-detection. it can be set according to your project requirement.
Direction Recognition It can be set the direction detection: 1. motion forward and close to the sensor 2. backward movement away from the sensor 3. Forward and backward.

Energy Savings
It increases energy efficiency and controls pests by limiting activation to approaching traffic only. Meaning the door will only be left open when someone is using it, and will automatically close when they depart.
Speed up workflows
Open doors without having to stop and push a button. Install or Retrofit For both dock and pedestrian doors with automated solutions.
Adjustable Detection Settings modes of detection filtering for pedestrian, forklift, and parallel traffic rejection. It can also distinguish between approaching and departing traffic.
Remote Control Adjustments
Remote control programming enables the user to quickly and safely make changes from the ground.
Applications
Factory entrances
Pedestrian and parallel traffic rejection
Parking garage detection
Barrier arm activation
Details of JUTAI Radar
