Brass, Cast Iron or Forged Stainless Steel Electric & Pneumatic Industrial Floating Ball Valve with Thread / Screw NPT or Bsp Ends
| US$145.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Q41F
Driving Mode
Manual
Nominal Pressure
ANSI CLASS 150-900
Channel
Straight Through Type
Structure
Floating Ball Valve
Type
Floating Ball Valve
Function
Blow-Down Valve
Temperature
Normal Temperature
Application
Industrial Usage, Water Industrial Usage, Household Usage
Size
1/2"~6"
Pressure
150lb-900lb
Approved by
Ce, ISO
Ball Type
Floating Ball Valve
Body Material
Stainless Steel Ball Valve
Design
API 6D / ASME B16.34
Pre. & Tem. Rating
ASME B16.34
Face to Face
ASME B16.10
End Connection
ASME B16.5
Test & Inspection
API 598 / API 6D
Transport Package
Sea Worthy
Specification
API, ANSI, ASME, BS, DIN, JIS, GB etc.
Trademark
VATAC or OEM
Origin
China
HS Code
84818010
Production Capacity
6000TON per Year
Product Description

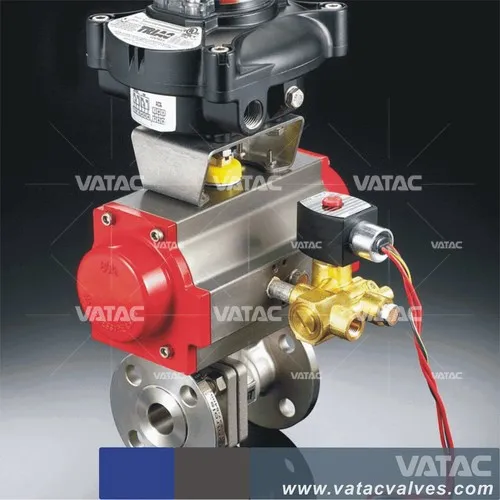

Cast Iron or Forged Stainless Steel Electric & Pneumatic Floating Ball Valve with Screwed NPT or BSP Ends Conform to API 6D, BS5351, and ASME B16.34, They are tested according to API 598, and marked as per MSS SP-25.
1. Construction is as follows:
- Full Port or Reduce Port
- Split Body
- Bolted Bonnet with spiral-would gasket
- Fire Safe Design
- Anti-static Design & Blow-out proof stem
- Double seat structure
- Butt Weld Ends to ASME B16.25
- Flanged Ends to ASME B16.5
2. Main Part & Materials
| Part Names | Part Materials | ||||||
| Body | A105 | LF2 | F22 | F304 | F316 | F304L | F316L |
| Bonnet | A105 | LF2 | F22 | F304 | F316 | F304L | F316L |
| Ball | A105+ENP | SS304 | F22 | SS304 | SS316 | SS304L | SS316L |
| Stem | A105 | F304 | F6a | F304 | F316 | F304L | F316L |
| Seat/Seat Ring | 13%Cr | SS304 | 13%Cr | SS304 | SS316 | SS304L | SS316L |
| Packing | Graphite/PTFE | ||||||
| Gasket | SS304+Graphite/SS304+Graphite | ||||||
| Bolts/Nuts | B7/2H | L7/4 | B16/4 | B8/8 | B8M/8M | B8/8 | B8M/8M |
| Suitable Medium | W.O.G etc. | HNO3, CH3OOH etc. | |||||
| Suitable Temperature | -29~425 °C | -46~340 °C | -46~340 °C | -196~427 °C | -196~427 °C | -196~427 °C | -196~427 °C |
3. Normal Pressure Rating
PN10~PN420, CLASS150~2500
4. Normal Size Range
DN50~DN1000, 2"~40"
5. Pictures
Final Inspection
Shipment
