Versatile CNC Beam Drilling Machine for Steel Plates

Product Description

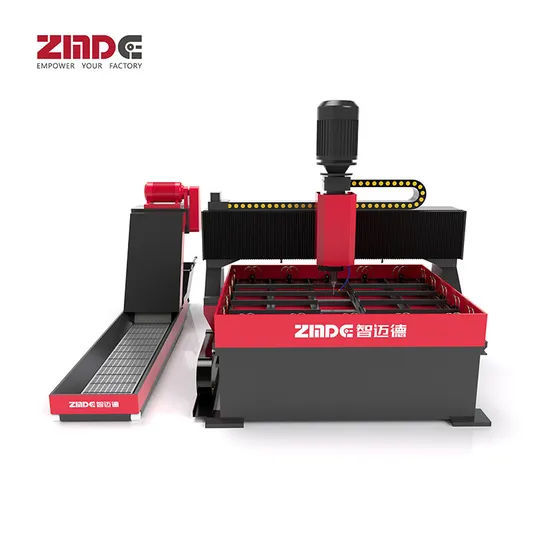

ZMDE Precision CNC Drilling Machine for Steel Plates Beam Drilling Machine for Beams

>Cost-effective equipment that delivers unmatched performance <
1. Engineered from robust materials, this equipment boasts a low failure rate, drastically cutting down maintenance costs. Featuring top-tier components such as ball screws, linear guides, hydraulic parts, electrical parts, servo motors, and frequency converters, all sourced from renowned industry brands.
2. The CRT display offers automatic chip removal, eliminating the need for manual cleaning and saving valuable time.
3. Exceptional precision ensures high qualification rates for workpieces, substantially reducing consumables' costs.
>Simple operation and unparalleled productivity <
1. The intuitive human-machine interface simplifies operations, generating automatic machining programs seamlessly.
2. Precise positioning is achieved through advanced CNC and PLC control systems.
3. Hydraulic clamps securely hold workpieces, operated conveniently by a foot switch, making the process labor-saving.
4. Equipped with 12 fast hydraulic clamps spread around the table, enabling simultaneous clamping of four groups of workpieces.
5. Small workpieces can be clamped at the table's four corners, significantly reducing the production preparation cycle and boosting efficiency.
6. The ability to clamp small workpieces at the table's corners further shortens the production preparation period, enhancing productivity.
> Guaranteed quality with versatile applications <
1. Critical components such as the gantry, column, and table are constructed from solid materials, with the main machine weighing up to 6300kg, ensuring durability.
2. This versatile machine serves a wide range of industries, becoming the essential core equipment for plate processing.
3. Accommodates a broad spectrum of drilling diameters, ranging from 12mm to 50mm.
> Versatile for various production scenarios <
1. Ideal for continuous production of multiple batches of single flat-type workpieces.
2. Perfect for small batch production of diverse workpieces, handling various plate shapes like rectangular, round flange, polygonal, etc. It can process two or four different plate specifications simultaneously.
3. Efficiently produces multiple layers of thinner sheets in stacks, with a maximum stacked thickness of 100mm for drilled holes.
4. Automated software precisely processes start and end points, capable of drilling through holes, blind holes, step holes, and hole end chamfer.
> Automation in the production process <
1. Features integrated line board for high automation, with automatic positioning per the drilling program.
2. Adjusts the optimal feeding volume for various hole diameters, ensuring efficiency.
3. Capable of automatic and continuous processing of large hole diameters, achieving single-step processing and forming.
4. Includes an automatic chip removal function for seamless operation.
Technical Parameters

Model		ZMD-Z2016
Workpiece Size	Thickness of material stacking(mm)	100
	Length×Widthhhhh (mm)	2000×1600 One piece
		1600×1000 two pieces
		1000×800 Four pieces
Workpiece clamping	Number of clamping cylinders 12	Clamping force7.5Kn/1pc.
Vertical hydraulic type Drilling power head	Number of spindles	1piece
	Spindle taper hole	morse.taper 5#,4#
	Maximum drilling diameter	50mm
	Spindle speed (frequency conversion stepless)	100-560rpm
	Work feed speed	20-200mm/min(hydraulic speed regulation)
	Spindle feed stroke	190mm
	Spindle motor power	5.5KW
Gantry longitudinal movement (X-axis)	Maximum stroke	2000mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Power head lateral movement (Y-axis)	Maximum stroke	1600mm
	Traveling speed	0-5m/min
	Servo motor power	1KW
Hydraulic system	System pressure/flow	6MPa/30L/min
	Hydraulic pump motor power	2.2KW
	Oil tank capacity	100L
Chip removal and cooling	Form of chip conveyor	Chain plate type
	Number of chip conveyor	1
	Chip discharge speed	1m/min
	Power of chip removal motor	0.75KW
	Cooling pump motor power	0.75KW
	Liquid system pressure	5MPa
CNC System	Upper-computer software	ZMDE
	Number of numerical control axes	2
Total installed power	11KW
Machine Outline Dimension	L×W×H	4210×2605×2850mm
Weight	Main machine	Approx. 4300Kg
	Chip removal system	Approx. 500Kg
