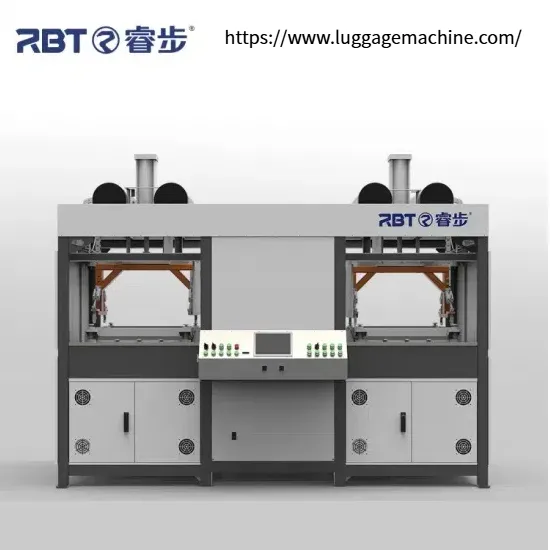

Luggage Vacuum Making Machine/Plastic Sheet Vacuum Forming Machine/ Suitcase Thermoforming Machine

Product Description

Freely contact us for any inquiries or assistance regarding your luggage suitcase business startup!
the manufacturing plant covers an area of about 26,660 square meters:
Material-welding assembly and debugging integration:
warehouse:
Parameters(for reference)

RB-A8-20/24/28 Luggage vacuum forming machine Model RB-A8-20 RB-A8-24 RB-A8-28 Sheet Material and Thickness ABS,PC etc;1-4mm Input power 380v±10%,50HZ Vacuum capacity (M³) 0.2M³ 0.3M³ 0.35M³ Vacuum pressure (MPA) -0.07 ~ -0.09MPA Air pressure (MPA) 0.65-0.75MPA Air consumption (L / MIN) 550L/MIN 650L/MIN 800L/MIN Total machine power (KW) 39.5KW 49KW 55KW Working power (KW) 35KW 44KW 50KW Power copper wire model 16mm2 16mm2 25mm2 ABSABS case max. output (pcs / H) 110 105 90 PCPC case max. output (pcs / H) 85 80 70 Machine Type 20inch 24inch 28inch Maximum mold size (L*W*H ) 600*420*200MM 690*510*200MM 780*600*200MM Maximum sheet size (L*W*H ) 730*550MM 830*650MM 930*750MM Maximum frame size (L*W) 680*500MM 780*600MM 880*700MM Machine weight (T) 2.0T 2.0T 2.1T Overall dimensions(L*W*H ) 3000*1700*2450MM 3300*1700*2450MM 3600*1850*2500MM

Machine advantage features:
1. Precision Molding: Ensures accurate and consistent shaping of suitcases, resulting in high-quality end products.
2. Versatility: Capable of processing a variety of materials, including ABS, PC, and polypropylene, making it suitable for diverse luggage designs.
3. High Efficiency: Streamlined production processes reduce manufacturing time, increasing overall output.
4. Cost-Effective: Reduces material waste and labor costs through efficient design and automation, leading to lower production costs.
5. User-Friendly Interface: Many machines come equipped with advanced control systems that make operation and adjustments easy for operators.
6. Durability: Built with robust materials and engineering, these machines offer long-lasting performance and reliability under continuous use.
7. Customizable Designs: Offers flexibility for producing various suitcase styles and sizes, accommodating unique customer requirements.
8. Environmentally Friendly: Some models are designed with energy-efficient features and the capability to work with recyclable materials, reducing the environmental impact.
9. Rapid Production: Facilitates quick changeovers and setup, allowing manufacturers to respond swiftly to market demands.
10. Advanced Cooling Systems: Helps in maintaining optimal temperatures during the forming process, ensuring higher quality and consistency in the final product.
Some Cooperation customers:
packing&delivery:
1.Plastic film packaging and put in plywood wooden cases or according to customer's requirements.
2.Shipping : Container transport.
FAQ:
Q: What is vacuum forming in relation to luggage manufacturing?
A:Vacuum forming is a manufacturing process used to shape plastic sheets into custom designs, such as the shell of a luggage case. The plastic sheet is heated until pliable, then draped over a mold and vacuum-sealed to take the shape of the mold.
Q: What types of materials are commonly used for vacuum forming luggage cases?
A:Common materials used include ABS (Acrylonitrile Butadiene Styrene), polycarbonate, and polypropylene. These materials are chosen for their durability, impact resistance, and lightweight properties.
Q: How does vacuum forming compare to injection molding in luggage manufacturing?
A:Vacuum forming is generally more cost-effective for smaller production runs and offers quicker turnaround times for prototypes and custom designs. Injection molding, while more expensive initially due to tooling costs, is beneficial for large-scale production due to its efficiency and precision.
Q: What are the advantages of using vacuum forming for luggage cases?
A:Advantages include lower manufacturing costs for small to medium production runs, faster prototyping, the ability to create complex shapes with fine details, and reduced material wastage compared to other molding methods.
Q: Can vacuum-formed luggage cases be customized?
A:Yes, vacuum forming allows for a high degree of customization, including variations in shape, texture, color, and the incorporation of logos or other branding elements. Modifications to the mold can easily accommodate design changes.
Q: Are there any limitations to using vacuum forming for luggage cases?
A:Some limitations include the potential for less structural strength compared to other manufacturing methods like injection molding, possible variations in material thickness, and the initial cost and time required to create the molds.
Q: How is the quality of a vacuum-formed luggage case ensured?
A: Quality control measures include using high-quality materials, precise mold design and fabrication, maintaining consistent heating and vacuum settings, and conducting thorough inspections of the finished products for defects.
Q: What post-processing steps are involved in vacuum forming luggage cases?
A: After vacuum forming, the plastic shell may require trimming to remove excess material, drilling or cutting for features like handles and zippers, and assembly with other components like wheels, handles, and linings to complete the luggage case.
