Nc Series Metalworking Steel Plate Double Side Milling Machine

Product Description

Nc Steel Plate Double Side Milling Machine Series
Product Description
Overall description:
Newly developed CNC machining equipment, an embodiment of advanced milling technique around the world. Ideal equipment as the replacement of beveling machine for the large plate edge miling. Applied to pressure vessel industry, ship building industry, petrochemical industry, construction engineering, steel structure, etc. The efficiency is 10-15 times the general milling. Multiple types of bevels like X.Y.V.U are available.
Main technical parameters:

ltem	SCX-1500	SCX-3000	SCX-4500	SCX-5500
Machining type	Consecutive milling	Consecutive milling	Consecutive milling	Consecutive milling
Plate length	6000-12000	6000-12000	6000-12000	6000-12000
Plate width	670-1500	800-3000	1500-4500	1500-5500
Plate thickness	4-20	20-50	40-80	40-200
Machining allowance on one side of plate	5-10	5-10	4-8	4-8
Bevel type	x,Y,V,U	x,Y,V,U	x,Y,V,U	x,Y,V,U
Milling unit	2	4	4	6
Diameter of cutting tool	Φ315	Φ600	Φ800	Φ800
Motor power	96KW	190KW	220KW	290KW
Machining time( min/piece)	6-10	10-15	12-18	15-20
Overall dimension	30000x6500x2000	33000x8000x3000	33000x10000x3200	42000x12000x3200

Note: customized parameter is available.
Features:
1.Synchronous 2-side milling, highly effective and automotive, CNC controlled.
2.High parallelism of the milled edges(0.2mm/m), and width precision is within 0.5mm.
3.Easy to operate by pressing one button, and the machining process will be done on the basis of the program set by the operator.

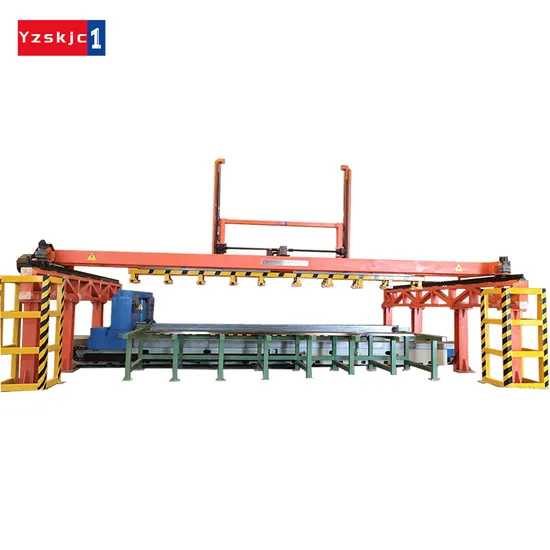

Machine photos:
Company Profile
Jiangsu Yizhong CNC Machine Tool (Group) Co., Ltd is a Top machine tool factories for plate processing in China, which set up in 2006, located in Chengbei industrial area, Yangzhou city, Jiangsu province.
It covers an area of 498700 square meters and nine production lines. We're also the National Torch Plan and High-tech enterprise.
Our main products includes CNC lathe , CNC machine center ,Plate rolling mchine (also production line ),Plate hydraulic press machine ,Plate leveling machine ,late Planer and milling machine,plate cutting machine . Meanwhile , with a powerful technician team, OEM machine is our strong suit .
With many years' hard-working, we have built long term and close cooperation relationships with many friends, such as Russia, Australia, United Kingdom, Italy, South Americas, Egypt, India and so on,welcome
your consulting .
