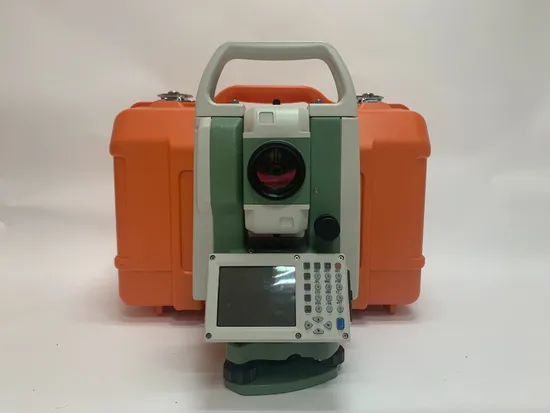

Excellent Foif Rts382 R10 Total Station High Precision Instrument
Basic Info.
Model NO.
FOIF RTS-382 R10
Range Finding
3-15km
Accuracy
2mm
Vertical Lines
1
Horizontal Line
1
After-Sales Service
Professional Guidance
Warranty
1 Year
Precise Measurement
0.3s
Minimum Display
0.1mm
Angle Measuring Method
Absolute Encoding (Code Disc Diameter 79mm)
Minimum Reading
0.1″/1″/5″
Erect
Transport Package
Carton
Specification
50*40*40 cm
Trademark
FOIF
Origin
Suzhou, China
HS Code
9015800090
Production Capacity
5000
Packaging & Delivery
Package Size
50.00cm * 40.00cm * 40.00cm
Package Gross Weight
10.000kg
Product Description
Product Description 1. Prism-free measuring range;2. Laser pointing, automatically open when not ranging,
which is convenient for aiming at the target in a dark environment;
3. Double-sided color QVGA display;
4. Laser plummet, clearly visible in sunlight, adjustable brightness;
5.With 4G memory; support SD card expansion.
Detailed Photos
Product Parameters
| Distance measurement | |
| RTS382 | 5000m/single prism |
| RTS382R5 | 500m/non-prism; 800m/reflector; 5000m/single prism |
| RTS382R6 | 600m/non-prism; 1000m/reflector; 5000m/single prism |
| RTS382R8 | 800m/non-prism; 1200m/reflector; 6000m/single prism |
| RTS382R10 | 1000m/non-prism; 1200m/reflector; 6000m/single prism |
| Precise measurement | 0.3S |
| Precision | ±(2mm+2×10-6·D) |
| Minimum display | 0.1mm |
| Angle measurement | |
| Angle measuring method | Absolute encoding (code disc diameter 79mm) |
| Accuracy | 2″ |
| Minimum reading | 0.1″/1″/5″ |
| Telescope | |
| Image | Erect |
| Field of view | 1°30′ |
| Objective lens effective aperture | Φ48mm |
| Resolution | 3″ |
| Magnification | 30X |
| Shortest sight distance | 1.0m |
| Compensator | |
| Compensation method | Double axis compensation |
| Compensation range | ±6′ |
| Power | |
| Voltage | 7.4V DC(rechargeable lithium-ion battery) |
| Working time | ≥ 12 hours |
| Others | |
| Display | 2.7-inch color display on both sides |
| Communication | RS-232C/USB/SD card copy |
| Waterproof and dustproof | IP66 |
