Manufactured in China Elevator Guide Rail Yin Yang Tenon Horizontal CNC Milling Machine with AC Servo Motor

Product Description

Product Parameters
Horizontal CNC milling machine with cathode rod for elevator guide rail

ITEM	UNIT	YY0006
Guide specifications for processing		T75-T140
X-axis stroke	mm	30
Z-axis stroke	mm	500
Spindle motor power	kw	7.5
X axis positioning accuracy	mm	0.01
X axis repeated positioning accuracy	mm	0.005
Spindle speed (variable frequency speed regulation)	rpm	320~630
Taper of spindle		BT50
Maximum output torque of main shaft	Nm	200
Working feed speed	mm/min	10-500
CNC system		FANUC Oi mate MD

Horizontal CNC milling machine with cathode rod for elevator guide rail

ITEM	I UNIT I	YY0007
Guide specifications for processing		T75-T140
X-axis stroke	mm	30
Z-axis stroke	mm	500
Spindle motor power	kw	5.5
X axis positioning accuracy	mm	0.01
X axis repeated positioning accuracy	mm	0.005
Spindle speed (variable frequency speed regulation)	rpm	320~630
Taper of spindle		BT50
Maximum output torque of main shaft	Nm	160
Working feed speed	mm/min	10-500
CNC system		FANUC Oi mate TD

• The above parameters can be designed and manufactured according to the needs of users.
• The Company will carry out R&D and innovation at any time, and the above contents are subject to change without notice.
Product Description
Horizontal CNC milling machine with cathode rod for elevator guide rail
Yang tenon horizontal elevator guide rail CNC milling machine is the company dedicated to the elevator guide rail Yang tenon design and manufacture of CNC milling machining plane with high precision and high efficiency.

Products

The machine tool bed is made of high-strength cast iron and cast by resin process. The internal stress is eliminated by heat treatment, so that the machine tool has high rigidity.

The X and Z axes of the machine tool adopt sliding guide rails

The X axis of the machine tool is equipped with a grating to improve the machining accuracy of the parts.

The fixture of the machine tool adopts the self centering clamping form.

The X axis and Z axis are driven by the AC servo motor to move the ball screw

The electrical control of the machine tool adopts the Japanese FANUC system, which has strong numerical control function, stability and reliability.

The machine tool is equipped with a programmable automatic centralized lubrication device, and all moving parts can be well lubricated.

The machine tool is equipped with independent hydraulic station in the form of superposition valve, and the reversing pump and valve of the hydraulic system are products of Taiwan HP Company

Horizontal CNC milling machine with cathode rod for elevator guide rail
Elevator guide rail tenon horizontal CNC milling Yin is the company dedicated to the elevator guide rail overcast tenon design and manufacture of CNC milling machining plane with high precision and high efficiency.

Products

The machine tool bed is made of high-strength cast iron and cast by resin process. The internal stress is eliminated by heat treatment, so that the machine tool has high rigidity.

The X and Z axes of the machine tool adopt sliding guide rails

The X axis of the machine tool is equipped with a grating to improve the machining accuracy of the parts.

The fixture of the machine tool adopts the self centering clamping form.

The X axis and Z axis are driven by the AC servo motor to move the ball screw

The electrical control of the machine tool adopts the Japanese FANUC system, which has strong numerical control function, stability and reliability.

The machine tool is equipped with a programmable automatic centralized lubrication device, and all moving parts can be well lubricated.

The machine tool is equipped with independent hydraulic station in the form of superposition valve, and the reversing pump and valve of the hydraulic system are products of Taiwan HP Company

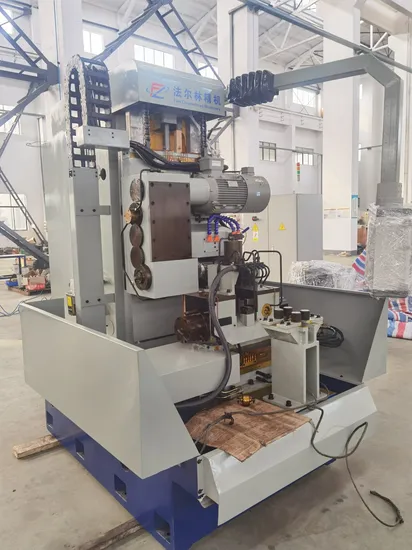

Detailed Photos


Recommended products
Company Profile
1.General Information
Changzhou Faer Lin Precision Machine Co., Ltd. is located in Bingjiang economic development zone, new north district, Changzhou , Jiangsu, China. The whole plant area is 30006m2 with 15000m2 construction area.
Our business grows dramatically during the past 5 years that the sales revenue develops from RMB 5 million in 2012 to RMB 50 millions around in 2016.
The company was evaluated as Jiangsu high-technology enterprise in 2015, that we have 22 high-technology products and more than 20 patented technologies.
Faer Lin is dedicated to build first-class technology developing system and train a expert team, in order to produce reliable automatic line and CNC special machine with high accuracy and high efficiency.
2.Company Team
Our shareholders and management team members are excellent talents from Jiangsu Duoleng CNC machine Co., Ltd.(Former was Changzhou General Machine Factory) who has more than ten years good experience in state-owned company management, product design, sales, R&D, manufacturing process and production. These excellent talents ensure we can have smooth and health development. Currently, we have 70 employees, 2 of them are certified with senior professional title, 21 with medium-grade professional title and 25 with junior professional title. It helps us to have capability to develop and manufacture first-class CNC machine and special machine.
We run and manage the company according to joint-stock company requirement since it was founded. We have clear and reasonable organization, which make sure our company operate efficiently and smoothly.
