Cardboard Paper Roll to Size Sheets Cutting Sheeting Machine Paper Roll Sheeter Cutter Machine with Four Rolls Feeding

Product Description

High Capacity Cardboard Paper Roll To Size Sheets Cutting Machine For Printing
The Only Manufacturer Who Can Make 3000mm Width Paper Roll Sheeter Machine In China
Product Description:
SCD model machine is a synchro-fly paper roll sheeter machine. The paper cutting machine can cut large paper rolls into size sheets according printing house requirements. After more than 20 years of research and development by Binbao Machinery, our double rotary cutting system has stable performance and high cutting accuracy.This type paper roll sheeter cutter machine can cut 1200gsm paper rolls at one time without paper edge quality problems. Finishing paper sheets can directly fed into offset printing machine.
Usage:
SCD model paper sheeter cutter machine is widely used in paper converting plants,paper&board manufacturers and paper finishing facilities with high production capacity requirements. It can cut cardboard paper,offset paper,kraft paper,FBB paper,C1S paper,coated paper for printing and packaging industry.
Feature:1.Double rotary knife technology ensure superior cut quality.
2.Transverse cutting section: Directly driven by servo motor for greater cutting precision.
3.Longitudinal cutting section:Adopt automatic positioning slitting knives system.
4.Stable Running Speed: 300m/min
5.Mark free system in overlapping section.

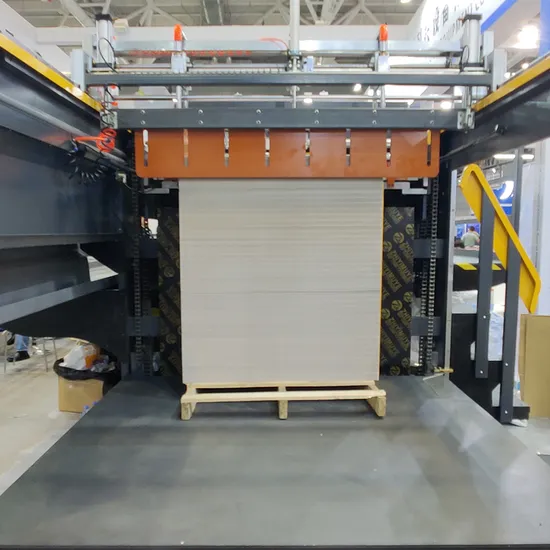

6.Automatic stacking table with good stack quality and jogger plates and backstops.
7.Finishing paper sheets without burrs which can directly fed into offset printer machine.
Basic Configuation:

Unwinder Stands	1 to 5 in standard(8 to 12 for lightweight paper)
Max Reels Width	1400/1500/1700/1900/2500/3200mm
Max Reels Diameter	1800mm
Max Format Width	1400/1500/1700/1900/2500/3200mm
Max Format Width	400mm
Longitudinal Cutting Section	3 Slitters
Core Holder	3-12inch
Stack Height(incl.Pallet)	1700mm(lateral outlet) 1800mm(front outlet)
Speed	300m/min

Options Available:

Tab Inserter	Front And Lateral
Pallet Change	Full Automatic And Semi-Auto
Additional Longitudinal Cut	Yes
Cut To Register	Yes
Declurer	Yes
Automatic Splicing	Yes
Reels Feed Conveyor	Yes

Detail Images: Static Remover:
The static remover is installed in the between first and second stage conveyor belts. It can perfect remove static in the surface of paper sheets.Mark Free Function:
When we cut paper sheets for printing,the printin surface os paper sheets should not marked by pressing wheels in the conveyor belt stage. We installed a suction box in the bottom of the whole piece of conveyor belt. The suction box suck paper sheets in the conveyor belt and overlapping. it improves the printing quality. Tungsten Steel Blade:
The blade is helix and difficult to process. But we use advanced 6 axis CNC machine to process the blade in Shenzhen city which is the capital of mobile phone production in China and have most advanced CNC machines. Blade lifetime can be more than 10 years.Automatic De-curling Equipment:
The de-curling system is controlled by PLC. It can automatic adjust de-curling force according paper gram weight and diameter of paper rolls and solve the problem that curly paper is difficult to transport and stack in pallet.Color Marks Register Sensor:
The register sensor is controlled by motion controller. Even machine running with high speed, the cutting precision is still very high.Double Rotary Knives:
This special structure makes the paper cutting sheets without burrs which can be directly feed into offset press machine(offset printer machine such as KBA, Roland, Heidelberg, Komori)
Customer Factory Tour:
SCD model is Binbao machinery best synchro-fly double knife paper roll sheeter cutter machine with great performance. The model machine had installed more than 15 countries,such as Vietnam,Pakistand,Indonesia Malaysia,India and so on.
After-sale Service:
Exhibition Scene:
Company Profile:
Wenzhou Binbao Machinery Co.Ltd leads in manufacturing of paper&film jumbo roll to narrow rolls slitting rewinding machine and roll to sheets cutting machine,for printing and packaging products industry. We develop and build the machinery and the control systems that manage the machinery. It is our mission to offer high level quality machines for the industry.The three founders of the company are all passionate about machinery and have been working in the packaging and printing machinery industry for more than 10 years. They enjoy constantly updating and improving the machinery, and derive pleasure and fulfillment from it. It is because of their love that they have always led the company to develop new models and improve the performance of the machinery, which has been unanimously approved by users all over the world. After more than 10 years of development, the company's production capacity has reached 400 units/year, with an annual sales of more than 10 million dollars.The control systems that manage the machinery. It is our mission to offer high level quality machines for the industry.

FAQ:
Q: What should I do to find the appropriate machine?A: You should offer some info.1. Material name2. Material thickness or gsm3. Max. diameter and width of mother roll4. Minimum width of finished roll5.Maximum rewinding diameterYou also can send your message of your slitting processing to our sales. They will help you find the best solution.Q: How can I operate the machine?A: Our machine is very easy to operate. We also offer the manual and video to teach you. Welcome to visit our factory to learnmore details by yourself. We also share the slitting rewinding machine and sheets cutting machine operating videos in our YouTube Channel.Q: What about your after-sales service?A: Call us, email us, or video-chat, we will offer solutions within 24 hoursQ: What is your terms of payment?A: We accept many kinds of payment. Please contact us for details.Q: What is your advantage?A: Not only good quality but also good service1. Over 20 years manufacturer2. All the accessories made by ourselves.3. We have our own research and development design team.4. We accept products customization.5. 24 hours after-sales service and engineer oversea service.
Packing&Delivery:
