Anon Width 1.6m Rotary Cultivator Heavy-Duty Power Tiller
| US$2,300.00-2,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
1GQN-180
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Vertical Shaft
Certification
ECE, EU, CE
Color
Red
Warranty
1 Year
Model
1gn-160 Rotary Tiller
Number of Knives
38PCS
Working Depth
12-18cm
Working Width
160cm
Linkage
Standard;Three-Point,Mounted
Matched Power
30-40HP Rotary Tiller
Transport Package
Plywood Box
Specification
900*1880*1000mm
Trademark
ANON
Origin
China
HS Code
8432311100
Production Capacity
5000sets/Year
Packaging & Delivery
Package Size
900.00cm * 1880.00cm * 1000.00cm
Package Gross Weight
200.000kg
Product Description
Anon Width 1.6m Rotary Cultivator Heavy-Duty Power Tiller
Product Description
Anon Width 1.6m Rotary Cultivator Heavy-Duty Power Tiller
1GQN series tractor rotary tiller is adopted middle gear transmission system, mounted with the tractor by the 3 point suspension. Tractor's wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. This cultivator can be used on dry and paddy field.
1. This mounted rotary tiller covers the tractor wheel track perfectly.
2. The rotary cultivator saves labor and reduces the cost.
3. It is a tractor mounted rotary tiller for 18-80hp tractor.
4. The blade is 65Mn/60Si2Mn steel . Product Parameters
Anon Width 1.6m Rotary Cultivator Heavy-Duty Power Tiller
| No. | 1GN-100 | 1GN-125 | 1GN-140 | 1GN-150 | 1GN-160 | 1GN-180 | 1GN-200 | 1GN-220 | 1GN-250 | 1GN-300 | |||
| Matched power | 12-15 | 18-20 | 20-25 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-80 | 90 | |||
| .Working width(cm) | 100 | 125 | 140 | 150 | 160 | 180 | 200 | 220 | 250 | 300 | |||
| NO. of knife | 22 | 26 | 30 | 34 | 38 | 50 | 54 | 58 | 62 | 70 | |||
| Type of knife | IT225 | IT245 | |||||||||||
| Total weight(kg) | 200 | 220 | 230 | 240 | 251 | 415 | 430 | 445 | 460 | 490 | |||
| 192 | 210 | 220 | 230 | 240 | 405 | 420 | 435 | 450 | 480 | ||||
| O.D.(mm) | (L) | 850 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 | ||
| (W) | 1050 | 1450 | 1600 | 1740 | 1880 | 2056 | 2396 | 2636 | 2816 | 3316 | |||
| (H) | 950 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 | |||
| working depth(cm) | Dry field | 8-14 | 12-18 | 12-16 | |||||||||
| Paddy field | 10-16 | 14-20 | 14-18 | ||||||||||
| Export axle rotary speed(r/min) | 530-730 | 540 | 540 | 540-720 | 540-720 | ||||||||
| Knife axle rotary speed(r/min) | 180-250 | 225 | 226 | 200 | 236 | 240 | |||||||
| Walking speed(km/h) | 1-4 | 2-5 | |||||||||||
| Rate of working depth (%) | ≥85 | ||||||||||||
| Soil level after worked(cm) | ≤5 | ||||||||||||
| Vegetation covered rate (%) | ≥55 | ||||||||||||
| The rate of crushed soil (%) | ≥50 | ||||||||||||
| Linkage | Standard three-point mounted | ||||||||||||
Detailed Photos

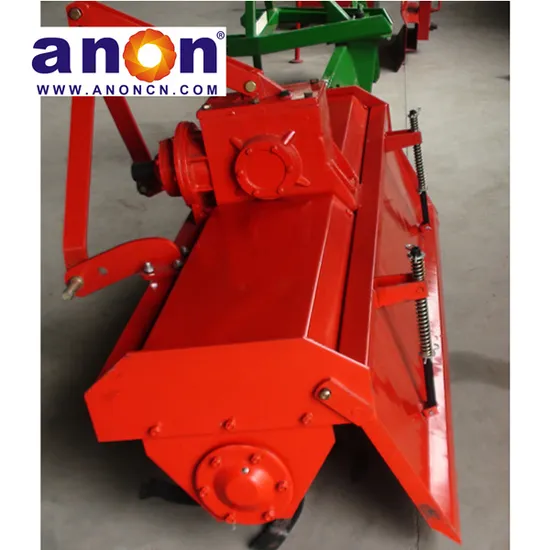

Anon Width 1.6m Rotary Cultivator Heavy-Duty Power Tiller Driven by Tractor
