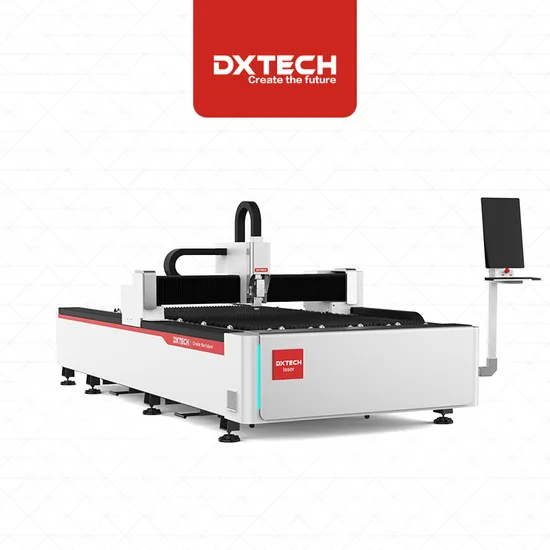

Reasonable Price 1000W 1500W 2kw 3000W Single Table Fiber Laser Cutting Machine Fiber Aluminium Laser Cutting Machine Metal CNC

Product Description

Features
1. With a simple operating system, you can quickly cut any shape you want on metal materials, such as Steel, Iron, Aluminum Plate, Carbon steel, Stainless steel, Cooper, and galvanized sheet.
2. Independent control cabinet
1). Dustproof: all electrical components and laser sources are enclosed in a separate control cabinet to prevent dust contamination.
2). Automatic thermostat: equipped with an automatic constant temperature air conditioner, which can protect the components from damage due to high temperature.
3. Aviation aluminum alloy beam to ensure the running speed reaches up to 150m/min.
4. World-class components like guide rails and racks to ensure cutting accuracy.
5. The sturdy iron flatbed keeps the machine undistorted for 20 years.
6. When considering sheet metal laser cutting prices, laser cutting has a superior cutting edge, it saves money and time cost if we count all costs.
Technical Parameters

Model	DXTECH-1325FL	DXTECH-1530FL
Machine size	4470*2035*1950mm	4735*2251*1950mm
Working area	1310*2520mm	1515*3030mm
Positioning accuracy	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm
Max. acceleration	1.5G	1.5G
Laser power	1kW - 2kW	1kW - 2kW
Laser	Multiple options	Multiple options
Focusing method	Auto/manual	Auto/manual
Max. running speed	140m/min	140m/min

Premium Product Components

Aviation aluminum beam
1) It has the characteristics of corrosion resistance, lightweight and high rigidity, which ensure the high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-twisting, anti-tilting, and
resistance to deformation, etc., to ensure higher cutting accuracy.
Smart Focus Laser Head
1) Heat dissipation: Both collimating mirror and focusing mirror set are heat dissipation accessories.
2) Cooling airflow nozzles are added to effectively protect the nozzles and ceramics and extend the working time.
3) Tracking aperture: By 35mm aperture, the interference of stray light is effectively reduced.
4) Auto-focusing: free from human interference, focusing speed up to 10m/min and repeat accuracy about 50 microns.
Thick-walled carbon steel pipe welding bed
1) Adopt high-quality carbon steel welding machine, more stable and durable.
2) High strength machine tool adopts 600ºC stress relief annealing treatment, with strong structural rigidity, small deformation, and vibration to ensure cutting accuracy.
Samples Display
Application
Why choose DXTECH?
FAQ
1. Do you have the CE document and other documents for customs clearance? A: Yes, we have the Original. At first, we will show you and after shipment, we will give you CE/Packing list/Commercial
Invoice/Sales contract for customs clearance.
2. Payment terms? A: trade assurance/TT/West Union/Paypal/LC/Cash and so on.
3. What's the max. cutting thickness? A: Cutting thickness is related to laser power.Note: only 1KW or above fiber laser could cut Aluminum, Copper, Brass, and other high-reflection sheet metal.
4. Which kind of materials can be processed on this machine?
A: Wood, MDF, stone, acrylic, glass, plastic, foam, aluminum, copper, and almost all kinds of non-steel materials.
5. How long is the delivery time?
A: For standard machines, it will be 7-10 days; For non-standard machines and customized machines according to the client's specific requirements, it will be 15 to 30 days.
