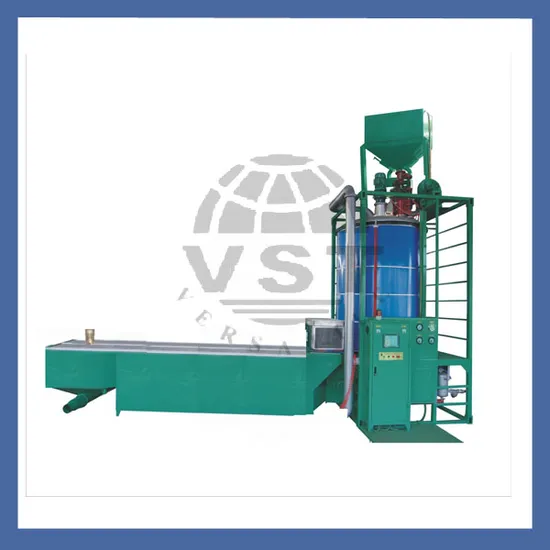

New Design EPS Machine EPS Pre-Expander
| US$8,000.00-15,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
FDS110-160
Type
EPS Foam Machine
Raw Material
EPS
Principle
High-Pressure Air Type
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Plastic Type
EPS
Condition
New
Application
EPS Foam for EPS Plant
Brand
Dongshen
Transport Package
Standard Export Package
Specification
FDS1100, FDS1500
Trademark
dongshen
Origin
Zhejiang, China (Mainland)
Production Capacity
20 Unit / Month
Product Description
Main Features:1, All process including filling, expanding, sieving, delumping and conveying to silos are done automatically.
2, With primary and secondary expansion device to get density of 8-30g/l
3, Fist filling is controlled by frequency converter
4, With power-off protection device
5, With Japan steam presure reducing valve
TECHNICAL DATA | ||||
| Item | PSY-70 | PSY-90 | PSY-120 | |
| Expansion Chamber | Diameter Volume Useable volume | Φ 700mm 0.6 m³ 0.4m³ | Φ 900mm 1.2 m³ 0.8m³ | Φ 1200mm 2.2m³ 1.5m³ |
| Steam | Entry Consumption Pressure | DN20 80-100kg/cycle 0.6-0.8MPa | DN40 100-150kg/cycle 0.6-0.8MPa | DN40 150-200kg/cycle 0.6-0.8MPa |
| Compressed Air | Entry Pressure | DN15 0.6-0.8MPa | DN20 0.6-0.8MPa | DN20 0.6-0.8MPa |
| Drainage | Condensate | Φ 20mm | Φ 20mm | Φ 20mm |
| Throughout | 15g/l 20g/l 25g/l 30g/l | 100g/l 120g/l 150g/l 200g/l | 150g/l 200g/l 250g/l 300g/l | 250g/l 300g/l 410g/l 500g/l |
| Material Conveying Line | Φ 150mm | Φ 150mm | Φ 150mm | |
| Connected Load | 8.93Kw | 9.73Kw | 13.33Kw | |
| Density | First expansion Second expansion | 12-30g/l 8-11g/l | 12-30g/l 8-11g/l | 14-30g/l 8-13g/l |
| Overall Dimension | (L*W*H) | 4700*2660*2600(mm) | 4700*2930*3200(mm) | 4905*4655*3250(mm) |
| Weight | 1300kg | 1500kg | 1800kg | |
| Room Height Required | 3000mm | 3000mm | 3000mm |
