F8 Medium Efficiency Multi-Layer Non-Woven Fabric Air Pocket Filter

F8 Medium Efficiency Multi-Layer Non-Woven Fabric Air Pocket Filter

US$15.00-20.00 10 Pieces (MOQ)

Basic Info.

Model NO.
85% model
Medium Material
Nonwoven Fabric
Efficiency
F8
Filtration Grade
Medium Filter
Type
Bag Filter
Media Efficiency
85%
Certification
ISO9001, ISO/Ts 16949
Color
Pink
Frame
Aluminum Alloy or Stainless Steel
Temp. Resistance
Less Than100 Celsius
Filter Object
Particles Bigger Than 1 Micron
Humidity
Less Than 100%Rh
Transport Package
PE Bag and Carton
Specification
592*592*600mm, 290*592*600mm (another size is ok)
Trademark
FRESH
Origin
Guangdong, China
HS Code
8421999090
Production Capacity
500000 PCS/Years

Product Description

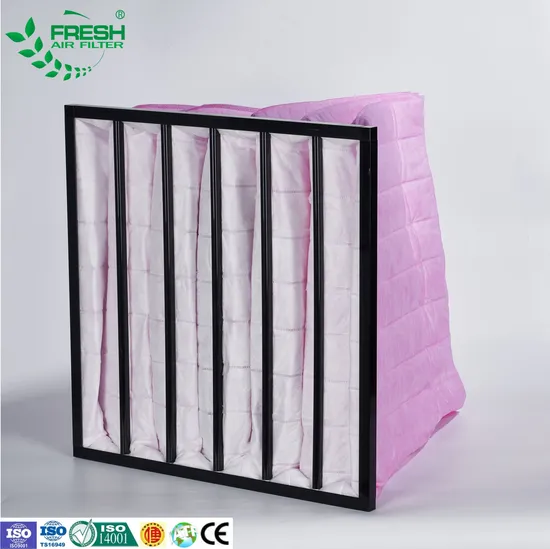

Medium efficiency anti-static pocket filter


Specification:
·Large dust holding capacity
·High efficiency
·Good air permeability
·Long working life

Application: The air pre-filtration system for non-dust room, hospital, pharmaceutical factory, electronics factory, spray booth and other filtration systems which are in high need of clean air.
Type: pocket filter
Frame: aluminum alloy or stainless steel
Media: Synthetic fiber
EN779 class: F7
Temp. Resistance:100 degree Celsius
Humidity: 100%
Speciality: Galvanized iron or aluminum alloy frame
Between each pocket there is a metal stick to make frame firm, and the separation material of each pocket can avoid the filter over expanded under the pressure.
Ultrasonic sealing make the filter more strong and not easy to break.
Adopted fine synthetic fiber instead of some fiberglass material.
Material is made of antistatic fiber, large dust holding capacity and long working life.
Normal Size:

Type Dimensions(mm) Rated Air Flow / Initial Pressure Drop
(m3/h & Pa)
Filtration Area EN779 Filter Material Color
Width Height Depth Bags
85% 582 592 600 6 2550/67 3400/90 4250/115 4.4 F8 Pink
290 592 600 3 1250/67 1700/90 2100/115 2.2 F8
592 592 600 8 2550/60 3400/80 4250/100 5.6 F8
290 592 600 4 1250/60 1700/80 2100/100 2.8 F8
Special size available upon request.

Pictures Show:

Frequently Asked Questions
1. When can I get the quotation?
Answer: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
2. Do you accept any OEM/ Customization order?
Answer: Yes, we are open to all OEM orders, once your LOGO is granted to be used by us from you ,We fully understand all ventilation projects / tenders are customized normally, thus we are open to size / spec customization.
3.What Certification, What QA measurements you have?
Answer:
Guangdong Fresh Filter Co.,Ltd is certified by UKAS ISO9001-2015 and TS14969.
All Fresh Air Filter products are strictly following EN779:2012 and EN1822 criteria. For any 3rd party testing, we can always submit to well-known 3rd parties for product testing.
In-house test report(s) can be furnished upon request.
Up to now, FRESH AIR FILTER has been granted for EN1822-5 sample testing for H14 HEPA Filters, also ISO16890 test certificate by European Authority, 3rd party CE certificate for Air filters and Activated carbon filters, all the test reports/certificates can be furnished upon request.
