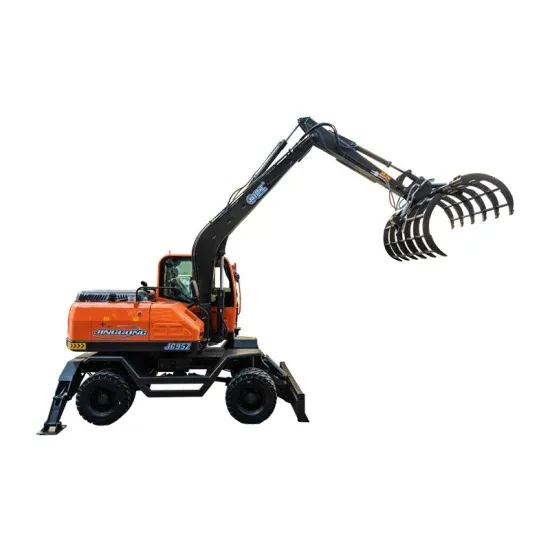

Jg95z 8 Ton Cotton Grapple Loader Wheel Cotton Grapple Excavator for Cotton Handling
| US$35,000.00-38,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JG95Z
Harvest method
Grapple
Drive Type
Internal Combustion Drive
Transmission
Hydraulic
Portable Harvester Type
Excavator
Certification
ISO9001:2008, CE
Color
Red
Condition
New
Application Field
Agriculture
Transport Package
Nude Packing
Specification
6450*2330*2930mm
Trademark
JING GONG
Origin
China
HS Code
8429521100
Production Capacity
3000units/ Year
Product Description
This model is equipped with energy-saving and efficient turbocharged exhaust engine, and the China National III emission standard, maximize the power of the engine and reduce power loss.
The multi-way valve imported from South Korea has advanced and reliable hydraulic system. The whole car body uses high-quality steel, which is firm, reliable and more durable.
| SPECIFICATIONS OF JG95Z Wheel Excavators Cotton Grapple | ||||||||||
| RANGE OF OPERATION | Boom length | 3680mm | ||||||||
| Arm length | 2000mm | |||||||||
| Max radius of capture | 7000mm | |||||||||
| Max. Opening Width of Grab | 1980mm | |||||||||
| Min. Opening Width of Grab | 700mm | |||||||||
| Max. RADIUS Grabing Weight | 650kg | |||||||||
| Back-end radius of gyration | 1980mm | |||||||||
| DIMENSION | (Length*width*height)Transport Dimensions | 6500*2330*2930mm | ||||||||
| Axle base | 2400mm | |||||||||
| Wheel base(Front/rear) | 1850mm/1750mm | |||||||||
| Ground clearance of counterweight | 1180mm | |||||||||
| Min ground clearance | 200mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 7800kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Rated Power | 62.5kw | |||||||||
| Rated Speed | 2200r/min | |||||||||
| Hydraulic system working pressure | 21Mpa | |||||||||
| Hydraulic system flow | 150L/min | |||||||||
| Variable piston pump | 72ml/r | |||||||||
| Grapple swing speed | 12r/min | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 8.25-16 | |||||||||
| Revolution Overdrive Pressure | 20Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥6L/h | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
