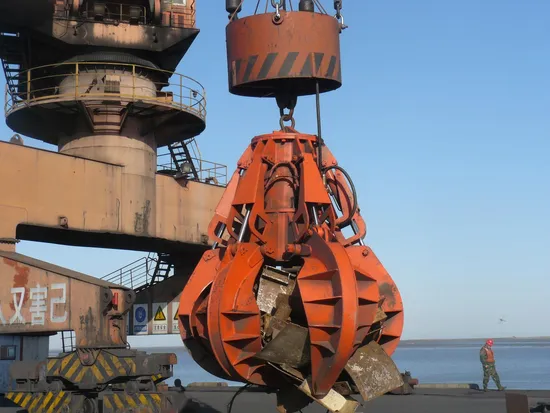

Electric Hydraulic Orange Peel Grab for Metal Scrap

Product Description

Product Description:

Hydraulic Orange Peel Grabs Enjue Grabs manufactures hydraulic orange peel (Cactus) grabs for all kind of purposes; for handling scrap, wood pellets, domestic waste etc. The orange peel grabs can be manufactured in a heavy duty execution suitable for dredging clay, hard soil and stones/rocks. As standard, the hydraulic orange peel grabs are equipped with five shells half closed however the number of shells can be more or less as the execution of the shells can also be closed, open and half open. For scrap handling, the hydraulic components can be built in into the frame (protected). There are four different executions, depending on the product to be handled and its density: HPL: Light weight for densities up to 2.0 ton/m³ HPN: Normal weight for densities up to 2.5 ton/m³ HPH: Heavy weight for densities up to 3.2 ton/m³ HPS: Special, made to customer's specification Four types of rotation MD: mechanical rotation 200° MHD: mechanical rotation 360° HS: hydraulic rotation 360° DK: hydraulic rotation 360° with slewing ring and hydro motor The hydraulic orange peel grabs are made of high quality wear resistance steel.

The orange peel grab has three models, that is, single rope, two ropes, and four ropes. It is an efficient tool could replace manpower for loading and unloading lump cargo, such as pig iron, ore, clinker, under any severe circumstances. The characteristic is a simple structure, opening and closing device, convenient operation.
At present, this kind of grab is widely used in ports, shipping, mine, metallurgy, architecture, waster treatment plant, and so on. can secure the product's quality and outward appearance.
Radio Electric Hydraulic Remote Control Grab Bucket
It operates with a central cylinder and with own gravity circulation of oil.
The grab is very popular for new generation bulkers, preferred instead of electro hydraulic grabs in order to avoid the cable drum system and grab stabilizer on the crane jib, without any additional electric supply and consumption of fuel by generators
it operates with a battery and a remote control unit, without any motor, pump, electricity supply, cable drum, stabilizer and etc.
It does not require cable drum system, grab stabilizer on the crane jib.
It can be attached on to the hook of any kind of crane and the handling of the load can be started.
It can be controlled through remote control unit up a distance of 100 meters.
It can be used for handling of every type of bulk cargo and it is the most efficient and economical and efficient grab type.
Preferred instead of Electro Hydraulic Grabs, bulk carrier owners recently hosses that type of grab due to efficient, less are parts, performance, speed, basic structure and etc. More than 5.000 units have been manufactured between the years of 2004 and 2016 and almost all of them have been exported. About 1.000 vessels have our grabs on board
This type of grab constitutes 75% of the total production capacity our company
It is produced in sizes ranging from 2 m3 up to 50 m3. All the design and the patent is registered for Guven Grab.
