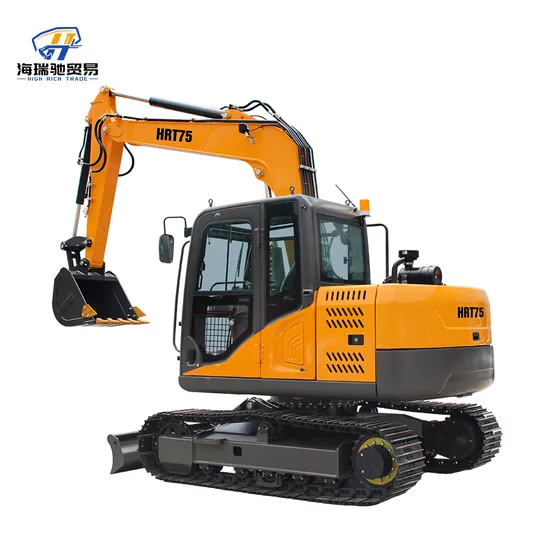

Hr Factory Price 56kN 7023mm Construction Transport Truck Wheel Crawler Excavator
Basic Info.
Model NO.
HR75
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Emission Standard
Euro V
Max. Travel Speed
2.5/4.5km/H
Width of Steel Track Shoe
450mm
Standard Bucket Capacity
0.28m³
Swing Speed
11rpm
Maximum Bucket Digging Force
56kN
Maximum Arm Digging Force
38kN
Hydraulic System Pressure
27MPa
Machine Weight(with Canopy)
7500kg
Boom Swing Angle(Left)
75°
Swing Radius at Tail
1730mm
Min.Ground Clearance
375mm
Track Gauge
1745mm
Overall Dimension (L*W*H)
6054mm*2216mm*2672mm
Maximum Vertical Digging Depth
2968mm
Transport Package
20gp Container
Specification
2840*880*2220mm
Trademark
HIGHRICH
Origin
Shandong, Qingdao
HS Code
8429521200
Production Capacity
50000/Year
Packaging & Delivery
Package Size
1200.00cm * 230.00cm * 269.00cm
Package Gross Weight
7500.000kg
Product Description
Highrich excavators use kubota or weichai efi engines (compliant with national iii emission regulations), which are powerful, energy-efficient, reliable and durable; comfortable to operate, high operating efficiency and excellent cost performance.• High-power efi engine, powerful, low fuel consumption and high reliability
• Brand-new hydraulic system, large displacement main pump, large flow main valve, large flow area, small pressure loss, more reasonable flow distribution, better coordination and more convenient operation
• A new generation of control system, intelligently adjusts the hydraulic absorption power according to the working conditions, optimizes the system matching and ensures full performance of the whole machine.
• Brand-new cab, safe and reliable.
• There are other models, such as 1 ton, 1.2 tons, 1.5 tons, 1.6 tons, 1.8 tons, 2 tons, 2.2 tons, 2.5 tons and so on.
| Technical Parameters | |||
| ENGINE | |||
| Emission Standard | Euro 5 | ||
| Make /Model / | KUBOTA(V2607) | ||
| Power /Rotation speed | 43/2000 | ||
| Number of cylinder | 4 | ||
| TRACK SYSTEM | |||
| Maximum Travel speed | 2.5/4.5km/h | ||
| Width of track shoe | 450mm | ||
| Number of track shoe per side/ | 39pcs | ||
| Number of upper roller per side/ | 1 | ||
| Number of bottom roller per side/ | 5 | ||
| PERFORMANCE PARAMETER | |||
| Standard Bucket capacity | 0.28m³ | ||
| Swing speed | 11rpm | ||
| Maximum Grade ability | 35° | ||
| Maximum Bucket digging force | 56KN | ||
| Maximum Arm digging force | 38KN | ||
| Hydraulic system pressure | 27Mpa | ||
| Machine weight | 7500kg | ||
| Fuel tank | 120L | ||
| Hydraulic oil tank | 100L | ||
| MACHINE SIZE | |||
| Overall dimension (L*W*H) | 6054mm*2216mm*2672mm | ||
| Height of cabin | 2672mm | ||
| Track length on ground(Axle base) | 2209mm | ||
| Track gauge | 1745mm | ||
| Minimum Ground clearance | 375mm | ||
| Swing radius at tail | 1730mm | ||
| WORKING RANGE | |||
| Maximum Digging height | 7023mm | ||
| Maximum Dumping height | 5195mm | ||
| Maximum Digging depth | 3898mm | ||
| Maximum Vertical digging depth | 2968mm | ||
| Maximum Digging radius | 6182mm | ||
| Minimum swing radius | 1740mm | ||
| Maximum Lifting height of blade | 382mm | ||
| Maximum Cutting depth of blade | 332mm | ||
