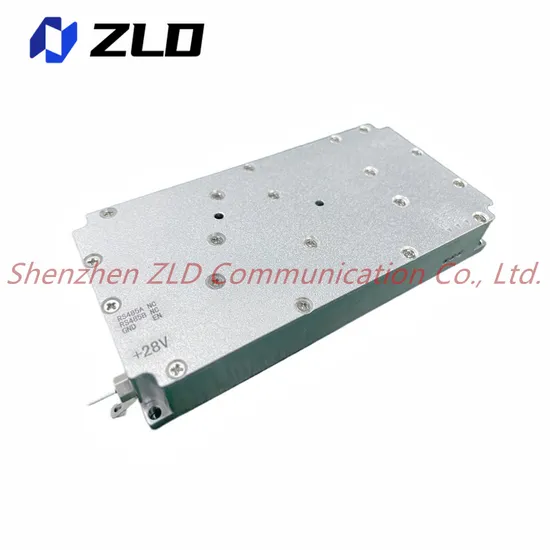

420-480MHz 50W Anti-Uav Jamming Jammer Signal Blocker PA Amplifier Module
Basic Info.
Model NO.
SGPA0450M-60-K50W
Support Network
GPRS
Information content
Data
Certification
ISO
Condition
New
Product Name
Uav Drone Jamming Module
Keywords
Jammer Module
Gain
50dB
Power
50W
Supplier Type
OEM/ODM
Warranty
1 Year
Application
Drone Signal Interference Shielding
Transport Package
Carton Packaging with Foam
Specification
128*65*18mm
Trademark
ZLD
Origin
China
Production Capacity
5000/Year
Product Description
Product Description420-480MHz 50W Anti Drone Module Uav Anti System RF Module
Product Features
• 50W RF Signal Jammer Power Amplifier.
• 420~480MHz Operation Bandwidth.
• Comes with signal interference source.
• Power Amplifier with output short circuit or open circuit protection
Product Description
• The power amplifier module Applied to drone countermeasures and signal shielding.
• High efficiency power amplifier module, attached to an aluminum sub carrier.Product Parameters
Electrical Specifications
| Parameter | Specification | Remark |
| Frequency Range | 420~480MHz | |
| Saturated Output Power | 47±1dBm | |
| Gain Flatness | ≤2.0dB | |
| Gain Stability | ±1.5dBm | at -25ºC~+55ºC |
| Power stability | ±1.5dBm | at -25ºC~+55ºC |
| Output VSWR | ≤1.5 | |
| DC Input Voltage | DC28±1.0V | |
| Current Consumption | 6.5 A typ;7.5 A max. | @ Pout=50W CW, 50 ohms load |
| Power supply port | Through-hole capacitor | |
| Working Temperature | -25~+55ºC | |
| Monitoring interface | PHD2.0MM-2*3PIN Socket, PIN1: RS485A; PIN2: RS485B; PIN3: GND; PIN4,PIN5,PIN6: NC; PIN6: Power amplifier enable switch,High level +5V off, low level 0V on. | |
| LTD pilot lamp | POWER:Power Supply pilot lamp; RUN:Run pilot lamp; ALARM:Fault alarm pilot lamp. | |
| RF output connector | N-K | |
| Dimension | 128×65×24mm | |
| Installation Dimension | 122×59×24mm | |
| Screw Size | 4-Ø3.2mm | |
| weight | 0.45kg | |
Product Dimensions
