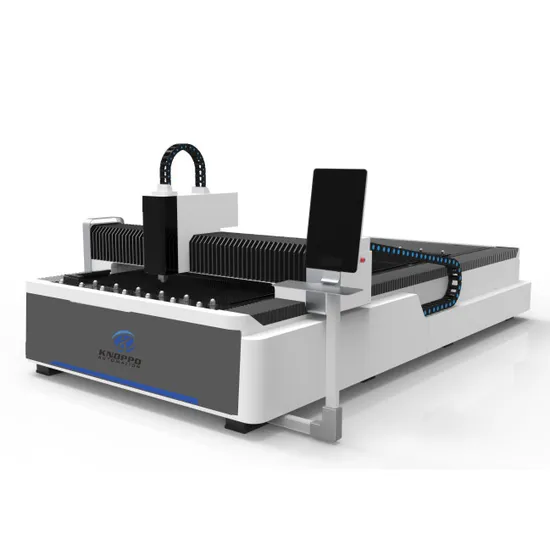

Best Price Superior Quality 1500W/2000W/3000W/6000W for Sheet Metal CNC Fiber Laser Cutting Machine Hot Sale

Product Description

KNOPPO FIBER LASER CUTTING MACHINE , 3 YEARS WARRANTY
Product Description
The heavy bed makes the equipment more stable in working, the light crossbeam makes it work faster; perfect industrial design is more in line with man-machine engineering; high quality electrical software control system gives equipment higher cutting precision. The machine owns more comfortable operation , more stable performance, more durable quality, higher cutting efficiency and wider application scope.
Features
1. Excellent beam quality: smaller spot size, higher work efficiency and better processing quality;
2. Fast cutting speed: about twice the cutting speed of CO2 laser machine or plasma cutting machine ;
3. High performance : the stable performance was acquired through the application of world's top fiber laser source which makes it possible to cut at any point with equal quality through fiber transmission.
4. High electrical conversion efficiency: fiber laser cutting machine has 3 times higher electro-optical conversion efficiency than CO2 laser cutting machine, saving energy and protecting environment.
5. Low maintenance cost: fiber transmission without using reflective lenses saves a lot of time in optical path adjustment and achieves maintenance-free results.

Product Parameters

Model		KF3015
Laser Power		1500W/2000W/3000W/6000W/10000W/12000W
Working area		3000*1500mm / 4000*2000mm / 6000*1500mm / 6000*2000mm / 6000*2500mm
Machine overall dimensions		4550*2300*2000mm
Machine weight		3000kg
Max. linkage speed		140m/min
Max. acceleration		1.5G
Positioning accuracy		0.03mm
Repositioning accuracy		0.02mm

Detailed Photos
Switzerland Raytools Or Germany Precitec Laser Head
Switzerland Brand , Good quality .Raytools is most popular as NO.1 on the world. Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses. protective lens can carefully protect key components.
MAX Laser Source
MAX is largest manufacturer of laser source in China , can cut carbon steel , stainless steel and aluminium etc . Good quality and long life . Suitablef for 24 hours continuous working .
Strong Welding Machine Body
High compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.
Japan YASKAWA Servo Motor And Driver
1. Adopting Japan Yaskawa servo motor, adopting closed-loop control method to ensure accurate positioning and dynamic response of the optimum acceleration, which makes the automatic positioning mechanism run smoothly, reliable and maintenance-free.
2. X,Y,Z axis high power motor drive, acceleration up to 1.5G.
Cypcut Control System
The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhances the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.
S&A Water Chiller
NO.1 brand in China . Dual used , cooling laser head and laser source . also with temperature alarm . High reliability, energy efficiency and durability
Available in 380V or 220V
Cutting parameters

Cutting Parameters		1000W	1500W	2000W	3000W	4000W
Material	Thickness	speed m/min	speed m/min	speed m/min	speed m/min	speed m/min
Carbon steel	1	8.0--10	15--26	24--32	30--40	33--43
	2	4.0--6.5	4.5--6.5	4.7--6.5	4.8--7.5	15--25
	3	2.4--3.0	2.6--4.0	3.0--4.8	3.3--5.0	7.0--12
	4	2.0--2.4	2.5--3.0	2.8--3.5	3.0--4.2	3.0--4.0
	5	1.5--2.0	2.0--2.5	2.2--3.0	2.6--3.5	2.7--3.6
	6	1.4--1.6	1.6--2.2	1.8--2.6	2.3--3.2	2.5--3.4
	8	0.8--1.2	1.0--1.4	1.2--1.8	1.8--2.6	2.0--3.0
	10	0.6--1.0	0.8--1.1	1.1--1.3	1.2--2.0	1.5--2.4
	12	0.5--0.8	0.7--1.0	0.9--1.2	1.0--1.6	1.2--1.8
	14		0.5--0.7	0.8--1.0	0.9--1.4	0.9--1.2
	16			0.6-0.8	0.7--1.0	0.8--1.0
	18			0.5--0.7	0.6--0.8	0.6--0.9
	20				0.5--0.8	0.5--0.8
	22				0.3--0.7	0.4--0.8
Stainless steel	1	18--25	20--27	24--50	30--35	32--45
	2	5--7.5	8.0--12	9.0--15	13--21	16--28
	3	1.8--2.5	3.0--5.0	4.8--7.5	6.0--10	7.0--15
	4	1.2--1.3	1.5--2.4	3.2--4.5	4.0--6.0	5.0--8.0
	5	0.6--0.7	0.7--1.3	2.0-2.8	3.0--5.0	3.5--5.0
	6		0.7--1.0	1.2-2.0	2.0--4.0	2.5--4.5
	8			0.7-1.0	1.5--2.0	1.2--2.0
	10				0.6--0.8	0.8--1.2
	12				0.4--0.6	0.5--0.8
	14					0.4--0.6
Aluminum	1	6.0--10	10--20	20--30	25--38	35--45
	2	2.8--3.6	5.0--7.0	10--15	10--18	13--24
	3	0.7--1.5	2.0--4.0	5.0--7.0	6.5--8.0	7.0--13
	4		1.0--1.5	3.5--5.0	3.5--5.0	4.0--5.5
	5		0.7--1.0	1.8--2.5	2.5--3.5	3.0--4.5
	6			1.0--1.5	1.5--2.5	2.0--3.5
	8			0.6--0.8	0.7--1.0	0.9--1.6
	10				0.4--0.7	0.6--1.2
	12				0.3-0.45	0.4--0.6
	16					0.3--0.4
Brass	1	6.0--10	8.0--13	12--18	20--35	25--35
	2	2.8--3.6	3.0--4.5	6.0--8.5	6.0--10	8.0--12
	3	0.5--1.0	1.5--2.5	2.5--4.0	4.0--6.0	5.0--8.0
	4		1.0--1.6	1.5--2.0	3.0-5.0	3.2--5.5
	5		0.5--0.7	0.9--1.2	1.5--2.0	2.0--3.0
	6			0.4--0.9	1.0--1.8	1.4--2.0
	8				0.5--0.7	0.7--1.2
	10					0.2--0.5

Sample
Certifications
Our fiber laser cutting machine have CE certificates , all electric drawing and quality is suitable European standard .
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
