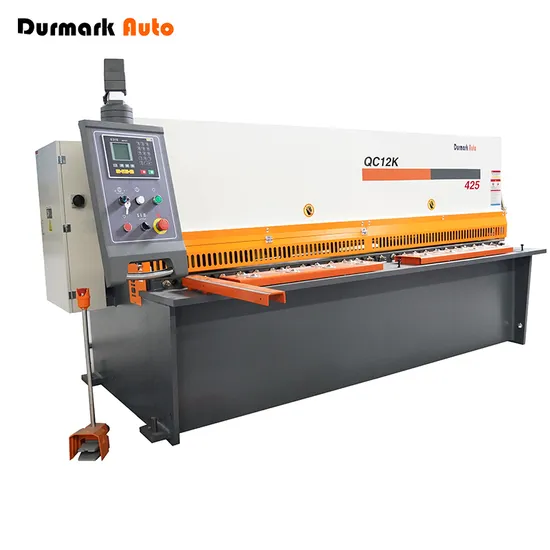

QC12K-25*3200 China High Quality Hydraulic Swing Beam Shearing Machine

QC12K-25*3200 China High Quality Hydraulic Swing Beam Shearing Machine

US$26,000.00-34,000.00 1 Set (MOQ)

Basic Info.

Model NO.
QC12K-25*3200
Certification
CE, ISO 9001:2008
Condition
New
Warranty
2 Years
Transport Package
Wooden Package
Specification
QC12Y-25*3200
Trademark
Durmark
Origin
Anhui China
HS Code
8462312000
Production Capacity
60 Sets / Month

Packaging & Delivery

Package Size
320.00cm * 170.00cm * 210.00cm
Package Gross Weight
5000.000kg

Product Description

high cutting accuracy QC12Y 4x2500 sheet metal shearing machine steel plate hydraulic shearing machine
Main feature
1. Steel welded structure, stress elimination by vibration, high mechanical strength, and exceptional rigidity
2. The hydraulic drive type structure, the cutter saddle circles a fixed axis for circle moving.
3. Decrease the force of fulcrum through leverage to prolong working life
4. Nitrogen cylinder return, simplifying the hydraulic system to make running more stable.
5. with fast and flexible gap adjusting mechanism for high shearing accuracy
6. Equipped with Lighting Alignment Device for easy shearing
7. Back Gauge size and shearing times controlled by CNC system, back gauge with high precision ball screw, stable operation and precise positioning.
8. The CNC system adopts frequency conversion control technology, with multi-step programming function, simple and easy to operate.
9. Safety barrier device all around the machinery, electrical cabinets equipped with Open door cut-off function, emergency stop button around front and back, protective cover foot switch to ensure safe working.
Technical parameter
NO Item Value Unit
1 Max cutting thickness 25 mm
2 Max cutting width 3200 mm
3 Plate strength 450 N/mm2
4 Shearing angle 3ยบ degree
5 Back-guage max distance 600 mm
6 Stroke time 9 time/min
7 Distance between columns 3500 mm
8 Blade length 3300 mm
9 Worktable height 810 mm
10 Main mptor power 22 kw
11 Dimension 3800*2000*2000 mm
