1000W 1500W 2000W 3000W 4000W 6000W Tube and Plate Fiber Laser Cutting Machine

Product Description

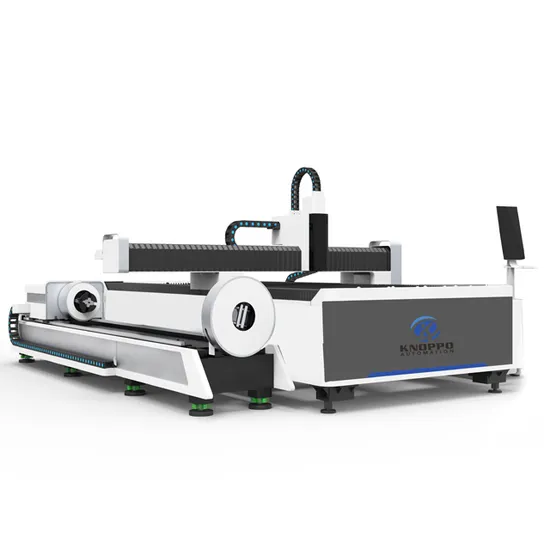

KF6020T Daul Used Sheet And Tube CNC Fiber Laser Cutting Machine
Product Description
KF-T Series dual used fiber laser cutter is mainly used for metal pipe and plate cutting. 1KW ~ 6KW is available , 3 years warranty.
Application
Applicable Materials
Materials such as metal , carbon steel , stainless steel , iron , aluminium , brass , copper , mild steel , gavanized steel tube etc.
Applicable Industry Metal working , advertising signs, decoration, arts and crafts, electronics, electric appliances, agricultural machine , metal spare parts , furniture , windows and doors working etc.
Product Parameters

Model		KF6020T
Laser Power		1000W/1500W/2000W/3000W/4000W/6000W
Working Area		3000*1500mm / 4000*2000mm / 6000*1500mm / 6000*2000mm / 6000*2500mm
Tube Cutting Length		3m / 6m
Tube Cutting Diameter		φ20~φ220mm /φ16-φ150mm
Max. linkage speed		100m/min
Max. acceleration		1G
Positioning accuracy		0.05mm
Repositioning accuracy		0.03mm
Laser Source		MAX
Laser Head		Switzerland Raytools
Servo Motor and Driver		Japan Yaskawa
Machine Overall Dimensions		KF-T3:7900*4000*2000mm KF-T6:8400*4000*2000mm
Machine weight		KF-T3:10400kg KF-T6:11000kg

Detailed Photos
Switzerland Raytools Or Germany Precitec Laser Head
Switzerland Brand , Good quality .Raytools is most popular as NO.1 on the world. Built-in double water-cooling structures can ensure constant temperature of collimating and focusing components, avoid lenses overheating and extend service life of lenses. protective lens can carefully protect key components.
MAX Laser Source
MAX is largest manufacturer of laser source in China , can cut carbon steel , stainless steel and aluminium etc . Good quality and long life . Suitablef for 24 hours continuous working .
Strong Welding Machine Body
High compressive strength and high hardness. Strong shock absorption and wear resistance. Low thermal sensitivity and bed gap sensitivity reduce the loss of equipment in using, so the machine accuracy could maintain for a long time, and no deformation in a life cycle.
Japan YASKAWA Servo Motor
1. Adopting Japan Yaskawa servo motor, adopting closed-loop control method to ensure accurate positioning and dynamic response of the optimum acceleration, which makes the automatic positioning mechanism run smoothly, reliable and maintenance-free.
2. X,Y,Z axis high power motor drive, acceleration up to 1.5G.
Cypcut Control System
The operating system can realize intelligent layout of graphics cutting and support the import of multiple graphics, optimizing cutting orders automatically, searching edges smartly and automatic positioning. Control system adopts the best logic programming and software interaction, provides stunning operation experience, effectively enhances the utilization of sheet metal and reducing waste. Simple and fast operation system, efficient and accurate cutting instructions, effectively improve the user experience.
Automatic Rotary And Chuck
Automatic electric chuck, claw DC motor drive, clamping motor current is sensitive, adjustable and stable, clamping range is wider and clamping force is larger. Non - destructive pipe clamping, fast automatic centering and clamping pipe, performance is more stable. The chuck size is smaller, rotation inertia is low, and dynamic performance is strong. Self-centering electric chuck, gear transmission mode, higher transmission efficiency, long working life and high work reliability.
Other Detail Photos
Water Chiller Automatic Lubrication Pump
Exhaust Fan Taiwan HIWIN Rails
Blade Table Protection Cover For Cables
Sample
Certifications
Our fiber laser cutting machine have CE certificates , all electric drawing and quality is suitable European standard .
After Sales Service
*3 years guarantee of the whole machine and we give lifetime maintenance free of charge.
*Free training to make sure you master the operating of machine at our factory.

* 24 hours online services through Whatsapp, Skype, Email or on the phone.

*Engineers available for overseas training and after-sale services.

* Friendly English version manual and operation video CD disk.
