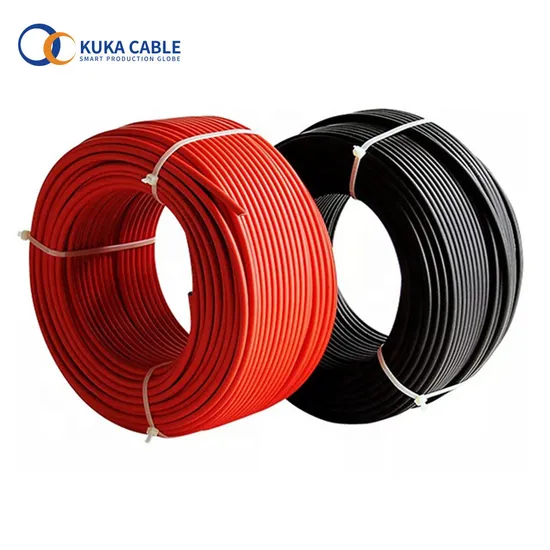

Xlpo Solar Battery Panel System Cable TUV Solar Cable 6mm

Product Description

Product Desciption XLPO Solar battery Panel System Cable TUV 6mm Solar cable
H1Z2Z2-K | PV1-F Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Our solar cables are designed to be UV resistant and weather resistant. Service life 25 years.

Conductor	Tinned Fine Re Copper Strand, according to VDE0295/IEC60228. Class 5
Insulation	Polyolefin Copolymer electron-beam coss-linked
Sheath Jacket	Polyolefin Copolymer electron-beam coss-linked
Nominal Voltage	Uo/U=1000VAC, 1500VDC
Test Voltage	6500V, 50Hz, 5Min
Temperature Rating	-40°C-120°C ,More than 25 Years
Fire Performance	IEC 60332-1
Smoke Emission	IEC61034, EN 50286-2
Low Fire Load	DIN 51 900
Certification	TUV

Detailed Image Product parameters ★ Single core solar cable

Cross section (mm2)	Conductor Construction	Outer (mm)	Resistance Max.	Current Carring Capacity
1*1.5	30/0.25	4.90	13.30	30
1*2.5	50/0.25	5.45	7.89	41
1*4	56/0.3	6.10	4.75	50
1*6	84/0.3	7.20	3.39	70
1*10	142/0.3	9.00	1.95	98
1*16	228/0.3	10.20	1.24	132
1*25	361/0.3	12.00	0.795	176
1*35	525/0.3	13.8	0.565	218
1*50	720/0.3	14.8	0.393	280
1*70	988/0.3	16.9	0.277	350
1*95	1349/0.3	18.7	0.21	410
1*120	1691/0.3	20.7	0.164	480

★ Twin/Dual core solar cable

Cross section (mm2)	Conductor Construction	Outer (mm)	Resistance Max.	Current Carring Capacity
2 x 1.5	30/0.25	8.3 ± 0.2	13.30	30
2 x 2.5	50/0.25	9.2 ± 0.2	7.98	41
2 x 4	56/0.3	12.0 ± 0.2	4.75	50
2 x 6	84/0.3	13.5 ± 0.2	3.39	70
2 x 10	142/0.3	17.6 ± 0.2	1.95	98
2 x 16	228/0.3	19.8 ± 0.2	1.24	132

Packing Details
100m/Roll/pallet, 150m/Roll/pallet 200m/Roll/pallet, 300m/Roll/pallet 500m/Roll/pallet, 1000m/pallet 3000m/wooden pallet Our Factory Good production environment
