Oturn CNC GF4020 High Precision 5 Axis Gantry Type Milling Machine Gantry Type CNC Machining Center

Product Description

Product Description

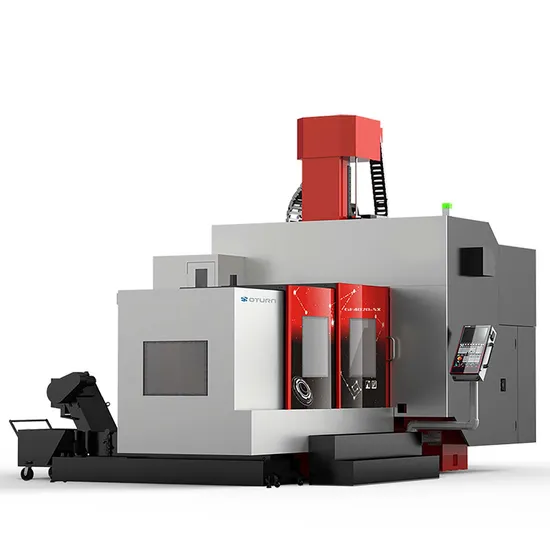

The high-speed and high-performance five-axis gantry machining center GF4030-5X has the characteristics of high rigidity, high precision and high efficiency processing. The split gantry design is adopted to increase the contact area with the column mounting base, which can greatly enhance the bending and torsional strength of the gantry; the workbench adopts a reasonable slider span to make the workbench evenly stressed; the base adopts golden ratio reinforcement The design ensures uniform force on the guide rail support surface and ensures the overall accuracy of the workbench operation; the whole machine adopts the best structural design to provide the best overall stability.
The three-axis rapid displacement is 30/30/30m/min, the T-T tool change time is only 5 seconds, the tool magazine is fully loaded, 24-hour tool change without alarm, and the 3-dimensional inspection of each machine's trial processing sample has passed, ensuring the high efficiency of the machine tool after leaving the factory. Continuous stability. It is suitable for various two- and three-dimensional concave and convex models with complex shapes and complex cavities and surfaces. It is also suitable for milling, drilling, expanding and boring of valves, cams, molds, plates and boxes in the manufacturing industry. Tapping and other processing procedures are more suitable for small and medium-sized batches of multi-variety processing and production.
Adopting Siemens' latest sinumerik ONE system, a 19-inch ultra-large LCD display, intelligent warning display, self-diagnosis and other functions make the use and maintenance of machine tools more convenient and faster; the high-speed bus communication method greatly improves the data processing capabilities and control of the CNC system performance.
Product Parameters

Item		unit	specification
worktable	Workbench (length × width)	mm	4000×2100
	T-shaped groove (number of grooves-width×pitch)	mm	15-28×250
	Maximum load of workbench	T	14
Feed	X/Y/Z axis rapid displacement	m/min	30/30/30
	B/C axis maximum speed	rmp	60/60
	cutting feed rate	mm/min	1-15000
Travel	X/Y/Z axis travel	mm	4200×3000×1000
	Door width	mm	2600
	Distance from spindle end face to worktable	mm	60-1060
	The distance from the 90° center of B-axis to the work surface	mm	500-1500
	Spindle left and right 90° end face to end distance (Y direction)	mm	2120
	Spindle front and rear 90° end face to end distance (X direction)	mm	3320
Spindle	Spindle taper hole	mm	HSK-A100
	Spindle maximum speed	r/min	8000
	Spindle motor power (S1/S6 40%)	kW	70/75
	Spindle motor torque (S1/S6 40%)	N.m	350/450
Tools	Tool magazine storage capacity		60
	Tool exchange time (T-T)	S	5
	Maximum tool diameter (full tool)/free tool/length	mm	125/230/400
	Maximum tool weight	kg	15
Guides	X-axis guide rail	mm	55 roller (3 rails)
	Y-axis guide rail		55 roller (3 rails)
	Z-axis guide rail		45 rollers (4 rails)
	X-axis screw	mm	R80×30
	Y-axis screw	mm	R63×40
	Z-axis screw	mm	R63×16
B/C-axis	B swing/C rotation angle	°	B/ C:±110°/±360°
	B-axis rated/maximum torque	NM	1600/2600
	C-axis rated/maximum torque	NM	1600/2600
	B/C axis braking torque	NM	6000
	B/C axis maximum speed	Rmp	60
	B/C axis positioning/repeat positioning accuracy	arc-sec	8/6
Precision	Linear axis positioning accuracy	mm	±0.005/300mm
	Repeatable positioning accuracy of linear axis	mm	±0.003/300mm
Lubrication system	Lubrication unit capacity	L	10
	Lubrication type		Thin oil lubrication
Cutting fluid	Displacement of water tank volume	L	850
	Center outlet tank volume	L	200
Other	air demand	kg/c	≥6
	Air flow	mm3/min	≥0.5
	Power supply: three-phase AC		380V±10%,50Hz
	Air pressure	MPa	0.6
	Machine weight (combined)	t	45
	Dimensions (L x W x H)	mm	8100*4890*5127
