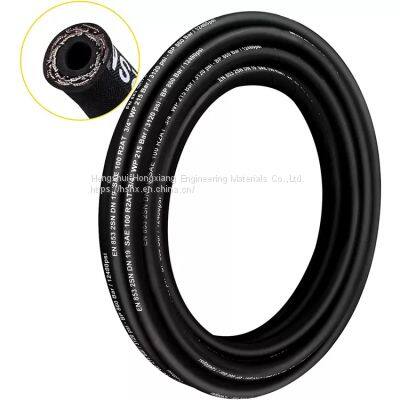

DIN EN853 2SN/ SAE100 R2AT Steel Wire Braided Hydraulic Hose

Product Details

Product Description

Product Description
Different from DIN EN853 1SN steel wire braided rubber hose, the reinforcement layer of DIN EN853 2SN steel wire braided rubber hose is woven by two layers of high-strength steel wire, and DIN EN853 2SN steel wire braided rubber hoses are more suitable for extreme weather than DIN EN853 1SN.
High pressure two-layer steel wire braided hydraulic hose can be used in mining hydraulic fluids, cranes, mining equipment, injection molding machinery, agricultural machinery and various machinery fields.
High pressure two-layer steel wire braided hydraulic hose is also commonly used for conveying glycol, mineral oil, fuel, lubricating oil, emulsion, etc.
In addition, since the surface of the steel wire braided hydraulic hose can be divided into two types: smooth surface and fabric surface, it has weather resistance, ozone resistance, aging resistance and sunlight resistance.
Applicable Specification：DIN EN853 2SN/ SAE100 R2AT
Working temperature: -40 °C to +100 °C; (-40 °F to +212 °F).

Inside Diameter(ID)			Reinforcement Diameter (RD)	Outside Diameter (OD)	Max Working Pressure		Min Burst Pressure		Bend Radius	Weight
DN	inch	mm	mm	mm	bar	psi	bar	psi	mm	Kg/mt
-03	3/16 "	5.0	10.9	12.9	415	6018	1660	24072	90	0.28
-04	1/4 "	6.3	12.7	14.7	400	5800	1600	23200	100	0.35
-05	5/16 "	7.9	14.5	16.5	350	5075	1400	20300	115	0.42
-06	3/8 "	9.5	16.5	18.7	330	4785	1320	19140	130	0.50
-08	1/2 "	12.7	19.7	21.9	275	3988	1100	15952	180	0.63
-10	5/8 "	15.9	23.0	25.3	250	3625	1000	14500	200	0.73
-12	3/4 "	19.1	26.8	29.3	215	3118	860	12472	240	0.90
-16	1 "	25.4	34.3	37.5	165	2393	660	9572	300	1.24
-20	1-1/4 "	31.8	43.2	46.0	125	1813	500	7252	420	1.75
-24	1-1/2 "	38.1	49.6	53.0	90	1305	360	5220	500	2.09
-32	2 "	50.8	62.3	66.0	80	1160	320	4640	630	2.72
-40	2-1/2 "	63.5	75.0	79.0	68	986	272	3944	800	3.37
-48	3 "	76.2	85.5	90.0	50	725	200	2900	920	4.10
