lab salt spray test chamber price

Product Description

Product Description

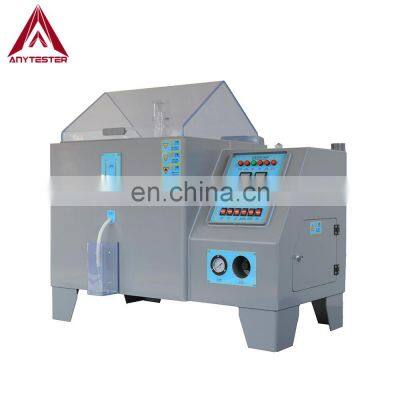

Product DescriptionAT-YW Series Salt Spray Chamber is used to determine the corrosion resistance to salt fog of specimens. It is used for evaluating the quality and the uniformity of materials surfaces.This machine conforms to ISO 9227, ASTM B117, DIN 50021, GB/T 2423.17, GB/T 2423.18, etc.Schematic diagram:The chamber adopts high quality material and advanced technology, corrosion resistant, smooth and easy to clean, no leakage phenomenon.It equipped with a variety of specimen supports, convenient for placement of all kinds of specimens to test.SpecificationModelAT-YW60AT-YW90AT-YW120AT-YW160AT-YW200Inner dim. (cm)60×45×4090×60×50120×85×50160×100×50200×100×60External dim. (cm)110×67×118141×91×122200×115×145240×135×145280×135×155Test chamber volume108L270L600L680L800LSalt water tank volume15L25L40L40L60LMaterial Thickness5mm6mm8mm8mm10mmTest chamber temp.RT＋5℃~50℃Fog quantity1～2ml/h.80cm2Temp. fluctuation≤±0.5℃Spray towerIndependent designed acrylic conical disperser, can adjust the flow of the spray, and can make the fog uniformSpray nozzlePYREX glass precision nozzleSpraying modeContinuous and intermittent spray selectableTiming range0-9999.9hInterval time0~99.9 hPower supplyAC220V, 50HzDetails & Features★ Innovative design, chamber structure, easy to install and maintain, stable and reliable;★ Chamber cover adopts transparent acrylic sheet, 5mm thick, high temperature resistant; ★ Adopts U-shaped alloy heating tube, fast to heat, with resistance to acid and alkali corrosion, long service life;★ Independent designed acrylic conical atomizer, can adjust the flow of the spray, and can make the fog uniform;★ Pressure regulating valve adopt concave type design, to prevent wrong operation, and save space.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions3100×850×1750mm(L×W×H)WeightApprox.1000kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
