Roofing and Cladding Sheet Profile Machine Laminating Machine

Product Description

Plastic film PVC Steel Lamination Machine Product description
This machine is composed of the following control system units: unwinding unit, tin pinch unit, steel preheating unit, laminating unit, S roller tension unit, steel coiling unit, film unwinding unit, gluing unit, film drying unit, film rewinding unit and error correction system.
Characteristic:
Film unwinding: automatic constant tension control, pressure sensor test; thin film oven adopts precision potentiometer; it has high precision and high sensitivity tension control
The film drying outlet is equipped with eight character correcting system to ensure the compound precision of the film and the iron sheet
The tin / roll adopts full closed loop control system (inverter motor + Japan Yaskawa inverter + Japan OMRON encoder)
Remote acceleration and deceleration and speed automatic control, tension and speed linkage control
The whole machine adopts the programmable system of Panasonic
The man-machine touch screen can realize the setting and monitoring of various work parameters, and has perfect safety protection function
MAIN SPECIFICATION:

laminate material	plastic films and paper laminated with steel roll
Width of laminating	450-1250mm
Mechanical speed	80m/min
Printing speed	50m/min (Variable because of different ink, film, familiarity of operator)
1st,2nd unwind and rewind dia.:	Φ600mm
Unwind and rewind shaft	air expanding shaft
Coating roller diameter	Ø165mm
caoting pressure	350kg
Curing dose	20-30%
Solvent	ethyl acetate and others
Tension setting range	3-30k
Length of film chamber	9000mm
Length of tin/steel chamber	6000mm
Chamber temperature	100º
Drying method	electric heating
Laminate pressure	2100kg
Laminate temperature	80ºC
Total power	280kw (electric heating), 140kw for normal working
Machine size	33000×2900×4500(mm)
Machine weight	42000kg

Laminating MaterialsBOPP,PET,NY, CPP, CPE,PVC aluminum coating film,paper single or double layer laminated with steel roll.

OPP	18~60μm	PET	12~60μm
PE	30~100μm	BOPP	19~60μm
CPP	20~60μm	NY	12~50μm
PVC	20~80μm	Aluminum Foil	8-40μm
Cellophane paper	20-30μm	Laminated film	15-60μm
Tinplate	0.15~0.4mm	other above similar films

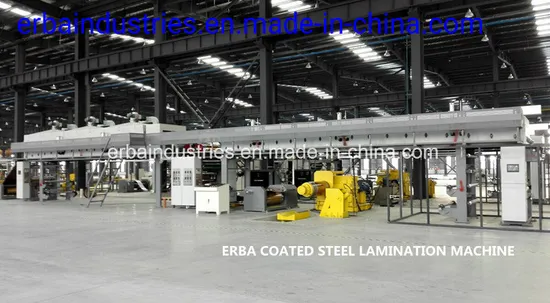

Machine image
other machines available
Rotogravure printing machine
pouch making machine;bag making machine Please contact me for more details.
Contact: Tina Fung
Cell/ : 0086 15190347475


With 20 years focus on the printing laminating industy,Erba deserve your expectation.
