BM38/12 FINCM CNC High Speed Milling Machine Milling Machine For Metal

Product Description

Product Description

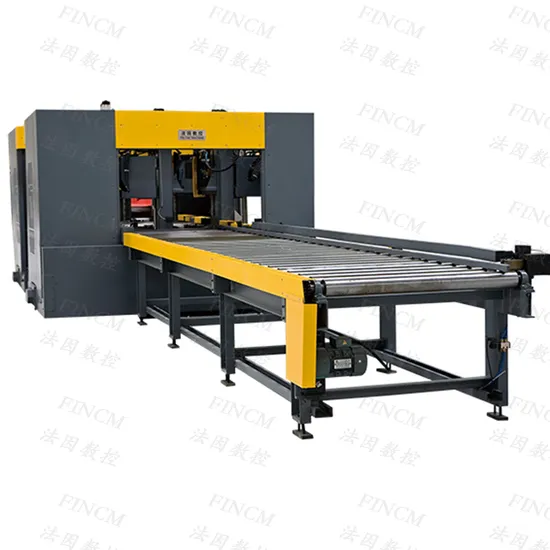

BM38/12 FINCM Steel Structure Beam Metal CNC Vertical Gantry Milling Machine
This machine tool is mainly used for milling grooves, milling end faces and web milling arc grooves of H-shaped steel end wing plates in steel structure industries such as construction, bridges, and municipal administration.
Equipment advantages:
1. The CNC longitudinal sliding table is used to process the locking of the inclined H-shaped steel at one time.
2. The machine tool has an automatic setting function, which can automatically change the amount of milling, which greatly improves productivity.
3. It adopts frequency conversion roller table to feed, which can be stably conveyed.
4. The scale of the conical milling cutter can be adjusted according to the cutting depth of the milling head, and the groove amount can be aligned to obtain the required groove size.
5. Cemented carbide indexable milling cutters are used for the processing of grooves, milling end faces and arc grooves.
6. The use of programmable controllers, touch screens and other electrical components, and the mechanical transmission uses high-precision mechanical components such as ball screws and linear rolling guides to improve positioning accuracy and extend the service life of the machine tool.
7. The feeding channel, main machine, and discharging channel form an automatic line, which can automatically and continuously mill the H-shaped steel of the same model.

Detailed Photos
Main Outsourcing Parts Catalog:

Number	Name	Brand	Country
1	Linear slide	HIWIN/CSK	Taiwan, China
2	Pneumatic solenoid valve	Airtac	Taiwan, China
3	Filter regulator	Airtac	Taiwan, China
4	touch screen	Screen pass	Taiwan, China
5	programmable control	Mitsubishi	Japan

Note: The above supporting manufacturers are all designated suppliers of our company. In case of failure to supply under special circumstances, products of the same level will be used instead, but the quality standards shall not be lower than the products supplied by the above suppliers.
Random accessories, spare parts list:

Number	Code	Name	Quantity	Remarks
1	BM38.3-3	set screw	6
2	BM38.3-55	wrench	2
3	BM38.3-56	handle	2
4	BM38.3-57	Washer	16	Including the one installed on the machine
5		Round nut wrench	1
6		Paint (with curing agent)	2small buckets
7	BM38.3-1	Cylindrical milling cutter	2 pieces left-handed Right-handed 2 pieces	All the milling cutters included in the contract are installed on the machine and shipped with spare 50% blades
8	BM38.3-5	Arc milling cutter	2 pieces left-handed Right-handed 2 pieces	All the milling cutters included in the contract are installed on the machine and shipped with spare 50% blades.
9	BM38.3-10B	Conical milling cutter	2 pieces left-handed Right-handed 2 pieces	All the milling cutters included in the contract are installed on the machine and shipped with spare 50% blades.
10		Blade fastening screws	8 of each type	Where a milling cutter is included in the contract
11		Blade fastening handles	each with 2 sets	Where the contract includes a milling cutter
12	JB/GQ0341-89	Pipe joint12.5	2
13	ZBJ51002-87	Throat clamp 25	2
14	BM38.4-7a	Bead	4
15	BM38.4-7b	Layering	4
16	BM38.4-11a	Bead	4
17	BM38.4-11b	Layering	4

Other Products

Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
