Medical Standard SSS Nonwoven Fabric Making Machine/ Nonwoven Fabric Production Line

Product Description

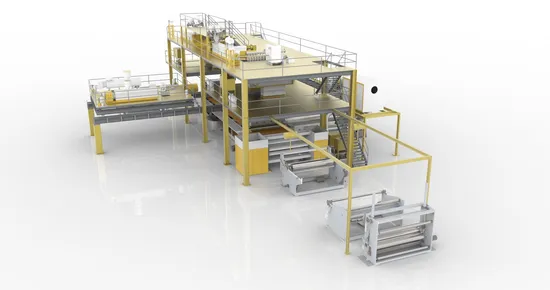

Medical Standard SSS Nonwoven Fabric Making Machine/ Nonwoven Fabric Production Line
Product Description
Three beams nonwoven machine is also short for SSS. Three beams form one web by spun bonding. The spunbond nonwoven is generated by extruding a thermoplastic fiber polymer into fine filaments fiber. The size arranges from fifteen to thirty-five micrometer diameter. The filaments are collected on a conveyer belt in the form of a web. Then it is bonded to make spunbond nonwoven fabric. The nonwoven fabrics possess properties of excellent burst strengths, stability to heat & chemicals, porosity and tear strength.
SSS Nonwoven Fabric Application SSS nonwoven fabrics are commonly used in healthy products such as baby diaper, sanitary napkin, face mask. It's also workable for material of garments and shoes such as clothes interlining and shoe cover.

Model No.	SSS-1600	SSS-2400	SSS-3200
Machine Size	L31*W13*H10m	L32*W14*H10m	L34*W15*H10m
Machine Speed	450m/min	450m/min	450m/min
Gram Weight	10-150 GSM	10-150 GSM	10-150 GSM
Daily Output	12 tons	24 tons	28 tons
Nonwoven Width	1600 mm	2400 mm	3200 mm

S Model ( Packagings, Agricultural Cover )

Working Width	Fabric GSM	Consumption	Annual Output/Year
1600mm	10-200	130KW	1500T
2400mm	10-200	180KW	2400T
3200mm	10-200	200KW	3000T
4200mm	10-200	300KW	3800T

SS Model ( Baby Diaper, Medical Products )

Working Width	Fabric GSM	Consumption	Annual Output/Year
1600mm	10-200	200KW	3000T
2400mm	10-200	250KW	4800T
3200mm	10-250	300KW	6000T
4200mm	10-200	450KW	7500T

SMS/SMMS/SSMS/SSMMS Model ( Filtration Material, Baby Diaper, Medical Products )

Working Width	Fabric GSM	Consumption	Annual Output/Year
1600mm	10-150	400KW	3500T
2400mm	10-150	600KW	5000T
3200mm	10-150	800KW	6500T

Installation Instructions
Working Process of PP Spunbond Nonwoven Fabric Making Machine.
Additive (recycling waste )----->Raw material----> Melting and Extruding----->Filtering----> Measuring----> Spinning ----> Cooling-----> Air drawing----->Web forming ----> Calendering---->rolling up----> cutting and packing
Company Profile
Application


FAQ
1. Are you factory or trading company?
We are factory with export rights. We manufacture machines and export to customers by ourself.
2. Which payment term is accepted?
30% in advanced payment+70% payment paid before shipment.
Welcome your inspection before shipment.
3. How to visit your factory?
Our factory is in yiwu city, Zhejiang Province, about two hour by train from Shanghai. Welcome to visit us!
