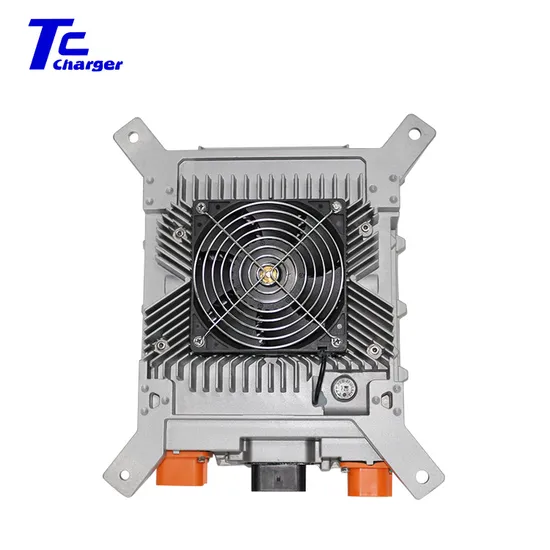

Tc Charger 6.6kw Obc on Board Charger with Waterproof for EV Charger HK-Lf-144-46
Basic Info.
Model NO.
HK-LF-144-46
Usage
Electric Vehicle
Interface
Other
Color
Silver
Input Voltage
AC90V~264V
Product Name
on Board Charger
Frequency
45Hz~65Hz
Mechanical Impact and Vibration Grade
QC/T 895-2011
Protection Grade
IP67
Type of Cooling
Enforce Air Cooling
Output Voltage
144V
Output Voltage Range
95~202V
Output Current
46A
Output Power
6600W@220VAC 3300W@110VAC
Baud Rates
250K or 500K
Transport Package
Carton
Specification
198(length) x 244(width) x 95(height)(fan-cooled)
Trademark
TC charger
Origin
China
Production Capacity
1000PCS/Month
Packaging & Delivery
Package Size
198.00cm * 244.00cm * 95.00cm
Package Gross Weight
5.500kg
Product Description
Product Description| Basic Specification | Protection grade | IP67 | |
| Input voltage range | AC90V~264V | Operation temperature | - 40ºC~85ºC |
| Input current | 32A | Storage temperature | - 40ºC~105ºC |
| Frequency | 45Hz~65Hz | Charging control | CAN or Enable |
| Power factor | ≥0.99 | Size | 198(length) x 244(width) x 95(height)(fan-cooled) |
| Efficiency at full-loading | ≥93% | Protection | Output over-voltage, over-current, short-circuit, polarity reverse, input low-voltage, input over-voltage, over-temperature |
| Mechanical impact and vibration grade | QC/T 895-2011 | Cooling way | Enforce Air Cooling, liquid-cooling |
Accessories
Product Parameters
| OBC 6.6KW | ||||||||
| Model | Type of cooling | Output voltage | Output voltage range | Output Current | Output power | Net Weight (kgs) | Gross Weight (kgs) | Dimension (CM) |
| HK-LF-108-64 | Enforce Air Cooling | 108V | 70~177V | 64A | 6600W@220VAC 3300W@110VAC | 7.6 | 8.6 | 39.5*33.5*18.5 |
| HK-LF-144-46 | Enforce Air Cooling | 144V | 95~202V | 46A | 6600W@220VAC 3300W@110VAC | 7.6 | 8.6 | 39.5*33.5*18.5 |
| HK-LF-312-20 | Enforce Air Cooling | 312V | 200~450V | 20A | 6600W@220VAC 3300W@110VAC | 7.6 | 8.6 | 39.5*33.5*18.5 |
| HK-LF-540-12 | Enforce Air Cooling | 540V | 400~680V | 12A | 6600W@220VAC 3300W@110VAC | 7.6 | 8.6 | 39.5*33.5*18.5 |
